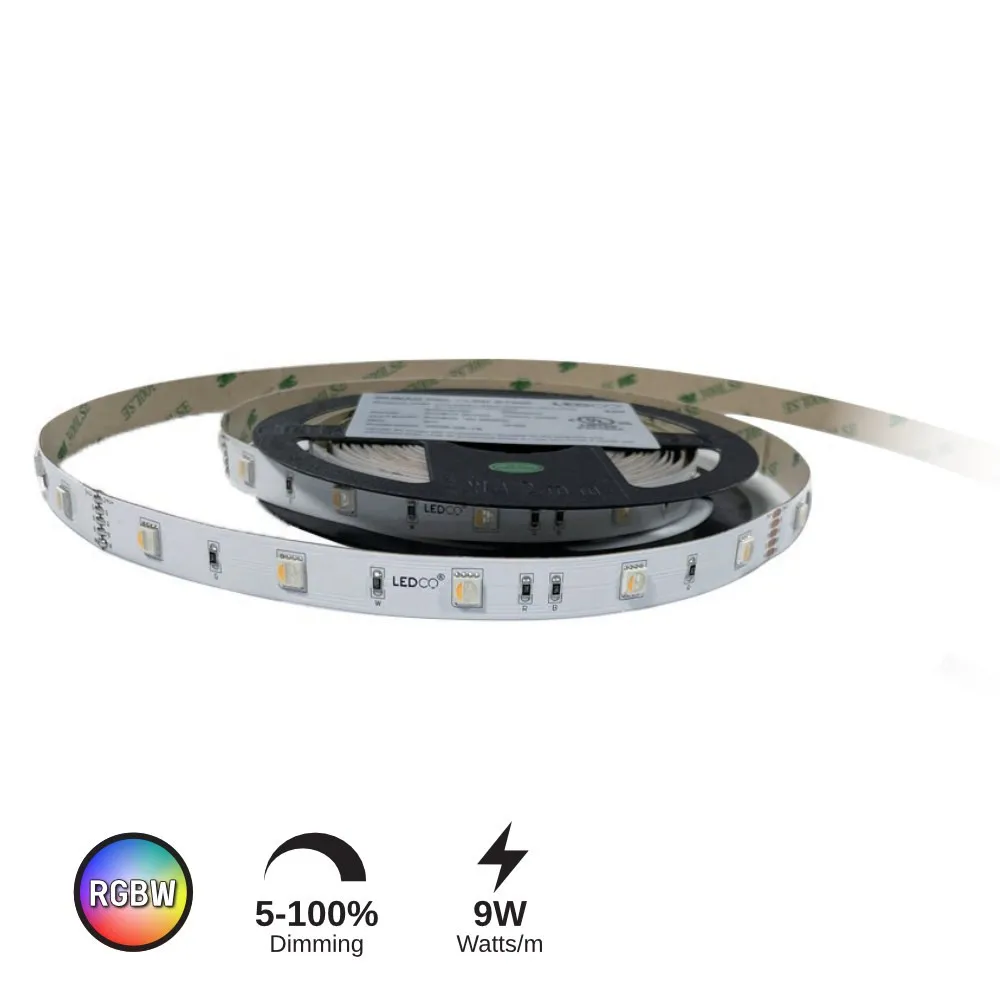

LED STRIP 9W/M (RGB-W)

Name: LED STRIP 9W/M (RGB-W)
Brand: LEDCO
SKU: LCLS24V-9W-RGBW-30K-IP22
Price: 64.97 CAD
Availability: InStock

SKU: LCLS24V-9W-RGBW-30K-IP22

Brand: LEDCO

Colour on demand, warm white when you want it simple: this RGBW LED strip gives you both in a single 10 mm ribbon. Known to shoppers as LED strip lights, LED light strips, strip lighting or simply LED tape, this 24V DC model (SKU LCLS24V-9W-RGBW-30K-IP22) combines red, green and blue chips with a dedicated 3000K warm white chip, so one run can glow soft white for everyday living and switch to full colour for a party, a holiday, a storefront display or a game night. It ships on a 5 m reel and cuts every 100 mm, which makes it just as easy to light a short bathroom niche as a long hallway cove.

Each metre draws 9W/M with a 30 LEDs/m density for smooth, even light, a 120º beam angle that spreads instead of spotting, and a CRI of 80+ so wood, paint and fabrics keep their true tone. The 2oz density white PCB helps with heat and keeps the strip discreet against light surfaces, while the IP22 rating makes it a dry indoor product. It runs on 24V DC constant voltage, works from -25°C to 60°C, and is dimmable through DMX, PWM, RF PWM, 0-10V and MLV incandescent controls. It is UL listed and rated for a 50 000+ hour lifespan, with 3M double-sided tape for mounting on non-porous surfaces.

Put it under kitchen cabinets, inside a ceiling cove, along a staircase, behind a TV wall, in display cases, bars, salons, restaurants and retail counters — anywhere a Canadian renovation or commercial fit-out needs both cosy warm white and changeable colour. Pair it with a 24V DC power supply sized for your total run, a compatible RGBW controller and an aluminum channel with diffuser for a finished look. If you only need fixed white, see the LED strip 24V 4.8W/m 3000K IP22 or the brighter LED strip 20W/m CCT; for colour only, the LED strip 14.4W/m RGB IP22 is the match. Order your reel and start shaping the mood.

Built to disappear into the design
This LED tape light is only 10 mm wide, so it slips into shallow coves, cabinet valances, niches and aluminum extrusions without being seen. The board is a 2oz density white PCB, a heavier copper build that helps move heat away from the diodes and blends into white or pale surfaces. Cut marks are placed every 100 mm along the 5 m reel, and 3M double-sided tape on the back lets you mount directly onto clean, non-porous surfaces such as aluminum channel, melamine, glass-smooth MDF or metal.

RGBW light quality
RGBW means four chips per group: red, green and blue for saturated colour, plus a dedicated 3000K warm white chip for real, comfortable white light instead of a washed-out mix. With 30 LEDs per metre and a 120º beam angle, the output spreads wide and reads as a line of light rather than a row of dots once you add a diffuser. A CRI of 80+ keeps skin tones, cabinetry and merchandise looking natural in white mode.

Technical specifications
Product code: LCLS24V-9W-RGBW-30K-IP22
Voltage: 24V DC
Control method: constant voltage
Power consumption: 9W/M
LED density: 30 LEDs/m
Colour: RGBW-30K (3000K white)
CRI: 80+
Beam angle: 120º
Segment width: 10 mm
Board: 2oz density, white PCB
Reel length: 5 m
Cuttable segments: 100 mm
Protection rating: IP22
Operating temperature: -25°C to 60°C
Dimming: DMX, PWM, RF PWM, 0-10V, MLV incandescent
Mounting: 3M double-sided tape (non-porous surfaces)
UL: Yes
Lifespan: 50 000+ hours

Wiring and installation
The strip is a constant voltage 24V product: feed it from a 24V DC driver sized for the total wattage of your run, at 9W per metre, plus headroom. The spec sheet includes a connection guide that strongly recommends parallel connections rather than chaining runs end to end — going past the recommended length makes the far end dim and damages the strip over time, so bring separate feeds back to the supply for long installations. Solder or use RGBW connectors that respect the +24V, R, G, B and W pads, keep polarity consistent, and always test a section before closing up millwork. Because the IP22 rating is for dry indoor locations, keep it out of showers, soffits and exterior applications.

Where it works and what to pair it with
Think kitchen under-cabinet and toe-kick lighting, ceiling coves in a living room or master bedroom, stair nosings, headboards, home theatre backlighting, reception desks, bar fronts, display cabinets in a boutique, or accent lines in a restaurant or salon. It also handles seasonal colour for storefronts without a second fixture. Match it with a compatible RGBW controller and a 0-10V or DMX system if the space is already on a control protocol. Need a plain white line instead? Compare the LED strip 4.8W/m 3000K IP22, the LED strip 17W/m dim to warm, or stay in colour with the LED strip 14.4W/m RGB IP22. The full spec sheet, including dimensions and the parallel connection guide, is in the Documentation tab.
