LED STRIP 9.6W/M - LCLS24V-48W-30K-IP22-30M

Name: LED STRIP 9.6W/M - LCLS24V-48W-30K-IP22-30M
Brand: LEDCO
SKU: LCLS24V-48W-30K-IP22-30M
Price: 403.97 CAD
Availability: InStock

SKU: LCLS24V-48W-30K-IP22-30M

Brand: LEDCO

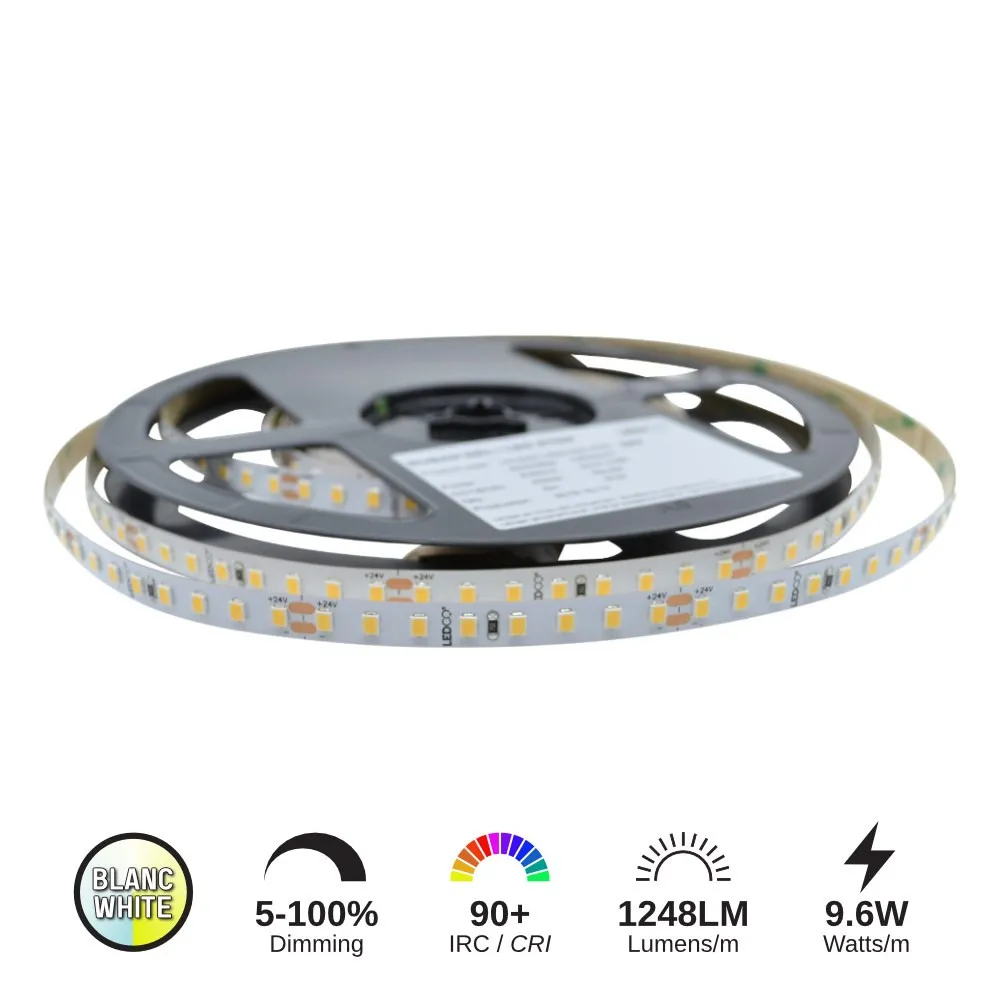

Some rooms only need one thing to feel finished: a clean, continuous line of light. That is exactly what this LED strip delivers. Known on job sites and in search bars as LED strip lighting, LED light strips, LED tape or simply strip lights, this 24V DC flexible ribbon hides under cabinets, inside coves, along stair nosings and behind headboards, then quietly washes the surface in warm, even light. It is the go-to solution for indoor LED lighting in kitchens, closets, display cases, reception desks, hallways and LED ceiling strip details — anywhere you want the glow without seeing the fixture. Sold on a 30 m roll, it gives you enough material to run a whole floor, a full millwork package or several rooms from a single order.

Under the silicone-free IP22 coating you get Epistar 2835 SMD chips — 128 LEDs per meter, so the dots blend into a smooth line instead of a row of hot spots. It draws 9.6 W per meter (±10%) at an efficiency of 130 lm/W, runs on 24V DC, and spreads light over a 120º beam angle. The CRI 90+ rendering makes wood grain, countertops, skin tones and merchandise look true, and the 3000K colour temperature keeps everything warm and welcoming. It is dimmable, UL listed, rated IP22 for dry and protected indoor locations, and built on an 8 mm PCB with 3 oz copper for better heat management and a lifespan of 50 000+ hours. Maximum run is 10 m per feed, and you can cut it every 62.5 mm (every 8 LEDs).

Homeowners use SKU LCLS24V-48W-30K-IP22-30M for under-cabinet and toe-kick lighting, cove lighting in living rooms and basement ceilings, closets, pantries and bathroom vanities. Contractors and small businesses run it in retail shelving, bakery and boutique displays, restaurant banquettes, office reception walls and hotel corridors. Need the same strip in another white? Compare LED strip 24V 9.6W/m IP22 2700K, LED strip 24V 9.6W/m IP22 4000K or the damp-rated LED strip 9.6W/m 24V 48W 30K IP66. Roll it out, power it up, and give your project that finished, built-in look.

Built for clean, continuous lines
This flexible LED tape is built on an 8 mm wide PCB with a 3 oz copper thickness, a detail that matters more than most people realize: heavier copper carries current with less voltage drop and pulls heat away from the diodes, which protects both brightness and colour over time. The Epistar 2835 SMD chips are placed at 128 pcs per meter, a tight spacing that softens the dotting effect in coves, under cabinets and behind diffusers. The roll is 30 m long and can be cut every 62.5 mm (every 8 LEDs) at the marked cut lines, so you can size each run to the exact cabinet, shelf or ceiling detail without waste.

Light quality you can see
With a CRI of 90+, this strip renders colour honestly — white quartz stays white, oak stays warm, fabrics and packaging keep their real tone. That makes it a strong choice for kitchens, closets, bathrooms and any retail or gallery display where merchandise has to look right. The 3000K colour temperature is the classic warm white Canadians ask for in homes, restaurants and hospitality projects, while the 120º beam angle spreads light wide and evenly across the surface just above or beside it. Efficiency comes in at 130 lm/W for a draw of 9.6 W per meter, so you get a generous, usable output for very little energy — a fraction of what halogen or incandescent accent lighting used to consume.

Technical specifications
Product code: LCLS24V-48W-30K-IP22-30M
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 9.6 W/m ±10%
Efficacy: 130 lm/W
CRI: 90+
Colour temperature: 3000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8 mm
PCB thickness: 3 oz
Maximum run length: 10 m
Cut size: 62.5 mm (8 LEDs)
Protection rating: IP22
Certification: UL
Lifespan: 50 000+ hours

Wiring, dimming and installation
The strip runs on 24V DC, which means it needs a low-voltage driver or power supply sized to your total load — multiply 9.6 W by the number of meters in the run and keep headroom. Respect the 10 m maximum length per feed; for longer runs, bring power to the far end or split the installation into separate home runs to avoid visible fade at the end of the line. It is dimmable, so it can be paired with a compatible low-voltage dimming system for mood control in bedrooms, dining rooms and restaurant seating areas. The IP22 rating means dry, protected indoor locations only; for damp or splash-prone spots such as a shower niche or a covered exterior soffit, switch to the LED strip 9.6W/m 24V 48W 30K IP66 version. An aluminum extrusion with a diffuser lens is strongly recommended on open runs: it hides the diodes, adds heat sinking and gives a professional finished edge.

Applications, options and documentation
Concrete uses: under upper kitchen cabinets with the strip set toward the front edge of the cabinet, in a cove above crown moulding for indirect ceiling light, along basement stair stringers, inside bookcases and display cabinets, behind bathroom mirrors, under a reception counter or along a boutique's shelving. If you need less output for a shallow cove or a closet, look at the LED strip 24V 4.8W/m IP22 3000K; for a brighter wash, the LED strip 19.2W/m 24V 96W 30K IP66; for colour effects, the RGB LED strip 14.4W/m 24V 72W IP22. Cooler whites of this same strip are available in 3500K, 4000K and 5000K. The full technical spec sheet is available in the Documentation tab of this page for your submittals, plan sets and electrical estimates.
