LED STRIP 20W/M (CCT)

Name: LED STRIP 20W/M (CCT)
Brand: LEDCO
SKU: LCLS24V-100W-IP22-CCT-30M
Price: 586.97 CAD
Availability: InStock

SKU: LCLS24V-100W-IP22-CCT-30M

Brand: LEDCO

Some rooms need warm, cozy light at night and crisp, energizing light in the morning — and this is the tape that does both. This is a tunable white LED strip, also called LED strip lighting, LED light strips, LED tape or ribbon, built for people who want one continuous line of light that changes character on demand. Under kitchen cabinets, inside a cove or a ceiling recess, along a staircase, behind a bathroom mirror, in display cases or over a reception desk, it delivers a smooth, even wash instead of the dotted, patchy look cheaper tapes give you. It is the go-to choice for homeowners redoing a kitchen or basement, contractors building coves and drywall reveals, and small businesses that want their space to look expensive without a single visible fixture.

Power is a serious 20W/M, so this is a high-output tape, not a decorative accent — with 120 LM/W efficiency and 602pcs LEDs per meter, the light comes out as one solid line with no hot spots. The CRI 90+ rendering keeps wood grain, paint, skin tones and merchandise looking true, and the CCT chip set tunes between 3000K, 4000K and 5000K so one installation covers warm, neutral and cool white. It runs on 24V DC, is dimmable, spreads light at a 120º beam angle, and carries an IP22 protection rating for indoor use. The PCB is 10mm wide with 3oz. copper for better heat management, cuts every 50mm, runs up to 10m maximum per run, is UL listed and rated for 50 000+ hours.

From a Montréal condo kitchen to a clinic reception in Calgary, tunable white earns its place anywhere people spend long hours: cabinets, closets, coves, bars, retail shelving, offices and basement ceilings. SKU LCLS24V-100W-IP22-CCT-30M shares the same 24V platform as the rest of the family, so you can mix it with the LED strip 24V 2835 4.8W/M IP22 3000K for soft accents, the LED strip 17W/M 24V dim to warm for living areas, or the LED strip 14.4W/M 24V RGB IP22 for colour. Ready to light your project the right way? Add it to your order today.

Built to light long, clean lines

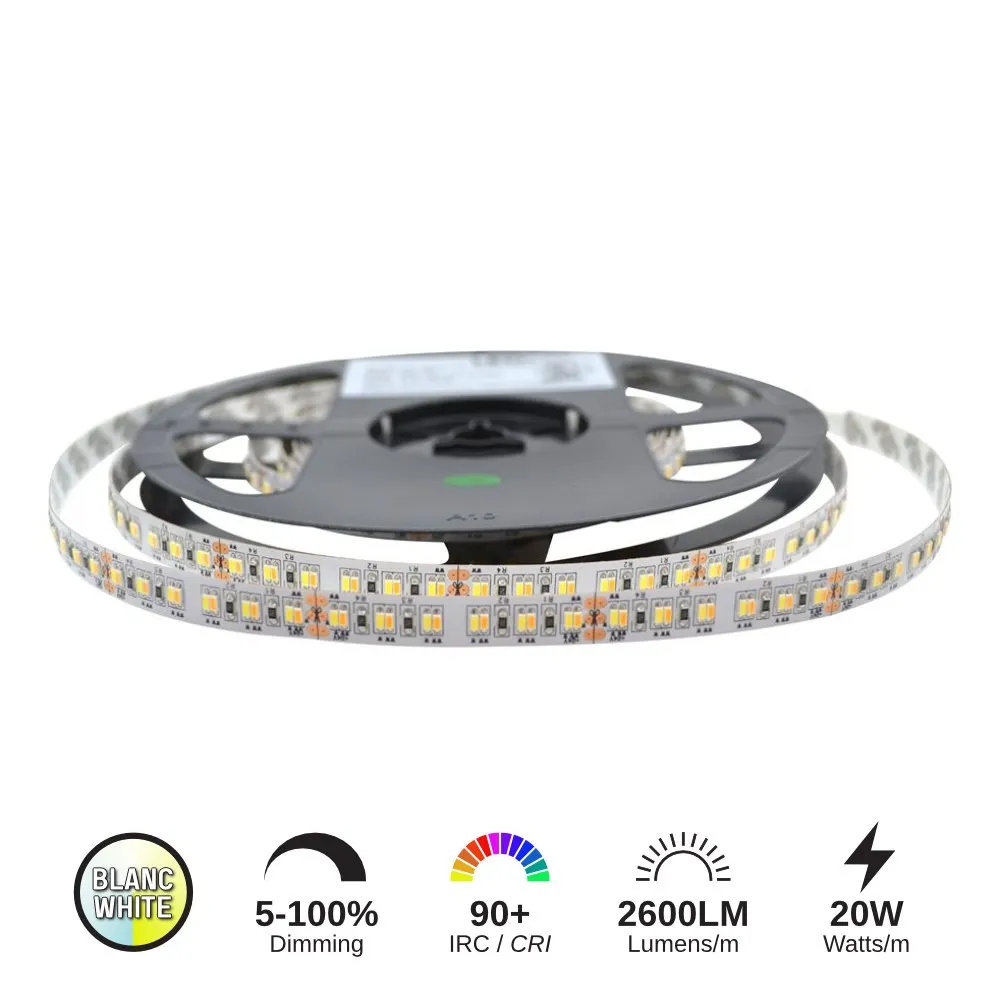

This tape uses a dense array of 602pcs LEDs per meter on a 10mm wide printed circuit board, which is what gives you that unbroken ribbon of light instead of visible dots. The 3oz. copper PCB matters more than most buyers realize: thicker copper pulls heat away from the diodes, which protects both colour stability and the rated 50 000+ hours of life. At 20W/M this is one of the higher-output LED strip lighting options in the family, so it can throw usable light up a wall or across a ceiling from a cove, not just glow decoratively. Cut marks are spaced every 50mm so you can size runs to real cabinets, shelves and reveals.

Light quality and tunable white
The CCT chip set lets you tune between 3000K, 4000K and 5000K on the same run — warm for evenings, neutral for everyday, cool for task work and detail. Combined with CRI 90+, colours stay honest: white cabinets read white, not yellow or grey, and merchandise, food and finishes look the way they should. Efficiency sits at 120 LM/W, and the 120º beam angle spreads light wide, which is exactly what you want in a cove or under a cabinet where the tape sits close to the surface it lights.

Technical specifications
Product code: LCLS24V-100W-IP22-CCT-30M
Power: 20W/M ±10%
Efficacy: 120 LM/W
LEDs per meter: 602pcs
CRI: 90+
Colour temperatures: 3000K / 4000K / 5000K (CCT)
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 10mm
PCB thickness: 3oz.
Max length: 10m
Cut size: 50mm
Protection rating: IP22
Certification: UL
Lifespan: 50 000+ hours

Electrical and installation notes
This is a 24V DC tape, so it needs a matching low-voltage driver or power supply sized for the total wattage of your run, plus a tunable white controller to shift between the three colour temperatures. Respect the 10m maximum run length and feed longer installations from both ends or in separate runs to keep brightness even end to end. The strip is dimmable, so pair it with a compatible low-voltage dimming system when you want mood control. Cut only on the marked 50mm points, mount on a clean, dry surface, and use an aluminum extrusion wherever the tape sits against wood or drywall — the channel spreads heat and the diffuser hides the diodes. With its IP22 rating this is an indoor product: keep it out of showers, soffits and anywhere exposed to weather.

Applications, compatibility and documents
Think kitchen under-cabinet and toe-kick lighting, bathroom vanity and mirror backlighting, ceiling coves in a living room or basement, stair nosings, closet shelving, bar fronts, retail displays, office reception walls and hallway accents. Because everything here runs on the same 24V platform, you can plan a whole project around one driver family and mix tapes room by room: LED strip 20W/M 24V 100W IP22 CCT for other tunable white runs, LED strip 19.2W/M 24V 96W 3000K IP66 when a section needs a higher IP66 rating, or LED strip 9.6W/M 24V 48W 3000K IP66 for softer fixed-white accents. The full technical PDF spec sheet is in the Documentation tab — download it for your electrician, your designer or your permit file before you order.
