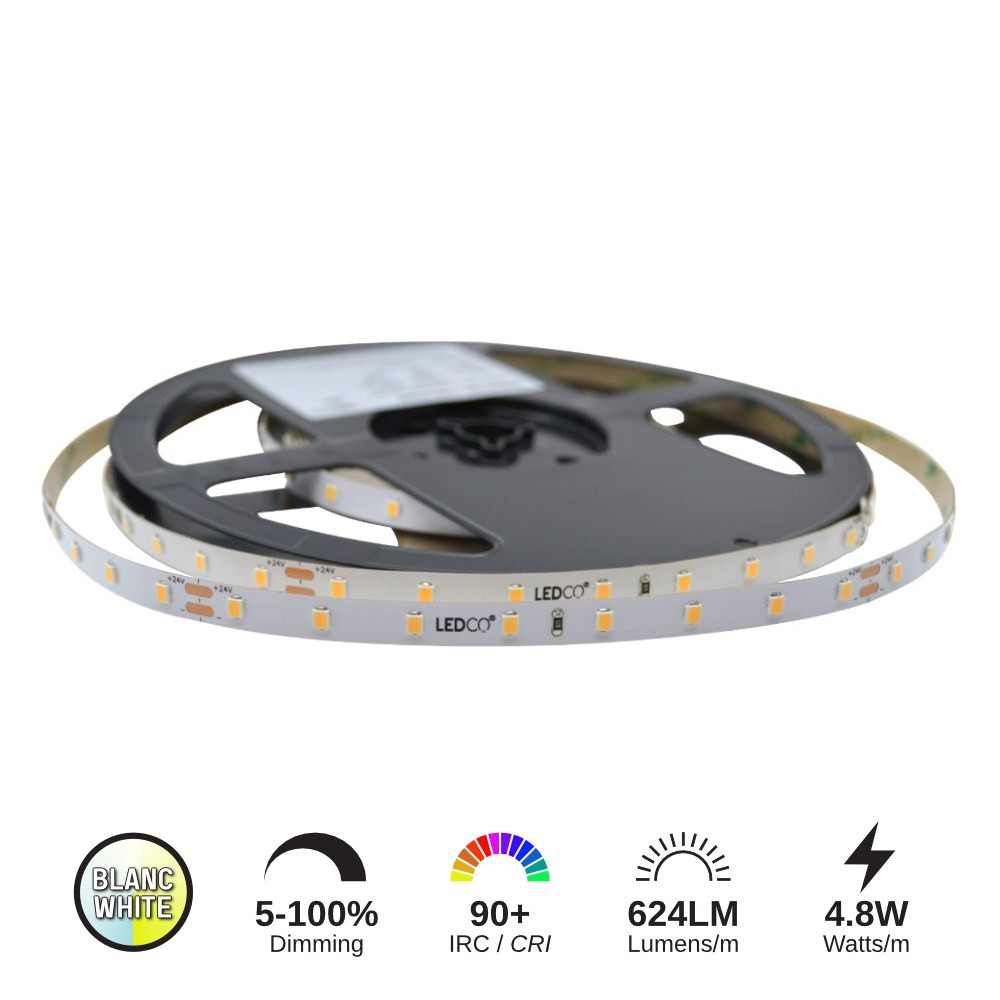

LED STRIP 4.8W/M - LCLS24V-24W-30K-IP66-30M

Name: LED STRIP 4.8W/M - LCLS24V-24W-30K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-24W-30K-IP66-30M
Price: 471.97 CAD
Availability: InStock

SKU: LCLS24V-24W-30K-IP66-30M

Brand: LEDCO

Soft, continuous light exactly where you want it: this LED strip (SKU LCLS24V-24W-30K-IP66-30M) is the flexible ribbon that turns coves, cabinets, stairs and shelves into architectural light. Whether you call them led strip lights, led light strips, LED tape or led lighting strips, the idea is the same: a slim 8 mm circuit board loaded with tiny diodes that you run, cut and hide along any line in a room. It replaces bulky fluorescent tubes under cabinets, fills ceiling coves with a glow that has no visible source, outlines a headboard or a reception desk, and gives closets, pantries and display cases the kind of even wash that spot fixtures can never deliver. Homeowners use it for kitchens and basements, contractors use it for millwork and drywall coves, and small businesses use it to make products, bars and backlit signage look their best.

The numbers behind the glow: 4.8 W/m at 24V DC, with 64 LEDs per meter using Epistar 3528 SMD chips and an efficiency of 130 LM/W. Colour is a warm, inviting 3000K, and the CRI 90+ rendering keeps wood grain, paint, skin tones and merchandise looking true instead of washed out. The 120º beam angle spreads light smoothly across a surface, the 8 mm PCB with 3 oz copper handles heat and voltage drop like a professional product should, and the strip is dimmable for anything from full task light to a late-evening glow. It is UL listed, rated for 50 000+ hours of life, can be cut every 125 mm (8 LEDs) and installed in runs up to a 10 m maximum length.

This indoor led lighting workhorse shines under kitchen uppers, above crown moulding, in tray ceilings, along staircases, inside bookcases and retail display units, in hotel corridors, salons, restaurants and offices across Canada — anywhere you want light without seeing the fixture. Pair it with an aluminum channel and diffuser for a clean finished line, and remember it needs a 24V DC driver sized to your total run. Prefer a different white? The same platform is offered in LED strip 24V 2835 4.8W/m IP22 2700K, 4000K and 5000K, or step up in output with the LED strip 9.6W/m 24V 48W 30K IP66. Measure your run, add it to your project and light the line.

Built to be hidden, built to last
This LED tape light is a flexible circuit board just 8 mm wide, thin enough to disappear inside a cove, a millwork reveal or a slim aluminum extrusion. It carries 64 LEDs per meter of Epistar 3528 SMD chips on a 3 oz copper PCB — heavier copper means better heat transfer and steadier performance over long runs, which is exactly what you want when a strip is buried behind a drywall detail and rarely touched again. Rated for 50 000+ hours, it is a set-and-forget light source for both residential and commercial projects.

Light quality you can see
At 3000K, the light is warm white — friendly in a kitchen, flattering in a bedroom, appetizing over a bar. What really separates this led strip lighting from generic tape is the CRI 90+ colour rendering: reds stay red, oak stays oak, and merchandise on a shelf looks like it does in daylight. Efficiency sits at 130 LM/W, and the 120º beam angle spreads the output wide so a diffuser turns 64 individual points into one clean line of light instead of a row of dots.

Technical specifications
SKU: LCLS24V-24W-30K-IP66-30M
Chip: Epistar 3528 SMD
LEDs per meter: 64 pcs
Power: 4.8W/M (±10%)
Efficacy: 130 LM/W
CRI: 90+
Colour temperature: 3000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8mm
PCB thickness: 3oz.
Max length: 10m
Cut size: 125mm (8 LED)
UL: Yes
Lifespan: 50 000+ hours

Wiring, cutting and dimming
The strip runs on 24V DC, so it must be fed by a low-voltage LED driver sized for your total wattage — count 4.8 W for every meter installed, then leave headroom on the driver. Respect the 10 m maximum run per feed; longer installations are simply split into several runs fed from the same power source to avoid voltage drop at the far end. Cut only on the marked 125 mm (8 LED) increments, keep the polarity straight when you solder or use a connector, and clean the surface before pressing the tape down so the adhesive grabs. Because the strip is dimmable, you can put it on a compatible low-voltage dimming control for full-bright task lighting in the evening and a soft ambient level after hours.

Where it works, and what goes with it
Think under-cabinet lighting in a kitchen, toe-kick and vanity glow in a bathroom, cove lighting in a living room tray ceiling, stair nosing in a basement renovation, backlit shelving in a boutique, menu boards and back-bar displays in a restaurant, reception desks and corridor coves in an office or clinic. An aluminum profile with a frosted lens is strongly recommended for any visible installation. Need another white point or more punch? Compare with the LED strip 24V 2835 4.8W/m IP22 3500K, the brighter LED strip 19.2W/m 24V 96W 30K IP66, or add colour with the LED strip 14.4W/m 24V 72W RGB IP66. The full technical PDF spec sheet is available in the Documentation tab for your submittals and electrical drawings.

Technical Files
