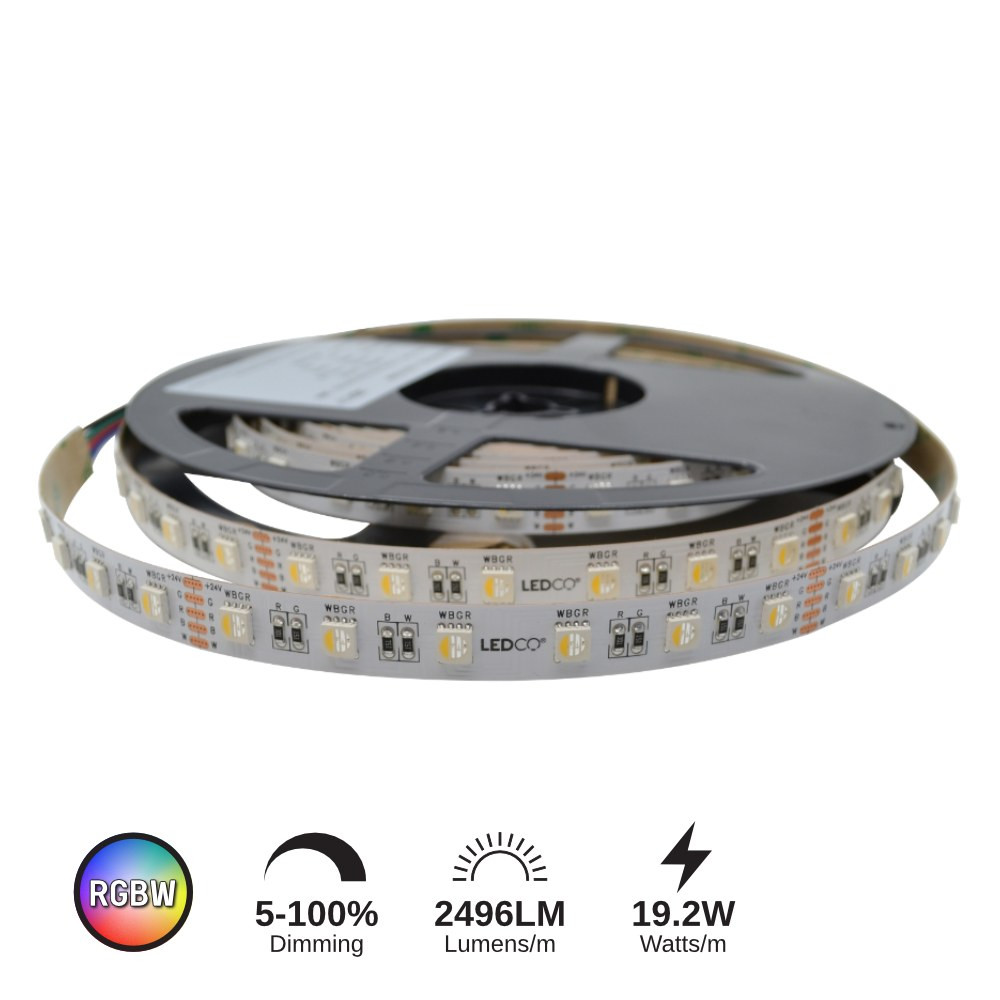

LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW35K-IP22-30M

Name: LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW35K-IP22-30M
Brand: LEDCO
SKU: LCLS24V-96W-RGBW35K-IP22-30M
Price: 586.97 CAD
Availability: InStock

SKU: LCLS24V-96W-RGBW35K-IP22-30M

Brand: LEDCO

Colour and comfort on the same reel: this RGBW LED strip gives you full-colour red, green and blue channels plus a dedicated 3500K white chip, so one run can go from a soft, natural white for everyday living to a saturated colour wash for a party, a logo wall or a game night. People shop for it as LED strip lights, LED light strips, LED strip lighting, LED lighting strips or simply strip lights — and it's the one to pick when a single-colour tape just isn't enough. Model LCLS24V-96W-RGBW35K-IP22-30M is designed for cove lighting, ceiling perimeters, under-cabinet and toe-kick runs, stair and hallway accents, bars, display cases, headboards, home theatres and retail feature walls — anywhere you want LED ceiling strip lights that do white light properly and colour beautifully.

The real numbers behind it: 19.2W per metre on 24V DC, with a dense 120 LEDs per metre for a smooth, even line instead of a row of dots. The CRI 90+ white channel at 3500K keeps wood, skin tones and finishes looking true, while the 120º beam angle spreads light wide across a cove or a shelf. The strip is built on a 2 oz density white PCB, measures 12 mm wide, is cuttable every 50 mm and mounts to non-porous surfaces with the factory-applied 3M double-sided tape. It is IP22 rated for indoor use, operates from -25°C to 60°C, is UL listed and rated for 50 000+ hours of life. Dimming is flexible: DMX, PWM, RF PWM, 0-10V and MLV incandescent controls are all supported.

It shines in kitchens and basements being renovated, in condo ceiling coves, restaurants, salons, boutiques, hotel lobbies, offices and esports rooms — and because Canadian rooms live under artificial light half the year, that 3500K white channel earns its keep long after the colour show is over. Reels are 5 m each and this configuration is supplied as a 30 m order; use parallel or middle connections rather than one endless run, and pair it with an aluminium channel for a clean finished edge. Need a single-colour companion run? Look at the LED strip 19.2W/m 24V 96W 30K IP66 or the LED strip 14.4W/m 24V 72W RGB IP22. Map your run, pick your controller and let's get the colour flowing.

Built for smooth, continuous light
This RGBW LED tape packs 120 LEDs per metre onto a 12 mm wide, 2 oz density white PCB. That copper weight matters: it spreads heat better and helps keep colour and output stable over long runs, which is exactly what you want in a cove that will stay lit eight hours a day. Each 50 mm segment carries red, green, blue and white emitters together, so colour mixing happens close to the source and you get a blended wash rather than visible red-green-blue spotting. The strip arrives on 5 m reels with 3M double-sided tape already applied for mounting on clean, non-porous surfaces such as aluminium channel, painted MDF, glass or finished millwork.

Light quality you can trust
The dedicated white channel is 3500K — a neutral, friendly white that flatters wood, stone and paint without going yellow or clinical — and it delivers CRI 90+, so merchandise, food and finishes look the way they should. The 120º beam angle means the light opens up quickly, filling a cove or a shelf without hot spots. Because the white chip is separate from the RGB chips, you can run pure white for daily use, pure colour for effect, or mix both for pastel and tinted washes that a plain RGB strip simply can't produce.

Technical specifications
SKU: LCLS24V-96W-RGBW35K-IP22-30M
Power consumption: 19.2W/M
Voltage: 24V DC
LED density: 120 LEDs/m
CRI: 90+
Colour temperature (white channel): 3500K
Beam angle: 120º
Segment width: 12 mm
Cuttable segments: 50 mm
Reel length: 5 m
Board type: 2 oz density, white PCB
Protection rating: IP22
Operating temperature: -25°C to 60°C
Dimming: DMX, PWM, RF PWM, 0-10V, MLV incandescent
Mounting: 3M double-sided tape (non-porous surfaces)
UL: Yes
Lifespan: 50 000+ hours

Wiring, control and installation
Run it on a 24V DC supply sized for the load, remembering the draw is 19.2W per metre before any losses, and always leave headroom on the driver. The spec sheet includes a connection guide: parallel connections are strongly recommended, and a middle connection — feeding power into the centre of a longer line — keeps the far end from dimming and protects the strip over time. Do not exceed the recommended run length on a single feed. Cut only on the marked 50 mm points, solder or use proper connectors on the 24V+, R, G, B and W pads, and keep polarity consistent from segment to segment. Control is flexible: DMX for architectural and stage-style scenes, PWM or RF PWM for simple colour remotes and wall controllers, 0-10V or MLV incandescent dimming where the white channel is tied into a house dimming system. With an IP22 rating this is an indoor product — for splash-prone or outdoor locations, a waterproof IP66 version of the family is the right call.

Where it earns its place, and what pairs with it
Think ceiling coves in condos and basements, under-cabinet and island lighting in kitchens, bar fronts and back-bars, retail display cases and feature walls, home theatres, gaming rooms, hotel corridors, salons and reception desks. Mounted inside an aluminium extrusion with a diffuser, it reads as a clean line of light rather than individual diodes. If part of your project only needs static white, the LED strip 19.2W/m 24V 96W 30K IP66 matches the same 19.2W/m output, the LED strip 20W/m 24V 100W IP22 CCT offers tunable white, and the LED strip 14.4W/m 24V 72W RGB IP22 covers colour-only zones. The full technical PDF (LCLS24V-96W-RGBW35K-IP22-30M Spec Sheet), including the parallel and middle connection diagrams, is in the Documentation tab.
