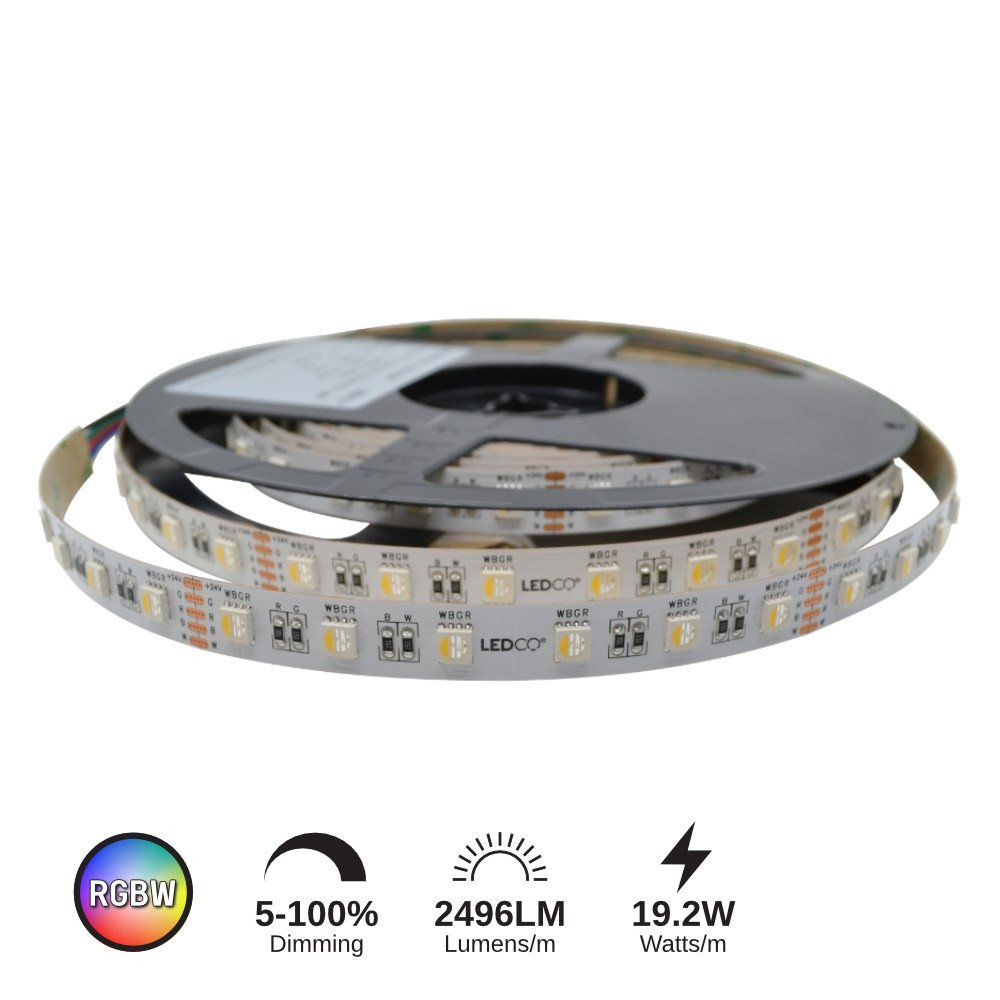

Built for clean, continuous lines of lightThis
RGBW LED tape puts four chips to work: red, green and blue for colour, plus a dedicated
3000K white LED so you never have to fake warm white by mixing colours. The result is a true, comfortable white for everyday use and saturated colour when you want it, on the same run. The strip is built on a
2 oz density white PCB that helps spread heat and reflect light, measures
12 mm wide, and packs
120 LEDs per metre for tight, even diode spacing — the key to avoiding the dotted "runway" look in coves and under cabinets.
Light quality that flatters the roomWith
CRI 90+ on the white channel, wood, stone, fabric and paint keep their real character — a big deal in kitchens, retail displays and bathrooms where colour accuracy sells the finish. The
120° beam angle washes surfaces evenly, so a strip tucked into a cove or a shelf lip gives you a soft, continuous glow rather than harsh streaks. Pair the tape with an aluminum channel and a frosted lens when the strip will be seen directly; the diffuser blends the diodes into one clean line and protects the tape from dust and knocks.
Technical specificationsSKU: LCLS24V-96W-RGBW30K-IP22-30M
Power consumption: 19.2W/M
Voltage: 24V DC
LED density: 120 LEDs/m
Colour: RGBW with 3000K white
CRI: 90+
Beam angle: 120º
Protection rating: IP22
Operating temperature: -25°C to 60°C
Segment width: 12 mm
Board type: 2 oz density, white PCB
Reel length: 5 m
Cuttable segments: 50 mm
Mounting: 3M double-sided tape (non-porous surfaces)
Dimming: DMX, PWM, RF PWM, 0-10V, MLV incandescent
Certification: UL
Lifespan: 50,000+ hours
Wiring, dimming and installationBecause it runs on
24V DC, this strip needs a low-voltage driver sized for the total load — count 19.2W for every metre installed, then add headroom. Control is where RGBW shines: the tape works with
DMX, PWM, RF PWM,
0-10V and MLV incandescent dimming, so it fits everything from a simple RF remote in a basement to a full DMX show in a restaurant or stage set. The spec sheet includes a
connection guide: parallel connections are strongly recommended, and you shouldn't exceed the recommended run length — past that point the strip dims at the far end and will be damaged over time. For one long unbroken line, use a middle connection (a parallel feed wired to the centre of the run) to keep brightness even end to end. Cut only on the marked
50 mm segments, clean the surface before applying the 3M tape, and mount on non-porous material for a lasting bond. Operating range is -25°C to 60°C, and the IP22 rating means indoor, dry locations only.
Applications, compatible products and documentationConcrete uses: a colour-shifting cove in a home theatre, warm 3000K under-cabinet light in the kitchen that turns to team colours on game night, backlit bar shelving, hotel corridor accents, retail window displays, gym feature walls and event booths. For wet or outdoor areas, switch to a sealed version like the
LED Strip 19.2W/M 24V 96W 30K IP66 or the RGB
LED Strip 14.4W/M 24V 72W RGB IP66. Staying indoors, the
LED Strip 14.4W/M 24V 72W RGB IP22 covers pure colour projects, while the
LED Strip 20W/M 24V 100W IP22 CCT is the choice when you want tunable white instead of colour. The full
technical spec sheet, including the parallel and middle connection guides, is in the Documentation tab.
