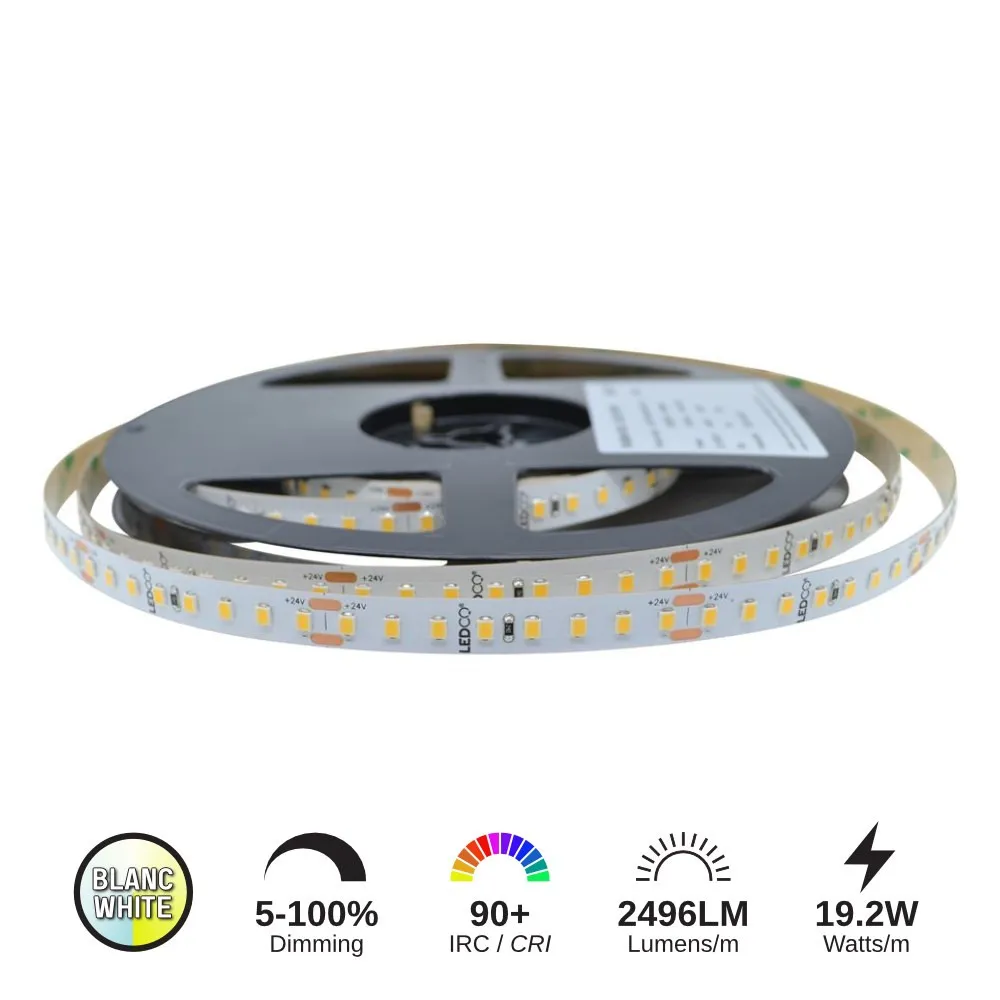

LED STRIP 19.2W/M - LCLS24V-96W-30K-IP22-30M

Name: LED STRIP 19.2W/M - LCLS24V-96W-30K-IP22-30M
Brand: LEDCO
SKU: LCLS24V-96W-30K-IP22-30M
Price: 522.97 CAD
Availability: InStock

SKU: LCLS24V-96W-30K-IP22-30M

Brand: LEDCO

Bright, even, flicker-free light exactly where you want it — that's what a good LED strip delivers, and this 24V high-output tape is one of the hardest-working LED strip lights you can put in a project. Call them LED light strips, LED tape, ribbon lighting or simply strip lights: this one is the 3000K warm white version, SKU LCLS24V-96W-30K-IP22-30M, supplied on a 30 m reel so you can run kitchen after kitchen, office after office, without splicing together short kits. It slips into cove details, under cabinets, over millwork, behind headboards, inside display cases and along ceiling coffers — anywhere you want a clean line of indoor LED lighting instead of a row of visible fixtures.

The numbers are serious. Each metre carries 128 pcs of Epistar 2835 SMD chips drawing 19.2W/M ±10% at 24V DC, with an efficacy of 120 LM/W and a wide 120º beam angle that blends into one smooth line of light rather than a string of dots. The CRI 90+ rendering keeps wood grain, paint colours, skin tones and merchandise looking true, while the 3000K colour temperature gives that warm, welcoming white Canadian homeowners ask for. It's fully dimmable, UL listed, rated IP22 for dry and protected indoor locations, and built on a 10 mm PCB with a generous 3 oz. copper thickness for better heat management and a rated lifespan of 50 000+ hours. Cut size is 62.5 mm (8 LEDS) and maximum run length is 10 m per feed.

This is the tape for kitchen toe-kicks and under-cabinet work light, bathroom vanities and mirrors, staircase and hallway coves, retail shelving, restaurant bars, reception desks, offices and basement renovations. Contractors keep the 30 m reel on the truck because one roll covers a full floor. Need the same output in another white? Compare the LED strip 24V 19.2W/M IP22 (27K), the LED strip 24V 19.2W/M IP22 (40K) or the LED strip 24V 19.2W/M IP22 (50K). For damp or splash-prone spots, the LED strip 19.2W/M 24V 96W 30K IP66 is the waterproof twin. Roll it out and light your project the right way.

Built for real installations
This LED tape is a 24V DC constant-voltage strip built on a 10 mm wide PCB with 3 oz. copper. That heavier copper matters on a high-output LED strip lighting run: it pulls heat away from the diodes, keeps colour stable over time and supports the rated 50 000+ hours of service. The emitters are Epistar 2835 SMD chips, 128 pcs per metre, which is what gives the strip its dense, continuous appearance instead of the dotted look of budget tape. The adhesive back lets you place it quickly, and the 62.5 mm (8 LEDS) cut marks let you trim runs to the exact length of a cabinet, a cove or a shelf.

Light quality you can see
With 120 LM/W efficacy and a 120º lighting angle, this strip washes surfaces evenly rather than throwing hot spots. The 3000K warm white is the go-to tone for kitchens, living spaces, hospitality and millwork accents, and the CRI 90+ rendering means whites stay clean, woods stay rich and products on a shelf look like they do in daylight. Because it is dimmable, you can run it bright for task work and take it down low for evening ambience — pair it with a compatible 24V dimming driver or a low-voltage dimming system to get the full range.

Technical specifications
Product code: LCLS24V-96W-30K-IP22-30M
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 19.2W/M ±10%
Efficacy: 120 LM/W
CRI: 90+
Colour temperature: 3000K
Lighting angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 10 mm
PCB thickness: 3 oz.
Max length: 10 m
Cut size: 62.5 mm (8 LEDS)
Protection rating: IP22
UL: Yes
Lifespan: 50 000+ hours

Wiring and installation
Respect the 10 m maximum run per feed: on a 19.2W/M strip, longer single runs cause voltage drop and visible dimming at the far end. For longer installations, feed from both ends or run home runs back to the driver. Size your 24V DC power supply on the total wattage of the strip you actually install, plus headroom, and keep the driver accessible for service. The IP22 rating means this version belongs in dry, protected indoor locations — inside cabinets, coves, soffits and display cases. Mounting the tape in an aluminum profile with a diffuser is strongly recommended for high-output runs: it spreads the light, hides the diodes and acts as a heat sink. Solder or use quality connectors at the cut points, and clean the surface before applying the adhesive.

Applications, options and documentation
Think under-cabinet and toe-kick lighting in a kitchen, vanity and mirror lighting in a bathroom, cove lighting in a living room ceiling, stair nosings, closet interiors, retail shelving and display cases, bar fronts, reception desks and office soffits — residential and commercial alike. Need a different look? The LED strip 24V 19.2W/M IP22 (35K) gives a neutral white, the LED strip 20W/M 24V 100W IP22 (CCT) lets you tune the colour temperature, and the LED strip 14.4W/M 24V 72W (RGB) IP22 adds colour. For a softer, lower-output line, see the LED strip 24V 4.8W/M IP22 (30K). The full technical PDF spec sheet for this product is available in the Documentation tab.
