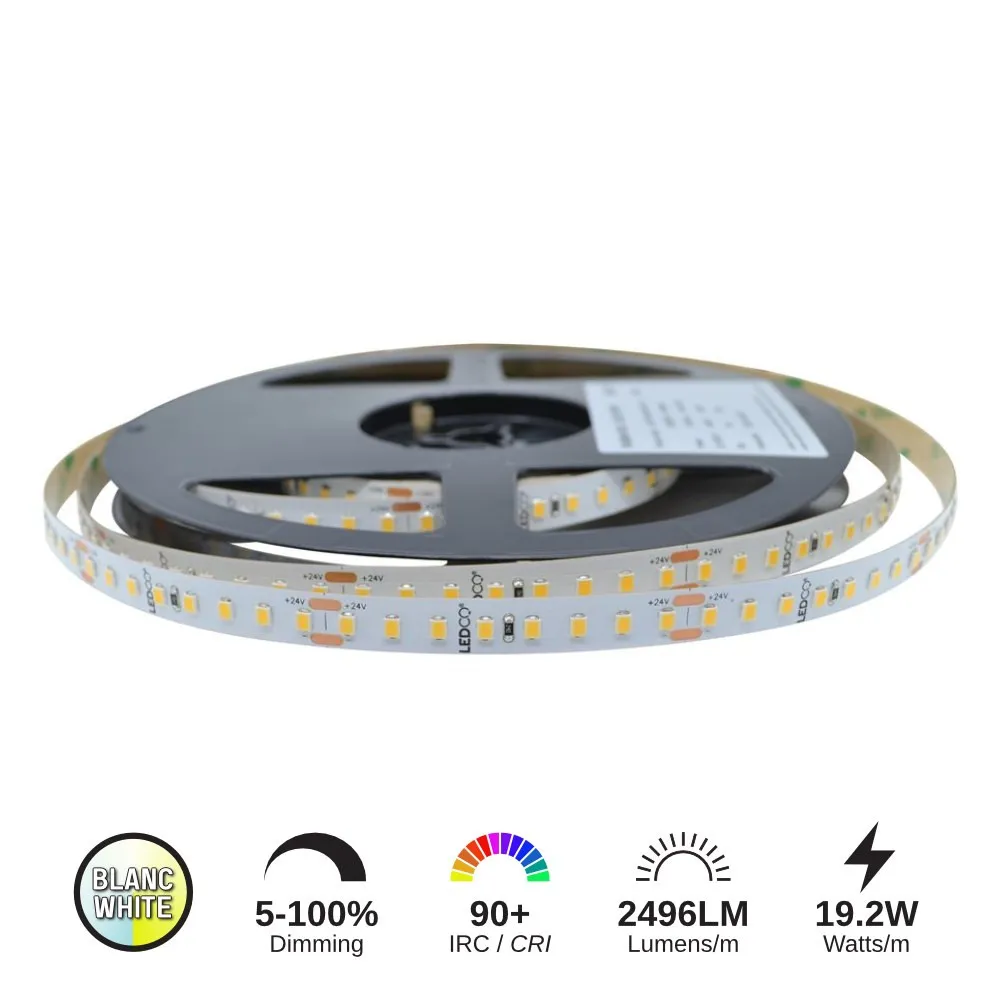

LED STRIP 19.2W/M - LCLS24V-96W-50K-IP22-30M

Name: LED STRIP 19.2W/M - LCLS24V-96W-50K-IP22-30M
Brand: LEDCO
SKU: LCLS24V-96W-50K-IP22-30M
Price: 522.97 CAD
Availability: InStock

SKU: LCLS24V-96W-50K-IP22-30M

Brand: LEDCO

Bright, clean, continuous light exactly where you want it — that's what a good LED strip gives you, and this 24V 19.2W/M tape is one of the hardest-working ones you can put in a project. Call them LED strip lights, LED light strips, LED strip lighting or simply strip lights: this is the flexible ribbon you tuck under cabinets, into coves, along ceilings, inside display cases and stair nooks to replace bulky fixtures with a smooth line of light. This version is the 5000K daylight model, SKU LCLS24V-96W-50K-IP22-30M, supplied on a 30 m roll so you can run a whole kitchen, basement, garage or storefront from one order and cut only what you need.

Under the silicone-free top you get Epistar 2835 SMD chips, 128 LEDs per meter for a dense, dot-free line, and 19.2W/M (±10%) delivering 120 LM/W of real output. The CRI 90+ rating is the detail most people notice first: whites stay white, wood grain looks rich, merchandise and skin tones look true — a big step up from cheap tape. It runs on 24V DC, so voltage drop is far less of a headache over long runs, and it is fully dimmable with a compatible 24V dimming system. The PCB is 10 mm wide with a 3 oz copper thickness for better heat management, the beam spread is 120º, cut points fall every 62.5 mm (8 LEDs), maximum run is 10 m per feed, the rating is IP22 for indoor use, and the strip is UL listed with a lifespan of 50 000+ hours.

At 5000K, this tape is made for spaces where you want crisp, energizing indoor LED lighting: garages and workshops, basements and laundry rooms, kitchen under-cabinet task light, bathroom mirrors, retail displays, bakery and deli cases, offices, salons, clinics and warehouse shelving. It is a favourite with Canadian contractors for cove and ceiling detailing in renovations where recessed cans simply won't fit. Prefer a warmer look? The same strip is offered as LED strip 2700K, LED strip 3000K, LED strip 3500K and LED strip 4000K. Roll out your line of light — check the spec sheet and order your 30 m roll today.

Built for real projects, not just accent glow
This is a high-output 24V LED strip rather than a decorative novelty tape. The flexible circuit carries 128 Epistar 2835 SMD diodes per meter on a 10 mm wide PCB, and that density is what kills the "dotted" look when you install close to a surface or behind a diffuser. The 3 oz copper PCB thickness matters more than most people realize: thicker copper spreads heat away from the diodes, which helps the strip hold its output and colour over its 50 000+ hour lifespan. Cut points are marked every 62.5 mm (8 LEDs), so you can tailor each run to the millimetre of your cabinet, shelf or cove.

Light quality you can trust
With CRI 90+ and 120 LM/W, this tape delivers both efficiency and honest colour. High CRI is what makes food look appetizing in a display case, fabric colours read correctly in a boutique, and paint or tile look the way your client chose it. The 5000K colour temperature of this model gives a crisp daylight white — the go-to choice for garages, workshops, utility rooms, task areas and commercial spaces where alertness and visibility come first. The 120º beam angle spreads light broadly, so a single run inside a cove or under a cabinet washes the surface evenly instead of throwing a narrow stripe.

Technical specifications
SKU: LCLS24V-96W-50K-IP22-30M
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 19.2W/M ±10%
Efficacy: 120 LM/W
CRI: 90+
Colour temperature: 5000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 10 mm
PCB thickness: 3 oz
Max length: 10 m
Cut size: 62.5 mm (8 LEDs)
Protection rating: IP22
UL: Yes
Lifespan: 50 000+ hours

Electrical and installation notes
Plan your layout before you peel anything. The strip runs on 24V DC, so it needs a 24V power supply sized for the total load — count 19.2W per meter, add headroom, and remember the maximum run is 10 m from a single feed; longer installations should be split into separate runs fed in parallel rather than end to end. The strip is dimmable, so pair it with a compatible 24V dimming setup when you want mood control in a kitchen, bedroom cove or restaurant. Cut only on the marked 62.5 mm points, solder or use proper connectors at the cut, and mount on a clean, dry surface. An aluminum extrusion with a diffuser is the pro move: it hides the diodes, protects the tape and pulls heat away. The IP22 rating means indoor, dry locations only — for wet or washdown areas, choose an IP66 version such as the LED strip 19.2W/M IP66.

Applications, alternatives and documentation
Concrete examples: under-cabinet task lighting over a kitchen counter, a continuous cove line around a living room ceiling, backlighting for a bathroom mirror, shelf lighting in a retail display, workbench lighting in a garage, and toe-kick or stair lighting in a finished basement. If your project needs less output, the LED strip 4.8W/M 24V is a gentler accent option; for colour-changing effects, look at the RGB LED strip 14.4W/M IP22; and for adjustable white, the CCT LED strip 20W/M lets you tune the ambiance. The full technical PDF for this model is in the Documentation tab — download it for your submittals, electrician or building inspector.
