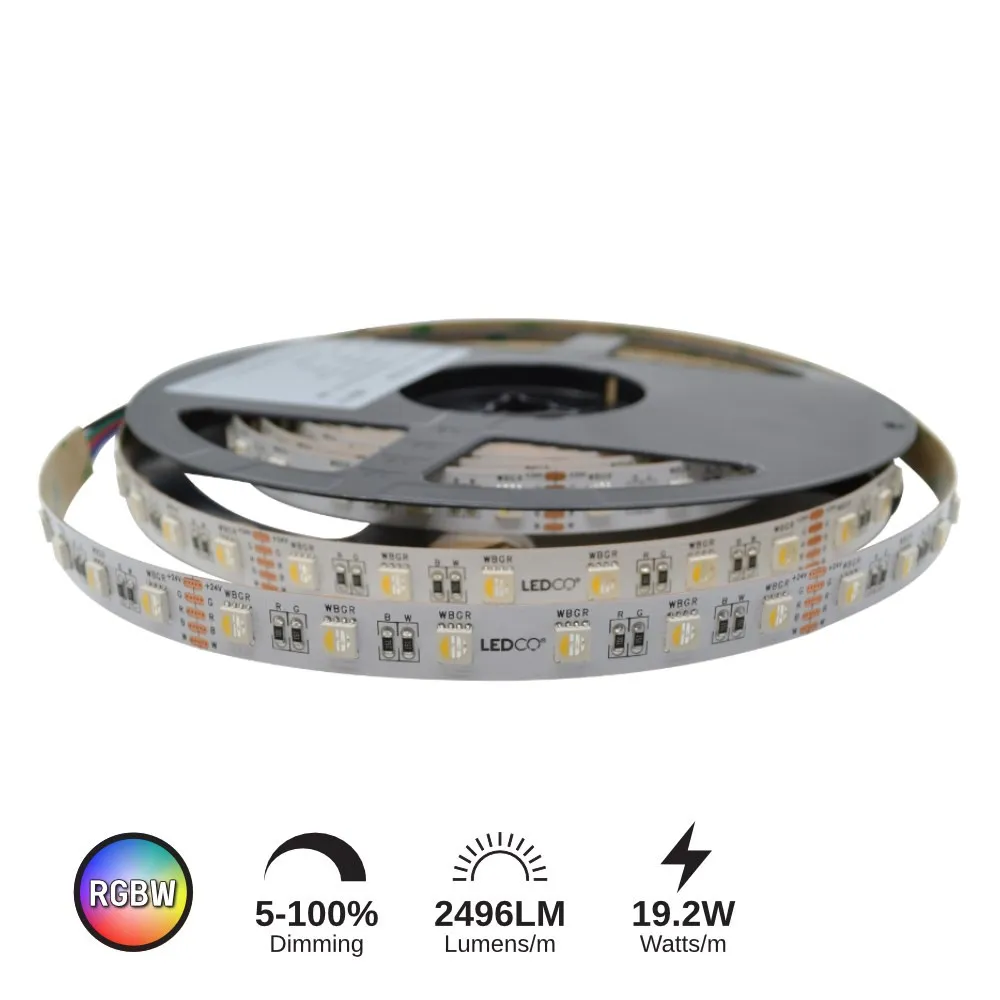

LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW40K-IP22

Name: LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW40K-IP22
Brand: LEDCO
SKU: LCLS24V-96W-RGBW40K-IP22
Price: 97.97 CAD
Availability: InStock

SKU: LCLS24V-96W-RGBW40K-IP22

Brand: LEDCO

Colour and comfort on the same reel — that's the promise of this RGBW LED strip, a 24V LED strip light that mixes red, green and blue with a dedicated 4000K white channel. People call it a LED light strip, LED tape light, LED strip lighting or simply strip lights, and it does double duty: crisp, usable white light for everyday tasks, then full colour when it's time to set a mood. Model LCLS24V-96W-RGBW40K-IP22 is built for cove ceilings, under-cabinet runs, toe-kicks, stair nosings, bar fronts, display cases, feature walls and backlit signage — anywhere you want a clean line of light instead of a visible fixture.

Each reel is 5 m long with a 120 LEDs/m density, drawing 19.2 W per metre on 24V DC. Tight LED spacing plus a 120º beam angle means smooth, even light rather than a row of hot spots, and the CRI 90+ rating keeps wood grain, paint, skin tones and merchandise looking true — a big deal in kitchens, bathrooms and retail. The white channel is 4000K neutral white, the most versatile colour temperature for work zones and modern interiors. The strip measures 12 mm wide, is built on a 2 oz density white PCB, and can be cut every 50 mm to fit your run exactly. It sticks down with 3M double-sided tape on non-porous surfaces, is rated IP22 for dry indoor use, operates from -25 °C to 60 °C, is UL listed and delivers 50 000+ hours of service.

Dimming is wide open: DMX, PWM, RF PWM, 0-10V and MLV incandescent controls are all supported, so it drops into everything from a simple residential setup to a programmed commercial scene system. Think basement renos and home theatres, restaurant bars, salons, boutiques, hotel lobbies and office reception walls across Canada. You'll need a 24V DC power supply and an RGBW controller sized to your run. If your project also calls for a single-colour line, the matching LED strip 19.2W/m 24V 96W 30K IP66 is the same output in warm white, and for pure colour work see the LED strip 14.4W/m 24V 72W RGB IP22. Roll out your light line and make the room yours.

Built to run long and look clean
This RGBW LED tape is assembled on a 2 oz density white PCB, a heavier copper board that helps carry current and move heat away from the diodes — exactly what you want on a 19.2 W/m strip that may run several metres in a channel. The white board also reflects light forward instead of absorbing it. At 12 mm wide and only 5 m per reel, it tucks into coves, cabinet valances, stair stringers and slim aluminum profiles without drawing attention to itself. Cut marks every 50 mm let you trim to length on site, and the factory 3M double-sided tape holds firmly on clean, non-porous surfaces such as aluminum extrusion, painted MDF, melamine and glass-smooth trim.

Four channels, real colour quality
RGBW means four diode channels: red, green and blue for saturated colour and dynamic scenes, plus a separate 4000K neutral white channel for honest, everyday light. That fourth channel is what separates this from basic RGB tape — instead of a muddy "white" mixed from three colours, you get a clean neutral white with a CRI of 90+, so cabinet finishes, tile, textiles and food look the way they should. The 120 LEDs/m density combined with the 120º beam angle gives a continuous wash of light; behind a diffuser lens, the dotting all but disappears.

Technical specifications
Model: LCLS24V-96W-RGBW40K-IP22
Voltage: 24V DC
Power consumption: 19.2W/M
LED density: 120LEDs/m
CRI: 90+
Colour temperature (white channel): 4000K
Beam angle: 120º
Reel length: 5m
Segment width: 12mm
Cuttable segments: 50mm
Board type: 2oz density, white PCB
Protection rating: IP22
Operating temperature: -25°C to 60°C
Mounting: 3M double-sided tape (non-porous surfaces)
Dimming: DMX, PWM, RF PWM, 0-10V, MLV incandescent
Certification: UL
Lifespan: 50 000+ hours

Wiring, power and control
Run the strip on a 24V DC power supply sized for your total load, and always respect the recommended maximum run length. The spec sheet is clear on this: parallel connections are strongly recommended for LED strip installations. Going past the recommended length makes the far end dim and stresses the strip over time. For one long continuous line, use a middle connection — a parallel feed wired to the middle of the run — so both halves stay at full brightness. On the control side, the strip accepts DMX, PWM, RF PWM, 0-10V and MLV incandescent dimming, so it fits a handheld RF remote in a condo just as well as a DMX-programmed scene controller in a restaurant or a 0-10V building system. Pair it with an RGBW controller and decoder rated for the same voltage and amperage.

Where it works and what's in the Documentation tab
Because it's IP22, keep this one indoors and dry: kitchen under-cabinet and toe-kick lighting, cove and tray ceilings, home theatres and basement bars, stair and hallway accents, closet shelving, bar fronts, retail display cases, salon mirrors, hotel corridors and office feature walls. Contractors like it for its -25°C to 60°C operating range and its UL listing on commercial jobs. Need the same 19.2 W/m output in a single warm colour, or a damp-location version? Compare the LED strip 19.2W/m 24V 96W 30K IP66, the tunable LED strip 20W/m 24V 100W IP22 CCT or the colour-only LED strip 14.4W/m 24V 72W RGB IP66. The full technical PDF, including the dimensional drawing and the parallel and middle connection guides, is in the Documentation tab.
