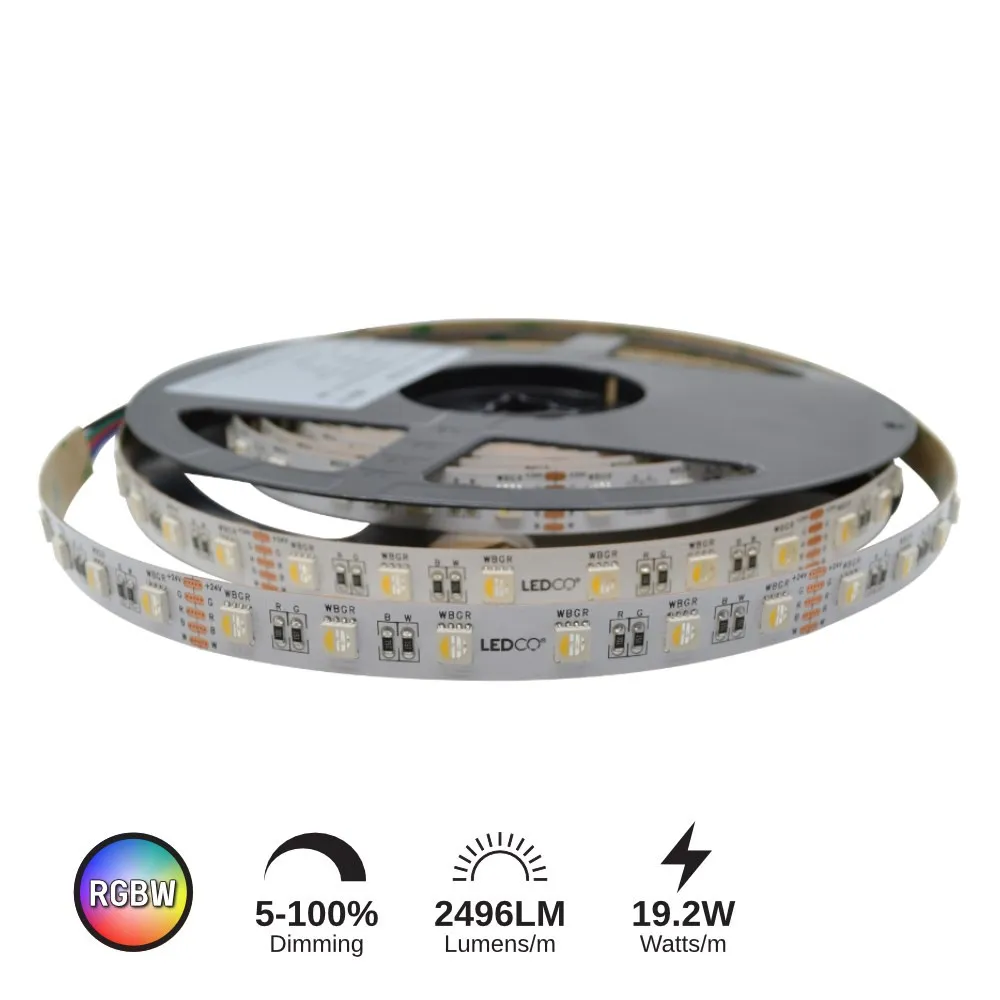

LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW30K-IP66-30M

Name: LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW30K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-96W-RGBW30K-IP66-30M
Price: 675.97 CAD
Availability: InStock

SKU: LCLS24V-96W-RGBW30K-IP66-30M

Brand: LEDCO

Colour, warmth and control on one single roll: this RGBW LED strip gives you millions of colour scenes plus a true white channel, so the same run of tape can throw a deep blue party wash at night and a clean, natural white for everyday living. People shop for it as LED strip lights, LED light strips, LED strip lighting, LED lighting strips or simply "ruban LED", and it is the go-to for cove ceilings, under-cabinet lighting, toe-kicks, stair nosings, backlit headboards, display cases, signage, bar fronts and reception desks. Because the white LED is a dedicated chip and not a mix of red, green and blue, whites stay crisp instead of turning pink or greenish — a detail that makes all the difference in a kitchen or a retail display. SKU: LCLS24V-96W-RGBW30K-IP66-30M.

This is a 24V DC tape drawing 19.2W/M (±10%) with 60 LEDs per meter, a density that keeps the light line smooth and limits the dotting effect behind a diffuser. The white channel is 3000K, a warm, welcoming tone, and the colour rendering reaches CRI 90+, so woods, fabrics, skin tones and merchandise look the way they should. The 120º beam angle spreads light evenly along the run, the strip is dimmable, and the PCB measures 12mm wide with 3oz copper for better heat management on long runs. Cut every 100mm, maximum run of 10m per feed, UL listed and rated for 50 000+ hours of service.

Homeowners use it to light a coffered ceiling, a basement bar or a staircase; contractors run it in condo kitchens, restaurants, hotel corridors, boutiques and offices where one lighting system has to do both mood and task. The 24V platform means longer runs with less voltage drop than 12V — handy in Canadian open-plan rooms and long hallways. Pair it with a 24V DC constant-voltage driver sized for the load, an RGBW controller or remote, and an aluminum channel with a frosted lens for a finished, glare-free line. Need plain white instead? Look at the LED strip 19.2W/m 24V 96W 30K IP66, or stay in colour with the LED strip 14.4W/m 24V 72W RGB IP66. Plan your run, order your length and light it your way.

Built for long, clean runs
The tape is built on a 12mm-wide PCB with 3oz copper, a heavier copper weight that helps pull heat away from the diodes and keeps brightness and colour stable over time. Sixty LEDs per meter are spaced tightly enough that, once mounted in an aluminum extrusion with a frosted lens, the line reads as a continuous glow rather than a row of dots. Cut marks fall every 100mm, so you can trim the tape to the exact length of a cabinet, a stair riser or a cove without wasting material, and the maximum recommended run is 10m per power feed.

Light quality: real whites, real colour
RGBW means four chips: red, green and blue for the colour scenes, plus a dedicated white LED at 3000K for everyday lighting. That separate white channel is what lets you use the same installation as your main accent light during the week and as a colour wash for an event. Colour rendering is CRI 90+, which matters in kitchens, bathrooms, retail displays and anywhere finishes and products need to look true. The 120º beam angle spreads the output wide and even, ideal for bouncing light off a ceiling or wall.

Technical specifications
SKU: LCLS24V-96W-RGBW30K-IP66-30M
Power: 19.2W/M ±10%
Voltage: 24V DC
LEDs per meter: 60pcs
White channel colour temperature: 3000K
CRI: 90+
Beam angle: 120º
Dimmable: Yes
PCB width: 12mm
PCB thickness: 3oz.
Cut size: 100mm
Max length: 10m
UL: Yes
Lifespan: 50 000+ hours

Electrical and installation
This is a constant-voltage 24V DC product: it needs a 24V driver or power supply sized for the total load, with headroom for the full four channels, and an RGBW controller (wall-mount, remote or app-based) between the driver and the tape. Feed longer installations from both ends or split them into separate runs of 10m or less to avoid voltage drop and colour shift at the far end. Keep polarity and channel order consistent at every solder point or clip connector, run the tape on a clean, dry surface, and mount it in an aluminum profile whenever it sits close to wood, MDF or drywall — the channel acts as a heat sink and protects the tape. Dimming is handled on the low-voltage side through the controller or a compatible driver, not with a standard line-voltage wall dimmer.

Where it earns its keep — and documentation
Think basement home theatres and bars, kitchen coves and under-cabinet lighting, floating vanities, stairway handrails, garage shelving, restaurant booths, hotel lobbies, retail shelving and display cases, salon reception walls, and seasonal colour on a commercial storefront. Contractors like the 24V platform for condos and long open-plan spaces where 12V would fade out too quickly. If you need matching white-only tape for adjacent areas, the LED strip 9.6W/m 24V 48W 30K IP66 and the LED strip 4.8W/m 24V 24W 30K IP66 keep the same 24V system, while the LED strip 14.4W/m 24V 72W RGB IP22 is the colour-only option. The technical PDF spec sheet for LCLS24V-96W-RGBW30K-IP66-30M is available in the Documentation tab — check it before ordering drivers and controllers.

Technical Files
