A big profile in a practical length
The #145 is the biggest profile of the 100 series line, and this 8 ft length makes it easy to bring on site and install. Specially designed for outdoor use, it can house all the IP68 LED engines of the line, so you can choose the lumen package your project needs. With its new sliding lens design and its support rail, it offers a wide variety of installation, from fixed to suspended mounting, turning a simple LED strip into a finished linear LED light.
Light quality and heat management
With a prime lens, the profile is designed to give a uniform light without hot spots, so the strip reads as one continuous line. The ordering guide of the series lists prime, opal, black, focus and square 3D prime lenses, as well as a high efficiency reflector. The 6063-T5 aluminum alloy increases heat dissipation, and its use increases the lifetime of your LED engine.
Installation and accessories
For fixed mounting, the ordering guide lists surface brackets (1-side, 2-side, 90° and 45°), a phantom bracket and a magnetic kit; to aim the light, a swivel bracket 180° or a heavy duty swivel bracket. For a suspended LED profile, add the suspension kit with a canopy (remote driver canopy plate, integrated driver canopy or integrated driver and suspension kit) in aluminum, black or white; canopies are only available with the suspension bracket. A gypsum groove accessory (1/2 in, 4 ft) allows a recessed installation in drywall, and 90° corners (6 x 6 in) and a straight joiner connect several sections; joiners are ordered separately. Have any line-voltage connection made by a licensed electrician.
Technical specifications
SKU: LCPROF-145-8FT
Series: 145, aluminum finish
Length: 8 ft

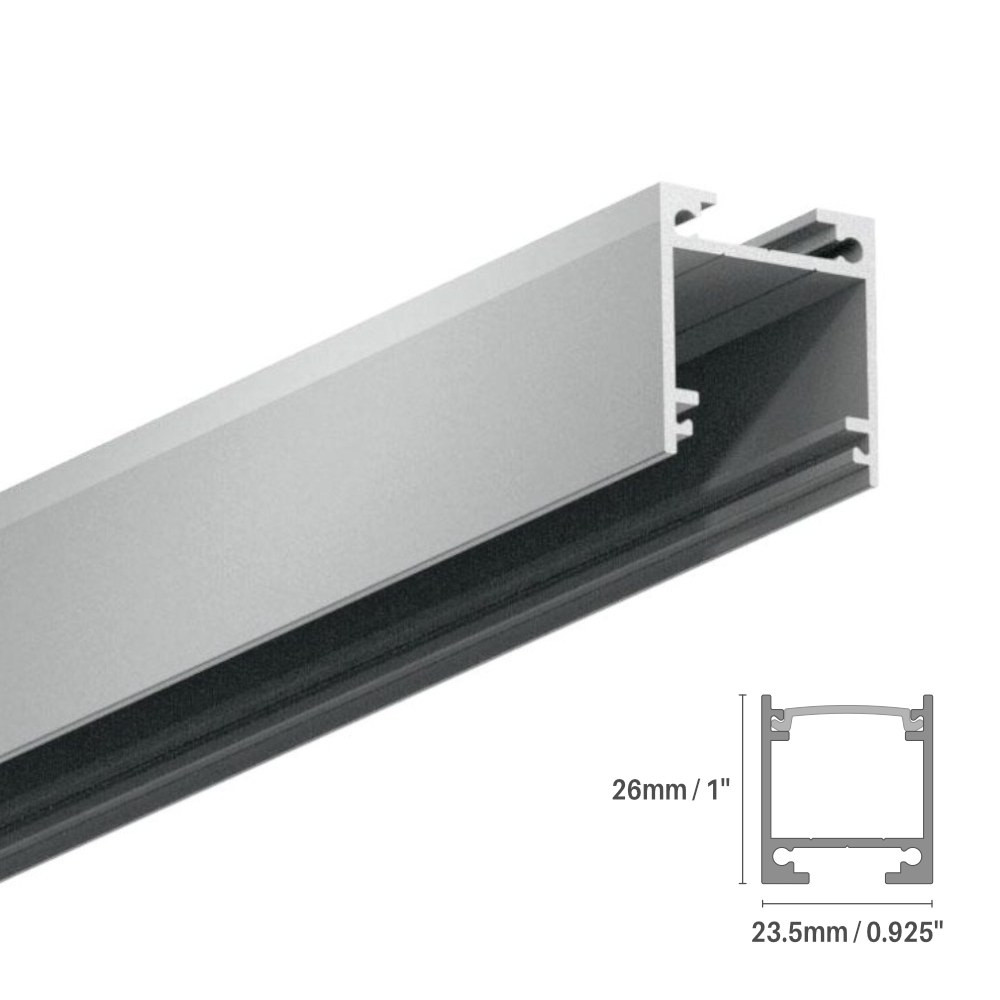

Dimensions (technical drawing): 26.0 mm, 23.5 mm (0.925 in)
Material: 6063-T5 aluminum alloy
Use: indoor or outdoor
Custom lengths (series): sections of 2 to 240 inches (6 m)
Warranty: 3 years
Applications and documentation
Deck steps at a cottage in the Laurentians, a garage workshop in Edmonton, a sign over a café in Halifax: the 8 ft #145 adapts to projects of every scale. The complete spec sheet, with the technical drawing and the ordering guide, is available as a PDF in the Documentation tab, ready to share with your contractor or electrician.
