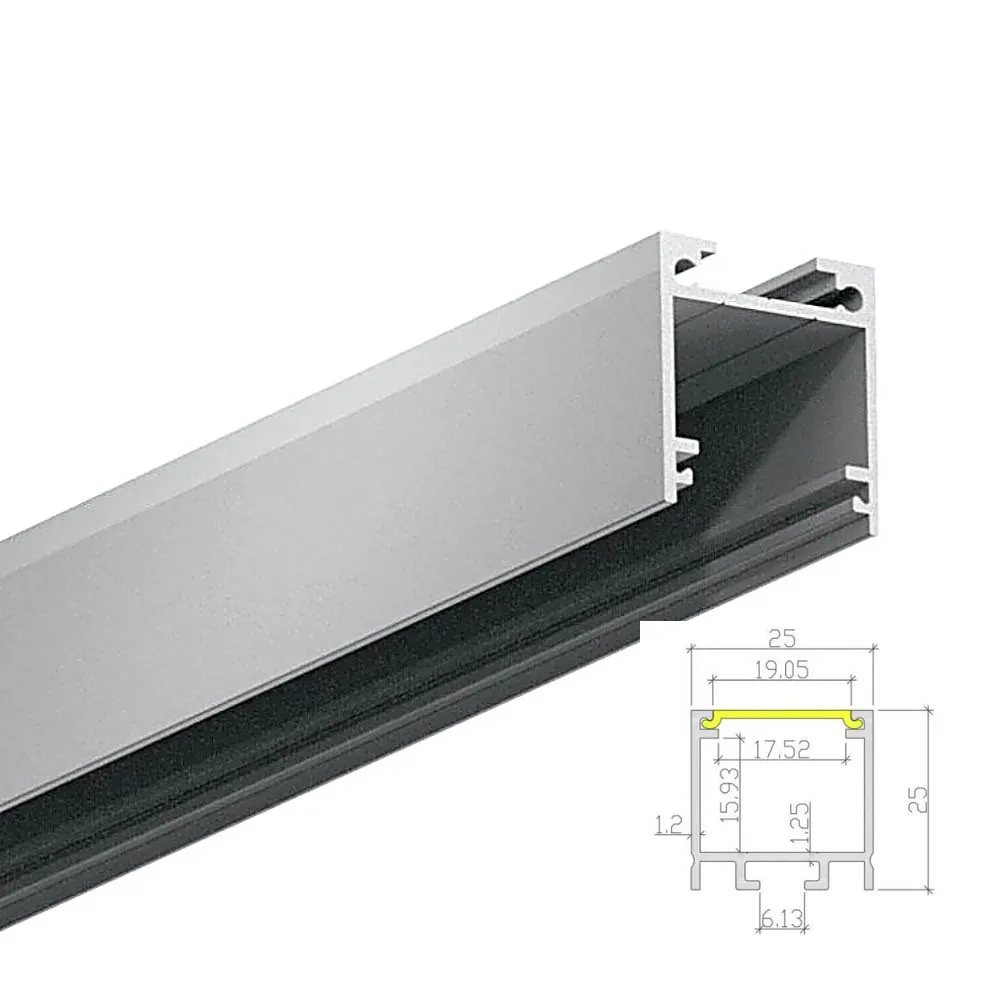

A large-format square profile
The #81 stands apart from compact channels: it is a large-format suspended profile with a square cross-section of 25 x 25 mm. That generous size accommodates a wide range of LED strips and provides excellent heat dissipation, while its geometric shape looks deliberate whether it hangs from the ceiling or sits on a surface. Made of 6063-T5 aluminum, it is designed for commercial and architectural projects where the fixture is part of the design.
Surface or suspended
Two mounting options give you flexibility. Surface mounted, the profile becomes a crisp line on a ceiling or a wall. Suspended with the dedicated suspension kits, it becomes a floating linear LED pendant over desks, tables or counters. Plan the suspension points, the power supply location and the cable path with your electrician before installation, and use the 16 foot length to cover long spaces with fewer joints. Any line-voltage connection must be made by a licensed electrician.
Light quality and options
The light itself comes from the LED strip you choose, so you control the colour temperature and brightness for each application: neutral white for offices and classrooms, warm white for restaurants and lobbies. In a large open space, several profiles installed in parallel rows create a coherent lighting layout; in a narrow corridor, a single continuous line guides the eye. When the strip should stay out of sight, an opaque lens is available for the series. Custom fabrication is available when a project calls for special dimensions.
Technical specifications
SKU: LCPROF-81-16FT
Series: aluminum profile #81 (LCPROF-81)
Cross-section: square, 25 x 25 mm
Length: 16 ft
Finish: aluminum
Material: 6063-T5 aluminum
Mounting: surface or suspended (suspension kits available)
Lens: opaque lens available for the series
Certification: certified for the Canadian market
Projects and documentation
Picture continuous lines of light over the workstations of a Toronto tech office, above the service counter of a Québec City café, in the corridors of a school in Winnipeg or across a showroom in Halifax. The spec sheet, with the technical drawing of the profile, is available as a PDF in the Documentation tab, ready for your architect, designer or electrical contractor to plan the suspended linear lighting. It is equally at home in a fitness studio, a library or a commercial LED lighting retrofit.
