A versatile profile for every installation
The 14 series is a small profile that holds its own among the big ones. In addition to offering even lighting, it allows beam adjustment and a considerably larger choice of installation options: it can be mounted fixed on a surface or suspended, and its support rail offers the largest range of installation and assembly. For designers and installers, this LED profile is one solution for a wide range of situations, from a residential kitchen to a commercial fit-out.
Light quality and heat management
Designed to give a uniform light without hot spots with an opal or prime lens, the #14 turns an LED strip into a smooth line of light. The ordering guide of the series lists clear, prime, black, focus and square 3D opal lenses, so you can adapt the look and the beam to each application. The profile is made of 6063-T5 aluminum alloy, which increases heat dissipation; its use increases the lifetime of your LED strip, especially in long runs and enclosed spaces.
Installation and accessories
Compatible with multiple installation accessories (over 40 options), the #14 can be fixed, angled or suspended. The ordering guide lists a flat bracket, a 45° corner bracket and a swivel bracket 180°, the latter being ideal for aiming the light toward a backsplash, a display or a work surface. The profile is intended for LED strips 10 mm (3/8-inch) wide or less and is designed to meet North American woodworking standards. Follow the instructions of your LED strip and its driver, and have any line-voltage connection made by a licensed electrician.
Technical specifications
SKU: LCPROF-14-16FT
Series: 14, aluminum finish
Length: 16 ft

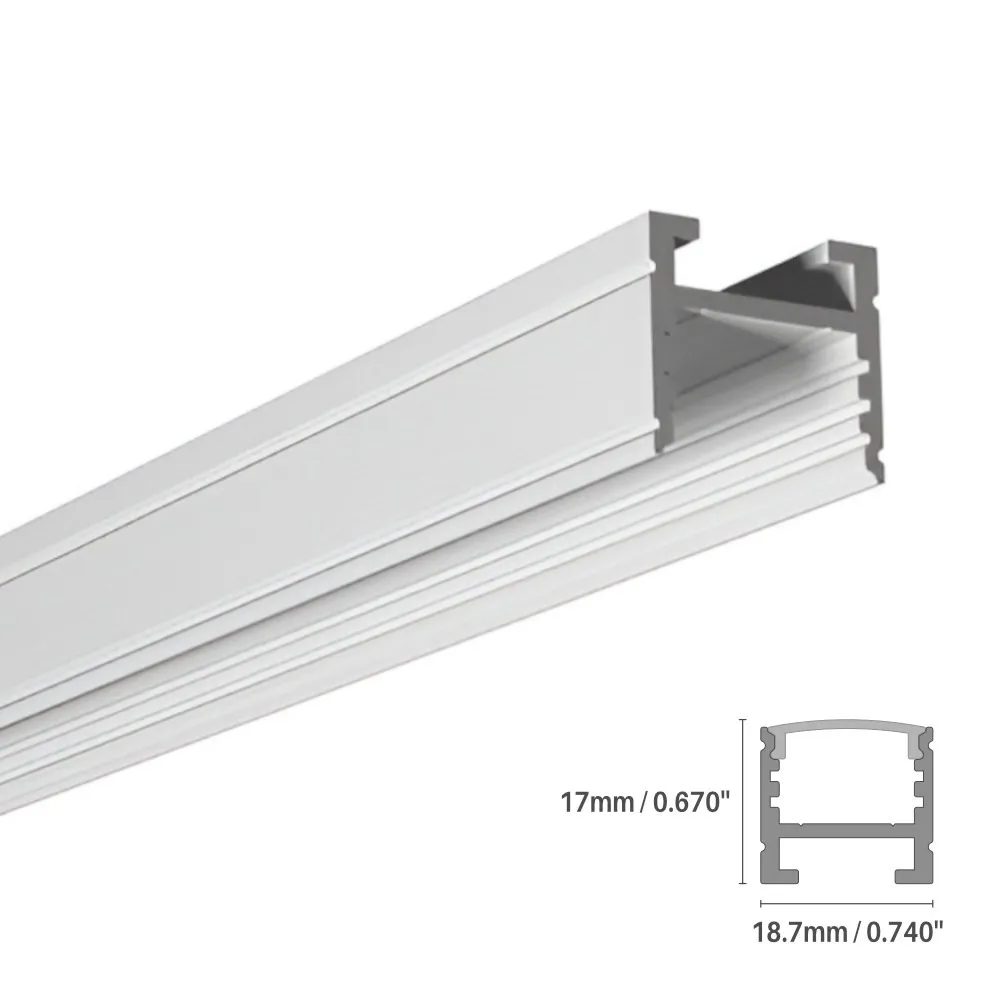

Dimensions (technical drawing): 17.0 mm (0.670 in), 18.7 mm (0.740 in)
LED strip: 10 mm (3/8-inch) or less
Material: 6063-T5 aluminum alloy
Mounting: fixed to suspended, over 40 accessory options
Custom lengths (series): sections of 2 to 240 inches (6 m)
Warranty: 3 years
Applications and documentation
At home, the #14 lights kitchen counters, open shelves, closets, stairs and home offices; in business, it creates suspended linear lighting over desks and counters, highlights products in display cases and brightens workbenches. The ordering guide of the 14 series provides for aluminum, black and white finishes, as well as a custom colour, so every aluminum profile in a project can match its surroundings. The complete spec sheet, with the technical drawing and the ordering guide, is available as a PDF in the Documentation tab.
