LED ALUMINUM PROFILE #49 - LCPROF-49-16FT-BK

A large square profile for bold linear lighting

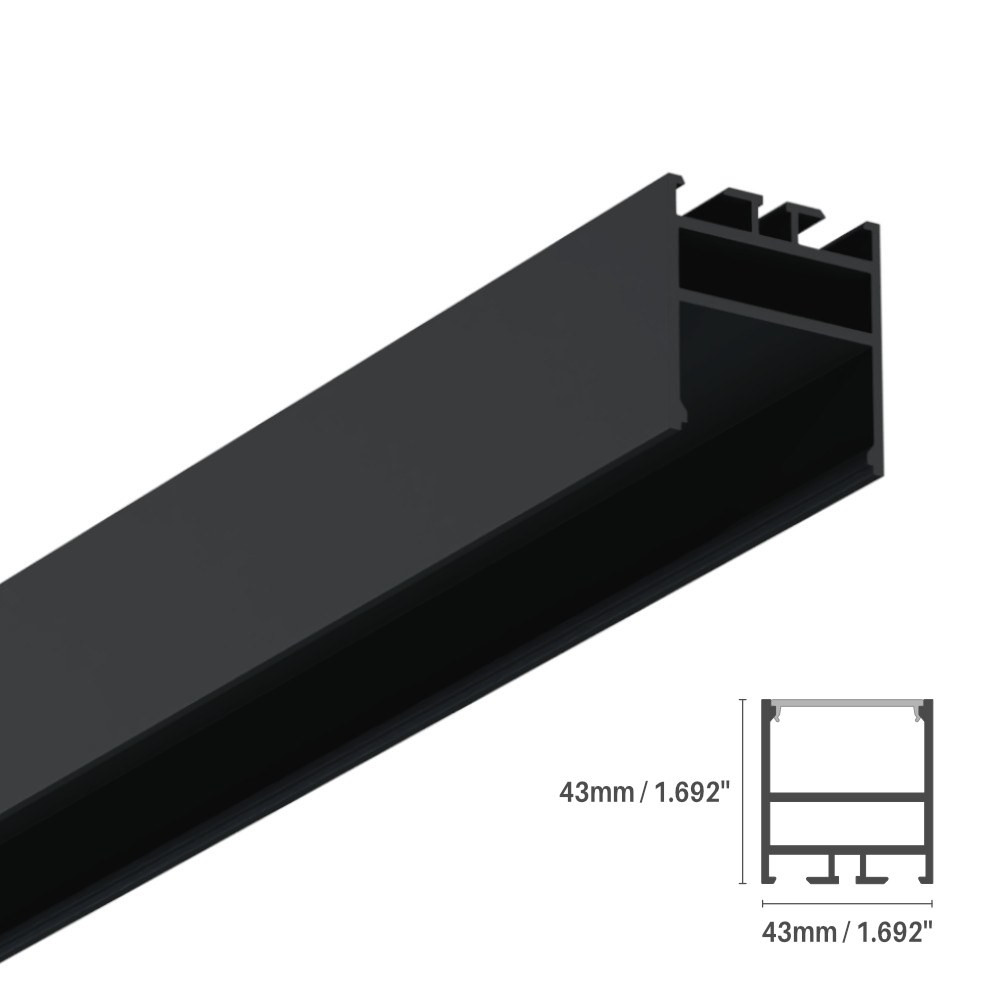

The #49 series is a large square LED aluminum profile: a 43 × 43 mm (1.693 in) extrusion designed to be seen rather than hidden. Where a small channel disappears under a cabinet, this aluminum extrusion becomes a design element in its own right, a crisp black line running along a ceiling, down a wall or above a table. It is made of 6063-T5 aluminum with a black finish, and it can be painted to match your decor if your project calls for another colour. This listing is the 16-foot length in black, model LCPROF-49-16FT-BK, a practical size for long runs with fewer joints.

Room for your strip, and for its heat
Inside, the channel is 39 mm wide and 20.32 mm deep. That generous space accommodates a wide range of LED strips, so you are not limited to one narrow format when you choose your lighting. The aluminum body provides excellent heat dissipation: it draws heat away from the strip, which helps the LEDs run cooler and keep performing over time. For a soft, uniform glow, an opaque lens is available to cover the strip, giving the finished fixture a continuous line of light rather than a row of bright dots.

Mounting and installation
The profile is designed for surface mounting or suspended mounting. Suspension kits are available to hang it as a linear pendant, and the ordering guide on the spec sheet lists double-sided mounting tape, an opaque lens and no-hole end caps. Custom fabrication is also available, including custom lengths specified in inches, for projects that need a precise fit. Plan your layout before cutting, keep the power supply accessible, and have any new wiring done by a licensed electrician in accordance with the electrical code in force in your province.

Technical specifications
Model: LCPROF-49-16FT-BK
Series: aluminum profile #49, large square profile
Profile dimensions: 43 × 43 mm (1.693 in)
Channel: 39 mm wide, 20.32 mm deep
Length: 16 ft
Material: 6063-T5 aluminum
Finish: black
Mounting: surface or suspended
Options: opaque lens, suspension kits, custom fabrication
Certification: certified for the Canadian market
Warranty: 3 years

Applications and documentation
Hang it over a kitchen island or a dining table for a striking linear pendant, run it across the ceiling of an open-concept office, a retail store or a restaurant, or use it to frame a feature wall in a condo or a finished basement. Planning several areas in the same project? The family also includes other models, such as the LED aluminum profile #14 in black and the LED aluminum profile #145 in black. The full spec sheet, with the technical drawing and the ordering guide, is available in the Documentation tab.
