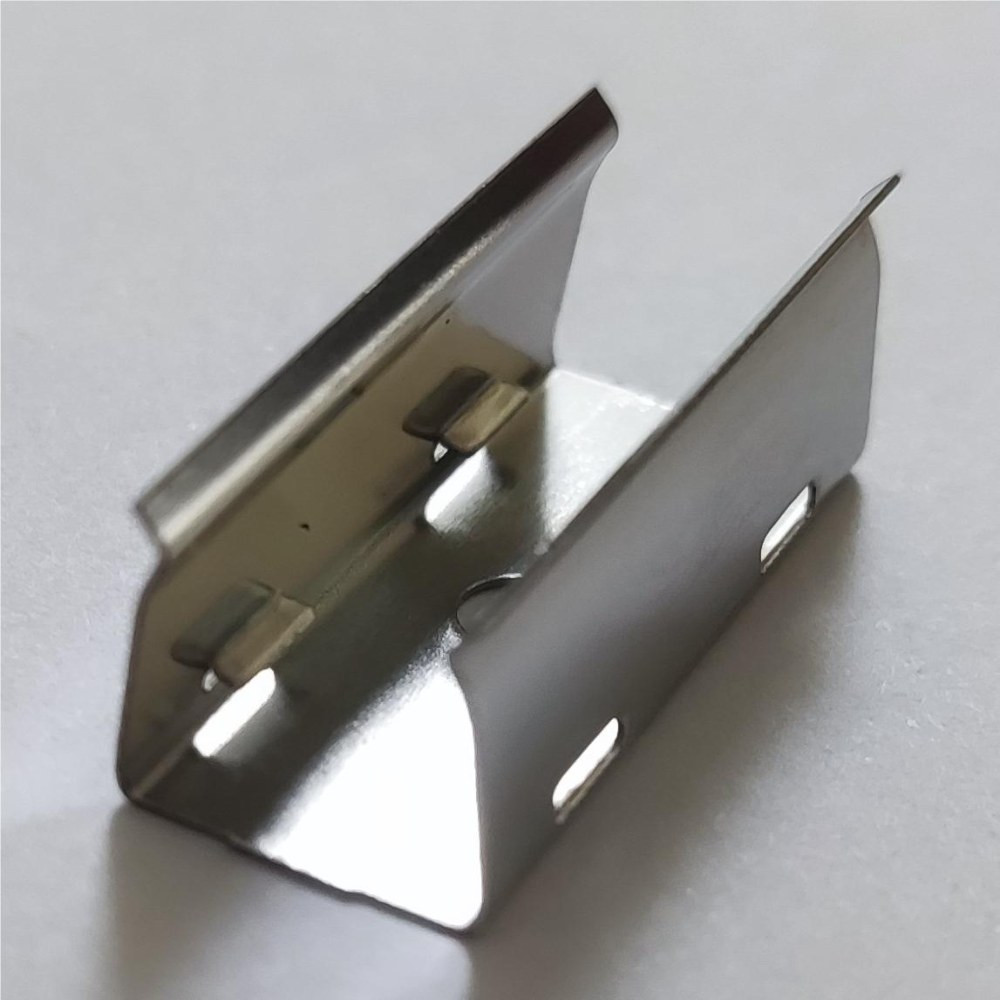

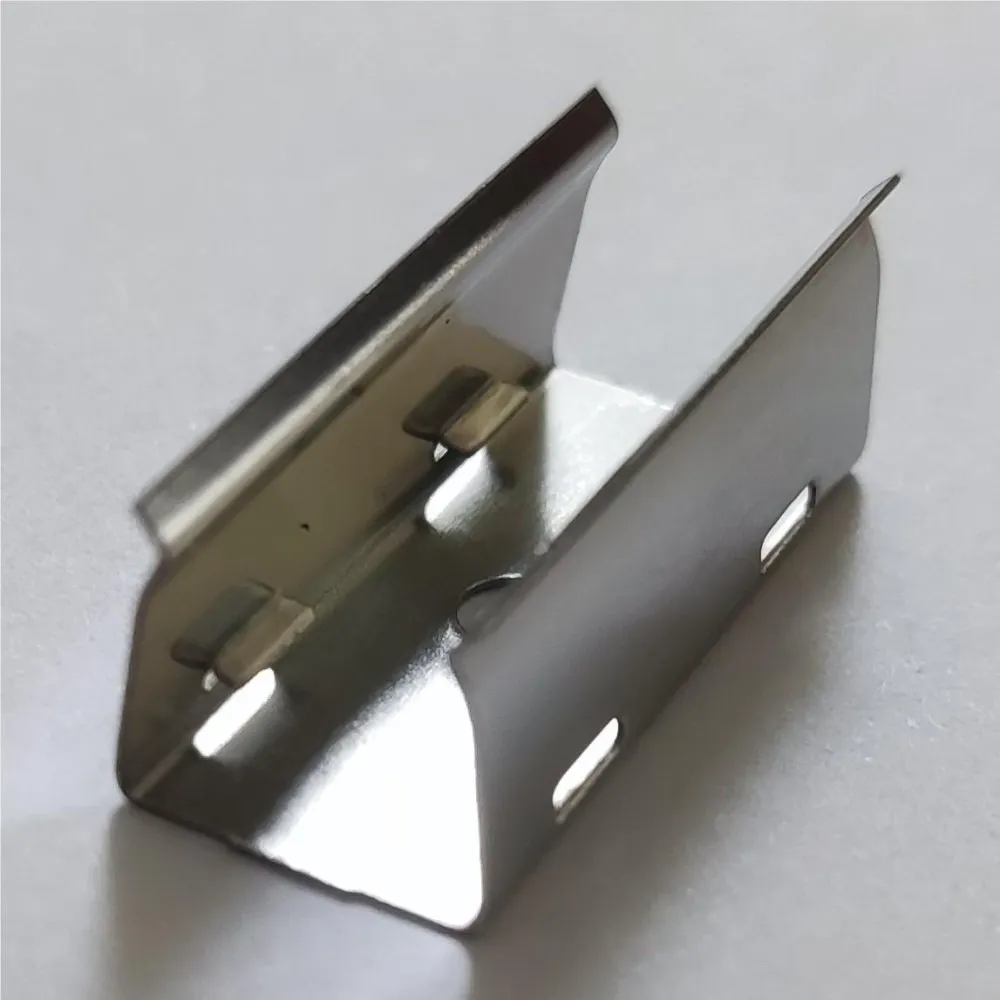

FLEX NEON MOUNTING BRACKET – TOP VIEW (SINGLE UNIT)

Name: FLEX NEON MOUNTING BRACKET – TOP VIEW (SINGLE UNIT)
Brand: LEDCO
SKU: LCBRACK-FLEX-TV
Price: 1.97 CAD
Availability: InStock

SKU: LCBRACK-FLEX-TV

Brand: LEDCO

Keep your neon run perfectly straight from the first millimetre to the last. This flex neon mounting bracket – top view (SKU LCBRACK-FLEX-TV, sold per unit) is the small part that makes a big difference on every LED neon flex project. Searched just as often as "installation bracket", "led flex neon" or "flexible led neon rope light", this little clip holds the neon profile firmly while leaving the light-emitting top face completely exposed, so your glow stays even and uninterrupted along the whole run. It is the accessory of choice for coves, signage, handrails and any continuous line of light where you want the fixture to disappear and only the light to show.

This bracket is an accessory kit designed for 10*10mm Top View neon, and it matches the 24V DC top-view flex neon family rated at 14.4W/M, 140 LEDs per meter, 120lm/W, CRI 90 and IP66, with a lifespan of 50 000+ hours. Because the neon snaps into the bracket instead of being glued, the installation stays fully reversible: adjust your layout mid-job, replace a section later, or take the run down with no residue left on the surface. Brackets are typically fastened with small screws into wood, drywall anchors, metal or a mounting channel, which also gives you welcome strain relief at the ends of the run. Even spacing is the secret to a clean, professional line, and since the brackets are sold individually, you build exactly the quantity your run needs — with a few extras where the curves demand it.

Perfect for kitchen coves and under-cabinet accents at home, soffits and stair nosings, bar fronts, reception desks, retail signage and architectural outlines in shops, gyms and restaurants across Canada. Use it with the Flex Neon 14.4W/m Top View in 2700K or the Flex Neon 14.4W/m Top View 4000K version for cooler, crisper lines. Pro tip: dry-fit the whole run first, mark your bracket positions, then add extra brackets on bends and near the ends where tension is highest. Order the number of brackets your project calls for and get a neon line you will be proud to show off.

Compatible with
Works with:
LED strip: LCLS24VFLX-TV-14W-27K, LCLS24VFLX-TV-14W-27K-30M, LCLS24VFLX-TV-14W-40K, LCLS24VFLX-TV-14W-40K-30M

Built for top-view neon flex
This bracket is made for one job and does it well: holding flexible LED neon that emits light from its upper face. It grips the sides of the profile and leaves the diffusing surface fully clear, so you never see a shadow, a dark spot or a pinch point in the middle of a run. The spec sheet lists it as an accessory kit for 10*10mm Top View neon, which makes it the direct match for the 24V top-view flex neon profile. Sold per unit, you decide the quantity: tight spacing on curves and near terminations, wider spacing on long straight runs.

A reversible, adjustable installation
Because the neon snaps into the bracket rather than being bonded with adhesive, the whole installation stays reversible. That matters on job sites where the layout changes at the last minute, in rentals where nothing should be permanent, and in commercial spaces where a damaged section may need to be swapped without redoing the entire line. Brackets are generally screwed into wood, into drywall with anchors, into metal, or onto a mounting channel, and they double as strain relief at the ends of the run, protecting the solder joints and the power lead where tension usually builds up.

Technical specifications
SKU: LCBRACK-FLEX-TV
Type: Accessory kit for 10*10mm Top View neon
Packaging: Comes in a pack of 2
Sold: Per unit
Compatible flex neon: 24V DC, 14.4W/M ±10%, 140 LED per meter, 120lm/W, CRI 90, PCB width 8mm, cut size 50mm, max length 5m, dimmable, IP66, lifespan 50 000+ hours, RoHS and CE, eye security IEC 62471, protection class EN 62031 IEC 60598-1, EMC EN 55015
Available colour temperatures of the matching neon: 2700K, 3000K, 4000K

Where it earns its keep
Think ceiling coves and soffits in a living room or master bedroom, under-cabinet accents in a kitchen, stair nosings and handrails in a stairwell, bar fronts and back-bar shelving in a restaurant, reception desks in a clinic or office, and LED neon sign lettering and architectural outlines in retail. Since the matching neon can be cut every 50mm and runs up to 5m, your bracket layout follows the exact geometry of the project: mark positions with a pencil and a chalk line, dry-fit the entire run, then screw down the brackets. On a curve, tighter spacing keeps the arc smooth and prevents the flex from pinching or twisting; near the ends, one extra bracket takes the pull off the connector.

Compatibility and documentation
Use this bracket with the Flex Neon 14.4W/m Top View in warm white or the Flex Neon 14.4W/m Top View 4000K for a brighter, more neutral line. If your project also includes aluminum extrusions, our other installation brackets such as the Standard installation bracket – Series #10 and the Standard installation bracket – Series #84 cover those profiles. The technical PDF spec sheet for LCBRACK-FLEX-TV is available in the Documentation tab — download it before you order so you can plan your bracket count and spacing with confidence.
