Two controllers in one compact housing

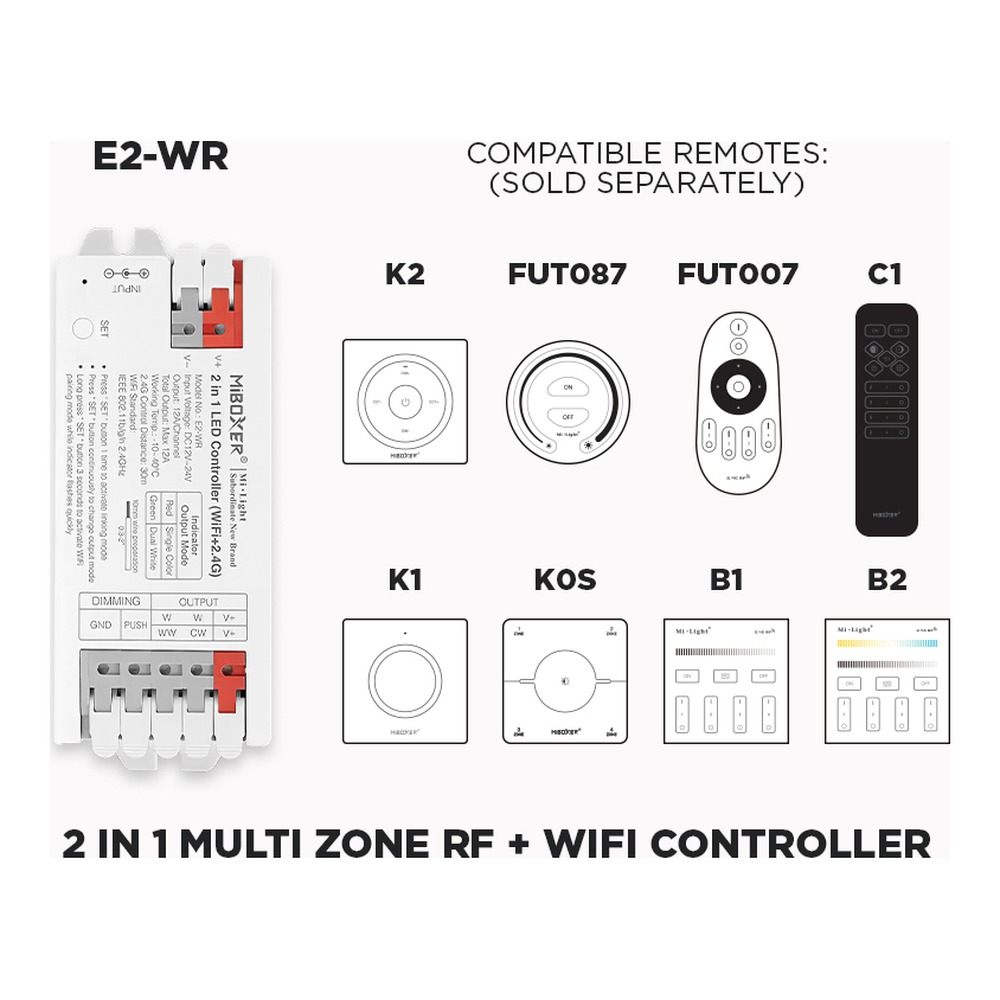

The E2-WR was designed to simplify inventory and installation: instead of stocking a single-colour dimmer and a separate CCT (tunable white) controller, you carry one unit that does both. It supports single colour LED strip and CCT adjustable white LED strip, and it handles 1 to 8 zones with self-repeating operation, meaning each controller relays the signal onward so larger installations stay responsive from one end of the run to the other. At 100.6 mm x 40 mm x 17.6 mm, the redesigned enclosure hides easily above a cabinet, behind a valance or inside an accessible ceiling box.
Light quality and dimming
Stepless dimming is what separates a good install from a great one. Rather than jumping between fixed levels, the E2-WR fades smoothly across the full range, so a kitchen can go from bright task light to a soft evening glow without visible steps. On CCT adjustable white strip, you also slide between warm and cool white to match daylight, mood or time of day. One important note: the E2-WR must be fed by a non-dimmable power supply — it is not compatible with dimmable power supplies, since the dimming happens in the controller itself.
Wiring and electrical details
Installation is tool-free. Strip 10 mm of insulation, insert the conductor and clip it securely — no screw terminals to back out over time. The controller offers dual power inputs: a DC barrel jack for plug-in power supplies and two clips for hardwired power supplies, which covers both the quick plug-in job and the permanent in-wall install. Output is common anode, matching standard single-colour and CCT LED tape. Always respect the stated current limits and split long runs across additional controllers or feeds rather than overloading a single channel.
Technical specifications
Model No.: E2-WR
SKU: E2WR
Brand: LED Montreal
Compatibility: Single Color + CCT White
Input voltage: DC12~24V
Output: 6A / Channel
Total output: Max 12A (4A at 24V or 5A at 12V to comply with Class 2 requirements)
RF: 2.4GHz
RF control distance: 30m
IP rating: iP20
Working temperature: -10~40°C
Output connection: Common anode
Dimensions: 100.6mm x 40mm x 17.6mm
Applications and documentation
In homes, the E2-WR shines under kitchen cabinets, in ceiling coves, along staircases, in walk-in closets and in basement theatre rooms where zone-by-zone control matters. In commercial settings, think retail shelving and display cases, restaurant banquettes, salon stations, reception desks and office millwork — all places where a Wi-Fi LED controller lets staff change scenes without touching the wiring. Because it runs on both 12V and 24V and reaches 30 m by RF, it adapts to small condo projects and larger multi-zone floors alike. The complete technical spec sheet for the E2-WR is available in the Documentation tab — review the current limits and the -10~40°C working range before choosing your power supply and mounting location.
