WALL MOUNTED RF MULTI ZONE PANEL AND-OR CONTROLLER FOR CCT ADJUSTABLE LED STRIP

Name: WALL MOUNTED RF MULTI ZONE PANEL AND-OR CONTROLLER FOR CCT ADJUSTABLE LED STRIP
Brand: LED MONTREAL
SKU: B2KIT
Price: 62.97 CAD
Availability: InStock

SKU: B2KIT

Brand: LED MONTREAL

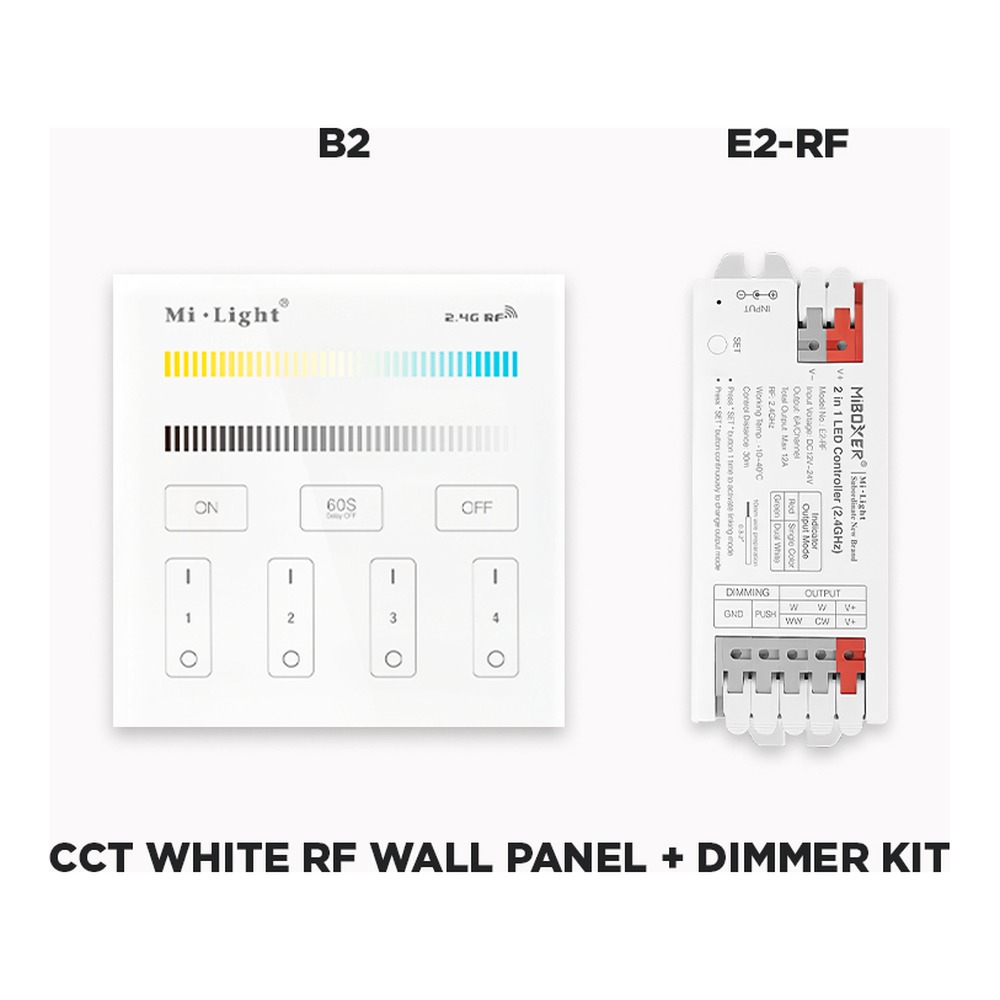

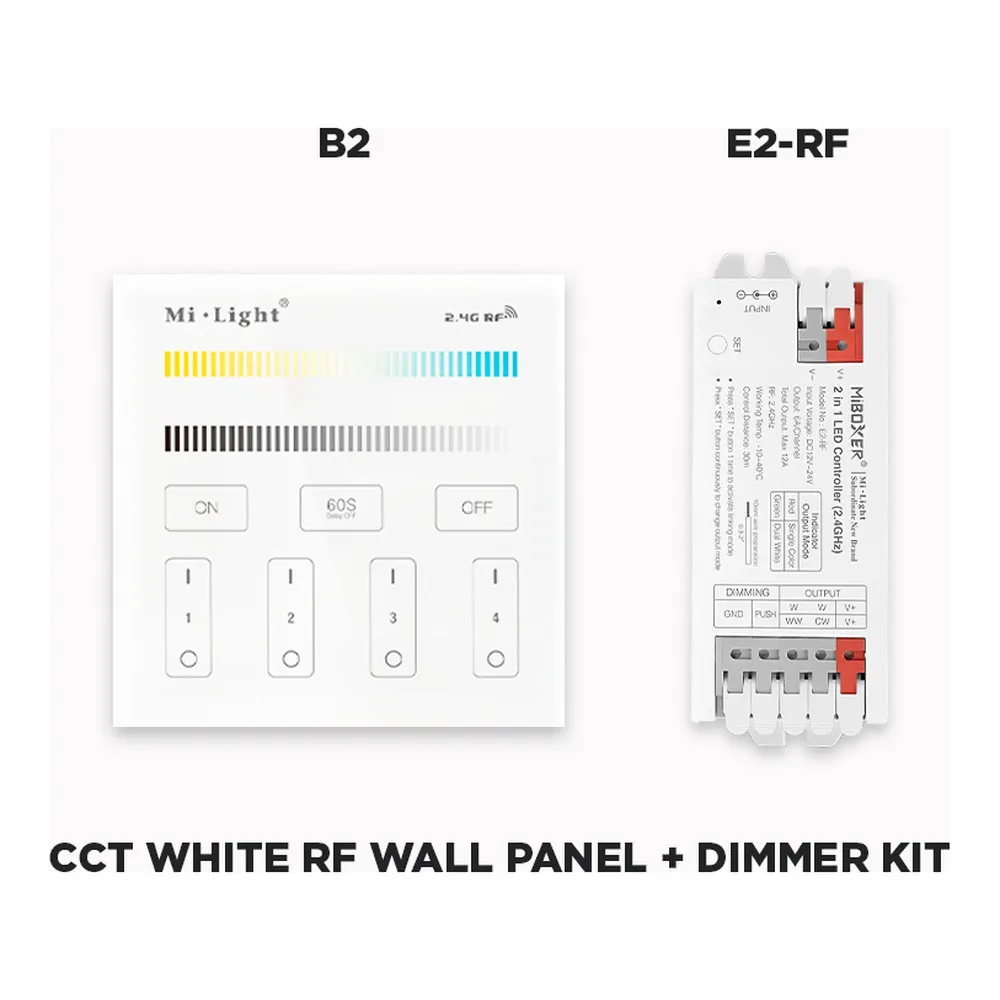

Say goodbye to hunting for a lost remote under the couch. The WALL MOUNTED RF MULTI ZONE PANEL AND-OR CONTROLLER FOR CCT ADJUSTABLE LED STRIP from LED MONTREAL is the elegant tempered-glass touch panel — often called an LED strip wall controller, RF wall switch, multi zone remote or CCT dimmer panel — that lets you command your warm white / cool white adjustable LED strip lights from a single, beautiful spot on the wall. This kit (SKU B2KIT) pairs the B2 wall panel with the matching receiver-controller, so you get both the brain and the interface in one package. Please note that starting from 03-09-2024, the controller included in this kit has been updated from FUT035 to E2-RF.

The B2 panel runs on 3V (2 x AAA batteries) — completely wireless, no wiring, no electrician, no wall cut-out. It transmits at 2.4GHz with a control distance of 30m, and its slim 86mm x 86mm x 16mm glass body mounts with the included double-sided tape or on the surface of your choice. The E2-RF controller delivers 6A per channel for a total output of Max 12A (4A at 24V or 5A at 12V to comply with Class 2 requirements), uses a common anode output connection, measures 100.6mm x 40mm x 17.6mm, carries an iP20 rating and operates from -10~40°C. Its RF link also runs at 2.4GHz over 30m.

This is the finishing touch for CCT adjustable LED strip installations in kitchens, under cabinets, in cove and tray ceilings, headboards, bathroom mirrors, home theatres, basements and finished garages — and just as much in salons, boutiques, restaurants, clinics and offices. Because it is a multi zone system, you can run one panel and still control several separate LED strip lighting zones, warming things up in the evening and switching to crisp cool white for work and cleaning. It is designed to pair with warm white / cool white (CCT White) adjustable LED strips and the matching multi zone controller — a smart, tidy solution for Canadian renovations where running new switch wiring is a headache. Add the B2KIT to your project and give your lighting the wall panel it deserves.

Built to be seen and touched
The B2 wall panel is dressed in fashionable tempered glass with a responsive touch screen, so it looks like a designer wall plate rather than a gadget. Its footprint of 86mm x 86mm x 16mm sits nearly flush against the wall, and because it is fully wireless it can be placed exactly where people reach for a switch — beside a door, at the top of the stairs, next to the bed — without opening the drywall. The E2-RF controller, at 100.6mm x 40mm x 17.6mm, is compact enough to hide inside a cabinet, above a valance, in a cove or behind a headboard, close to the power supply and the start of the LED strip run.

Light quality and control
This kit is built for CCT White strips, meaning tape light that blends warm white and cool white diodes on the same circuit. From the touch panel you slide between a cozy warm glow and a bright, task-friendly cool white, and you dim the whole thing without changing fixtures. Multi zone operation means several areas — island, perimeter cove, under-cabinet run, bathroom mirror — can each answer to their own zone from a single wall mounted panel, which is exactly what open-concept main floors need.

Technical specifications
SKU: B2KIT
Panel model: B2
Compatibility: CCT White
Panel voltage: 3V (2 x AAA batteries)
Transmission frequency: 2.4GH
Panel control distance: 30m
Panel dimensions: 86mm x 86mm x 16mm
Controller: E2-RF
Output: 6A / Channel
Total output: Max 12A (4A at 24V or 5A at 12V to comply with Class 2 requirements)
RF: 2.4GHz
RF control distance: 30m
IP rating: iP20
Working temperature: -10~40°C
Output connection: Common anode
Controller dimensions: 100.6mm x 40mm x 17.6mm

Electrical and installation notes
Wiring is straightforward: power supply to the E2-RF input, then the common anode output to your warm white / cool white strip, respecting polarity and the strip's own voltage. Keep your load inside the stated limits — 6A per channel and a total of Max 12A, with 4A at 24V or 5A at 12V to comply with Class 2 requirements — and split long runs between more than one controller and power supply instead of overloading one. The iP20 rating means dry, indoor locations only, and the -10~40°C working range covers everything from a cool basement to a warm cove ceiling. The panel itself only needs two AAA batteries and the included double-sided tape, so it can be repositioned later if the furniture layout changes.

Applications and documentation
Homeowners use this kit to finish a kitchen renovation with under-cabinet LED strip lighting that shifts from morning-bright to evening-warm; contractors like it because it adds a real wall control to a cove or tray ceiling without a single extra wire; small businesses put the panel at the counter of a salon, café, boutique or clinic so staff can set the mood in seconds. The technical PDF for the WALL MOUNTED RF MULTI ZONE PANEL AND-OR CONTROLLER FOR CCT ADJUSTABLE is available in the Documentation tab — worth a look before you size your power supplies and plan your zones.
