C5 4 ZONE RF REMOTE FOR ALL TYPES OF LED STRIPS

Name: C5 4 ZONE RF REMOTE FOR ALL TYPES OF LED STRIPS
Brand: LED MONTREAL
SKU: C5
Price: 34.97 CAD
Availability: InStock

SKU: C5

Brand: LED MONTREAL

Ever wished one single remote could run every kind of LED strip in your home or shop — the colour-changing ones in the basement, the warm white ones under the kitchen cabinets and the tunable white ones in the office? That is exactly what the C5 does. This 4 zone RF remote from LED MONTREAL is a universal LED strip remote control (also called an RF remote, a wireless dimmer remote or a télécommande RGBW by our Québec customers) built to drive RGB, RGBW, RGB+CCT, single-colour and adjustable-white LED strip lighting from the same handset. No more juggling three or four remotes on the coffee table.

Here is how it works: the C5 gives you 4 independent zones, and each zone can be assigned to a different type of LED strip through the matching receiver. Every zone you want to use needs at least one controller, you can pair several controllers to the same zone, and you do not have to activate all four zones for the system to run. The only rule is that all controllers sharing a zone must be of the same type — put an RGB controller on Zone 1 and every other controller on Zone 1 must be RGB too, so they all answer the same command at the same time. The remote runs on 3V (2 x AAA batteries), transmits at 2.4GH and reaches a control distance of 30m, which means you can dim the living room strip from the kitchen, or the display cases from behind the counter.

The C5 is made for both residential and commercial projects: a basement home theatre with colour scenes on one zone and white cove lighting on another, a restaurant where the bar, the dining room and the terrace each get their own zone, a retail store lighting shelving and signage, or a garage-workshop with plain single-colour strips. Because the radio signal does not need line of sight like an infrared remote, it works through cabinetry and across rooms — handy in Canadian homes with closed basements and finished ceilings. Pair the C5 (SKU C5) with the receiver that matches your strip type and take control of every zone from one hand. Download the technical PDF in the Documentation tab for the full controller list.

One remote, four zones, every type of strip
The C5 solves the most common frustration in LED strip lighting installations: mixing technologies in the same house and ending up with a drawer full of remotes. This RF handset carries 4 separate zones, and each zone is assigned to whatever strip type its receiver supports — RGB, RGBW, RGB+CCT, single colour or CCT adjustable white. Select a zone, adjust it, move to the next. Zones are independent, so Zone 1 can be running a colour scene while Zone 3 simply dims a warm white run under the cabinets.

Technical specifications
SKU: C5
Brand: LED MONTREAL
Voltage: 3V (2 x AAA batteries)
Transmission frequency: 2.4GH
Control distance: 30m
Zones: 4
Strip types supported: RGB, RGBW, RGB+CCT, single colour, CCT adjustable white

Compatible controllers

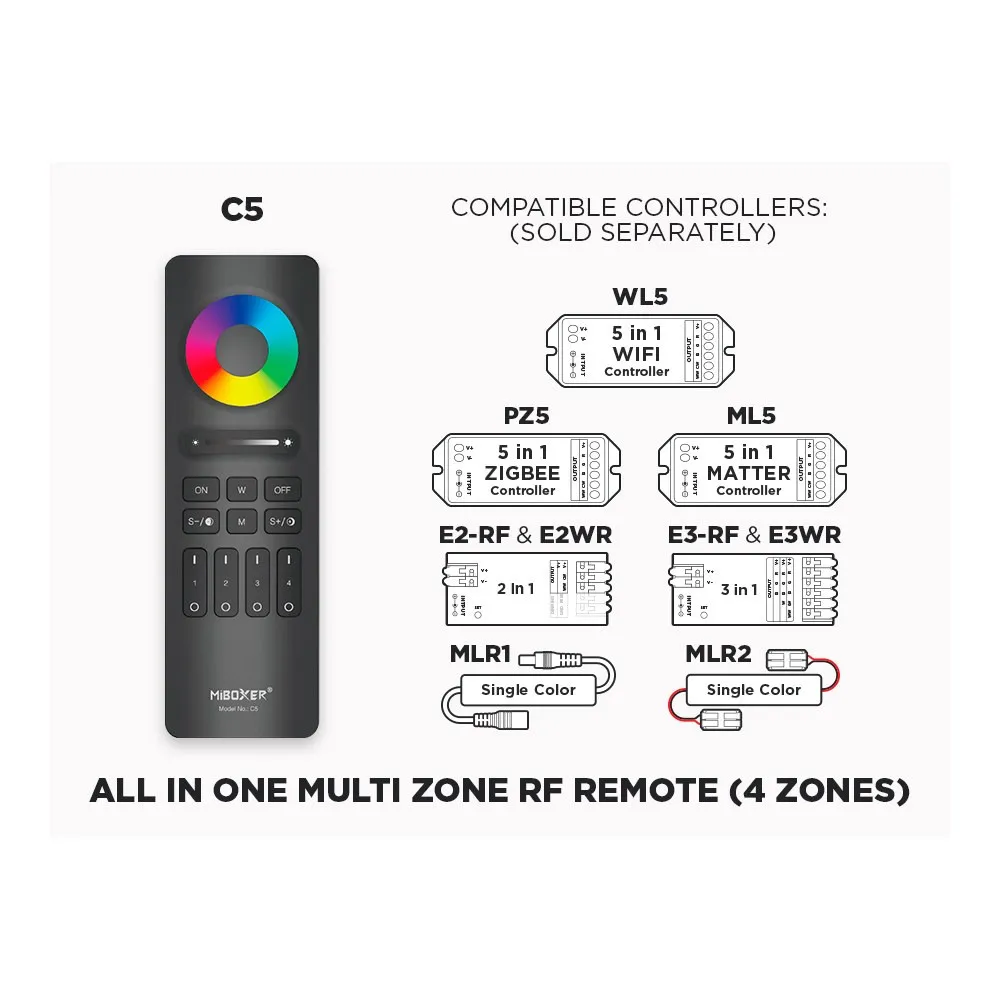

The remote is the transmitter; the controller wired between your power supply and your strip is the receiver, and it must match the strip you are using. For an all-in-one solution, the C5 works with the WL5 WIFI all-in-one controller, the ML5 Matter + Homekit all-in-one controller and the PZ5 Zigbee + WIFI all-in-one controller. For dedicated receivers: single colour uses FUT036; CCT control (adjustable white) uses FUT035 and FUT035 (Original); RGB uses FUT037, FUT037 (Original) and FUT043; RGBW uses FUT038 and FUT044; RGB+CCT uses FUT039, FUT039 (Original) and FUT045. Every zone you plan to use needs at least one of these controllers, several controllers can share a zone, and all controllers on a given zone must be of the same family so they respond identically to each command.

Installation and everyday use
Setup is refreshingly simple: install the 2 x AAA batteries, wire each controller between the low-voltage power supply and its strip, then pair the controller to the zone you want from the remote. Because the C5 communicates by radio at 2.4GH rather than infrared, you do not need to aim it at the receiver — the signal passes through cabinet doors, coves and walls within the 30m control distance, which is a real advantage when the driver and controller are tucked inside a ceiling, above millwork or inside a display case. Plan controller locations where they stay accessible and ventilated, and keep the strips on each zone on the same controller family to avoid mismatched commands.

Where it earns its keep
Homeowners use it for basement theatres, kitchen under-cabinet runs, staircase and cove lighting, bedroom headboards and garage workbenches — one handset for all of it. Contractors like it for condos and rental units where the client wants colour in the living area and clean white light everywhere else. Small businesses run one zone on the display shelves, one on the bar, one on the back counter and one on a colour accent wall for seasonal changes. Full details, including the complete controller list, are in the technical PDF available in the Documentation tab of this page.
