PZ5 - ZIGBEE + WIFI + RF 5-IN-1 CONTROLLER (1 TO 8 ZONES SELF REPEATING)

Name: PZ5 - ZIGBEE + WIFI + RF 5-IN-1 CONTROLLER (1 TO 8 ZONES SELF REPEATING)
Brand: LED MONTREAL
SKU: PZ5
Price: 54.97 CAD
Availability: InStock

SKU: PZ5

Brand: LED MONTREAL

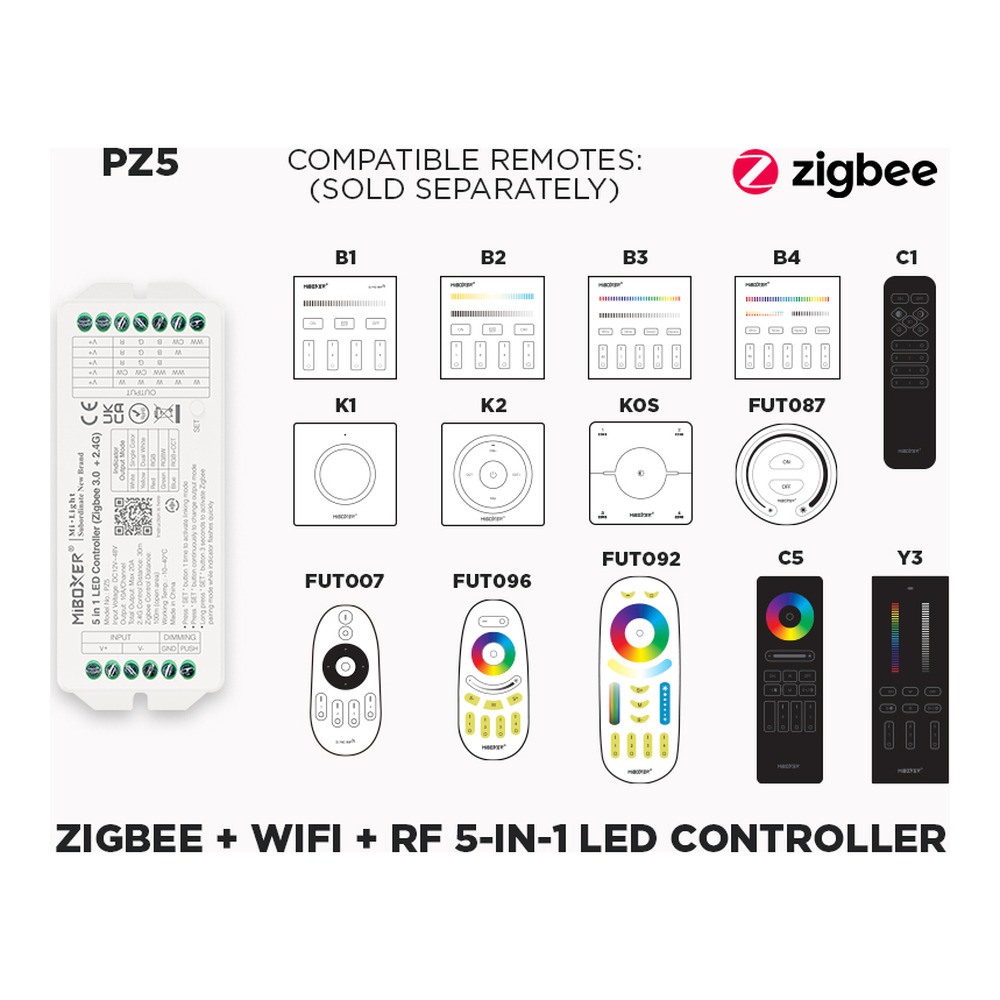

Take control of every LED strip light in the house with one small box: the PZ5 from LED MONTREAL is the first Zigbee controller in our line-up, a hardwired 5-in-1 smart receiver built for people who are tired of juggling three apps and four remotes. Also searched as a Zigbee LED strip controller, a smart dimmer for strip lighting, an RGBW controller or simply a 5-in-1 LED driver-controller, it speaks Zigbee 3.0, Wi-Fi and 2.4 GHz RF all at once. One unit handles every common LED strip lighting type: single colour, variable white (CCT), RGB, RGB + white and RGB + variable white — so the same part number works on the kitchen toe-kick, the cove in the living room and the colour-changing accent behind the TV.

The PZ5 runs on DC 12~48V input with 10A per channel and a total output of Max 20A (4A at 24V or 5A at 12V to comply with Class 2 requirements), which is plenty of headroom for long runs of tape light. Radio side, you get 2.4GHz RF with a 30 m control distance and a Zigbee control distance of 100 m, plus self-repeating operation across 1 to 8 zones so the signal carries from the basement to the second floor instead of dying in the stairwell. It carries an iP20 rating for dry indoor locations, works from -10 to 40°C, uses a common anode output connection, and measures a tidy 119 mm x 47 mm x 23 mm so it hides inside a cabinet, a ceiling cavity or a millwork chase. Eighteen built-in colour-changing modes are on board, along with a Do Not Disturb mode (on by default) that keeps your strips from blasting back to full brightness after a power outage.

This is the controller for a basement smart lighting retrofit, a restaurant bar, a retail display wall, a home theatre or an office reception cove — anywhere a client says "I want it on my phone and on voice." It pairs with your existing Zigbee gateway, works with popular ecosystems like Philips Hue, answers to Alexa and Google Home voice commands, runs from a mobile app, or from a 2.4 GHz remote (sold separately). Canadian homes with thick walls and long hallways especially benefit from the self-repeating zones. Grab the PZ5 and give your LED strips the brain they deserve — the technical PDF is in the Documentation tab.

One controller, five strip types
The PZ5 is a 5-in-1 hardwired receiver, which means you stock one part instead of five. It drives single colour, CCT variable white, RGB, RGBW and RGBCCT (RGB + variable white) LED strip lights from the same terminals, using a common anode output connection — the standard wiring found on the vast majority of flexible tape light. On a job where the kitchen gets warm white, the games room gets RGB and the bathroom gets tunable white, the same controller model covers all three, and your programming habits carry from one room to the next.

Radios, zones and self-repeating range
Three control paths live in one enclosure: Zigbee 3.0, Wi-Fi and 2.4GHz RF. Zigbee control distance is rated at 100m and RF control distance at 30m, and the unit supports 1 to 8 zones with self-repeating operation — each controller extends the mesh for the next one, so a long bungalow, a split-level or a commercial floor plate stays responsive without extra hardware. Connect it to your existing Zigbee gateway, or run it through popular ecosystems like Philips Hue. Voice control is available through Alexa and Google Home, and day-to-day dimming, colour picking and scene recall happen in the mobile app or on a 2.4 GHz remote (sold separately). Eighteen built-in colour-changing modes cover parties, holidays and slow ambient fades, and the Do Not Disturb mode — active by default — stops the lights from snapping back to 100% brightness when power returns after an outage.

Technical specifications
Model No.: PZ5
Compatibility: Single Color + CCT White + RGB + RGBW + RGBCCT
Input Voltage: DC12~48V
Output: 10A / Channel
Total Output: Max 20A (4A at 24V or 5A at 12V to comply with Class 2 requirements)
RF: 2.4GHz
RF Control Distance: 30m
ZIGBEE Control Distance: 100m
IP Rating: iP20
Working Temperature: -10~40°C
Output Connection: Common anode
Dimensions: 119mm x 47mm x 23mm
Brand: LED MONTREAL

Wiring and installation notes
The PZ5 is a hardwired device: it sits between a DC power supply (12 to 48V, matched to the voltage of your tape) and the strip itself. Respect the 10A per channel figure and the Max 20A total output, and keep in mind the Class 2 limits noted on the spec sheet — 4A at 24V or 5A at 12V. For long runs or high-density tape, split the load across more than one controller and let the self-repeating zones keep everything in sync. The iP20 rating means dry indoor locations only, so mount it inside a cabinet, an accessible ceiling cavity, a millwork chase or an electrical closet, never in a shower niche or outdoors. Working temperature is -10~40°C; give it a little air if it's tucked behind a valance. At 119mm x 47mm x 23mm it disappears almost anywhere, but always leave access for pairing and firmware updates.

Where it earns its keep — and the documents
Think basement renovations with cove lighting, under-cabinet kitchen runs, stair nosings, hotel corridors, restaurant bars and cafés, retail shelving, home theatres, gyms and office reception walls. Contractors love it because one SKU covers the whole building and the mesh grows as zones are added; homeowners love it because the phone, the voice assistant and the remote all do the same thing. The full technical spec sheet (PZ5 - 5 IN 1 ZIGBEE RF CONTROLLER FOR LED STRIPS 1 TO 8 ZONES SELF) is available in the Documentation tab — download it before you size your power supply, and order the PZ5 with confidence.
