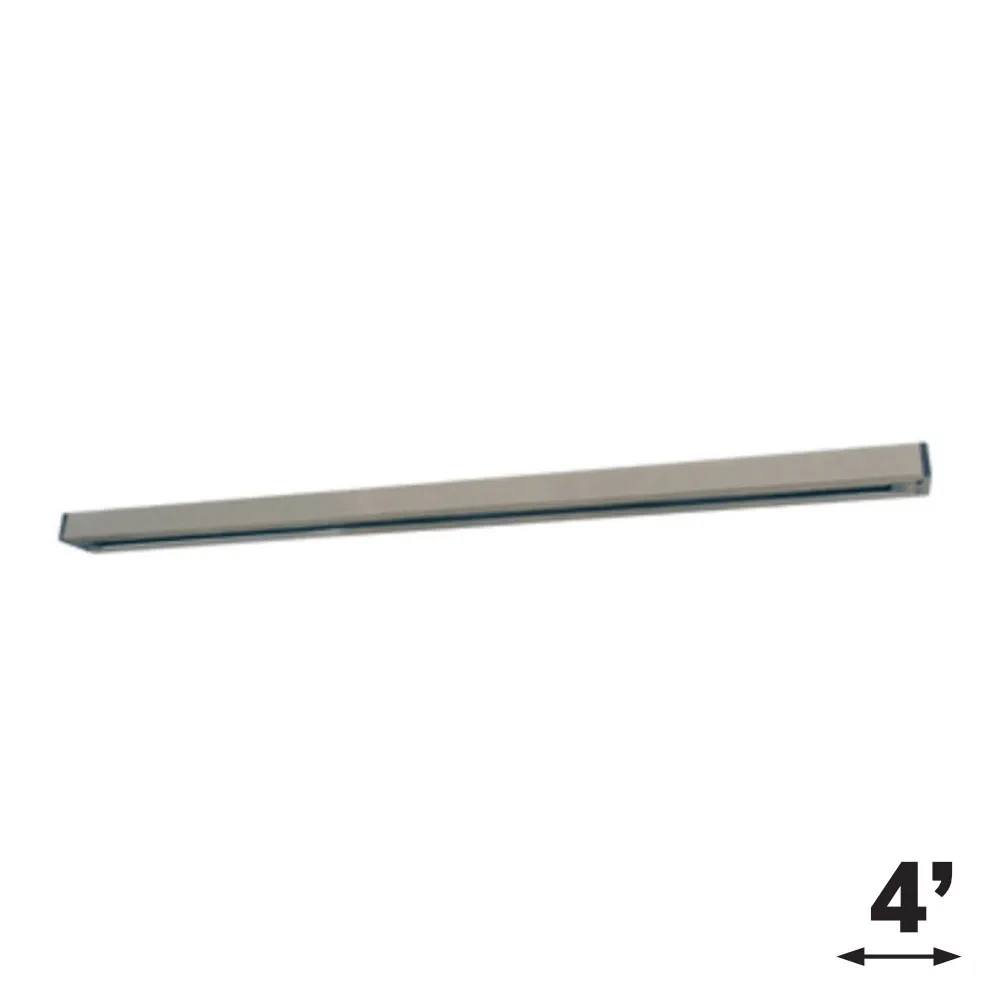

A full-size run in brushed nickelThe LCTK-6004-BN is a 4 ft (48 in, 1,219 mm)
brushed nickel track section for residential and commercial projects. At this length, it provides a real run of light on its own, with enough room to space
track light heads along a counter or a wall. The track is
extruded aluminum with flat, solid integral conductors rated at 20 amps; the copper conductors, in 12 gauge, are held by PVC insulators and concealed in an insulating thermoplastic insert with a low profile.
Electrical informationThis is a
single-circuit track for 120 V applications. Its single hot and neutral conductors are rated for 20 amps per branch circuit, and the system electrical rating is
20 A, 120 V, 60 Hz. The
polarity groove on the face of the track indicates the location of the grounding conductor, which keeps every feed and connector oriented the same way along the run. Switch off the breaker before any work and have the connection made by a qualified electrician, following the electrical code in your province.
System accessoriesThe accessories of the same track system, listed on the spec sheet in the Documentation tab, are sold separately. To bring in power, choose a live end at the end of the track, a live end with canopy fed from a junction box, a live-end conduit feed, a
center feed that powers the track from any point along its length, or a wired end that takes power from a receptacle. To shape the layout, use an I-connector for straight joints at 180°, an L-connector for 90° corners, a T-connector, an X-connector or a flexible connector for varying angles, and close the run with an
end cap. A hollow stem rod kit, with ceiling canopy, mounting brackets and hardware, lets you suspend the track.
Design ideasAt home, a
brushed nickel 4 ft track suits kitchen islands with nickel hardware, dining rooms, long entryways, family rooms and home offices in transitional or contemporary styles. In business, it lends a refined touch to jewellery counters, wine shops, boutique hotel lobbies, hair salons and professional offices. For a longer run in the same finish, add the
brushed nickel 2 ft track; for other décors, the same length comes as a
silver 4 ft track or a
white 4 ft track. With
LED track light heads, you can re-aim the light as your space evolves.
Technical specificationsModel: LCTK-6004-BN
Length: 4 ft, 48 in (1,219 mm)
Finish: brushed nickel
Material: extruded aluminum
Circuit: single circuit, 120 V
Electrical rating: 20 A, 120 V, 60 Hz
Conductors: flat, solid copper, 12 gauge
Documentation: spec sheet in the Documentation tab
