8 FEET TRACK

Name: 8 FEET TRACK
Brand: LEDCO
SKU: LCTK-6008-BK
Price: 65.97 CAD
Availability: InStock

SKU: LCTK-6008-BK

Brand: LEDCO

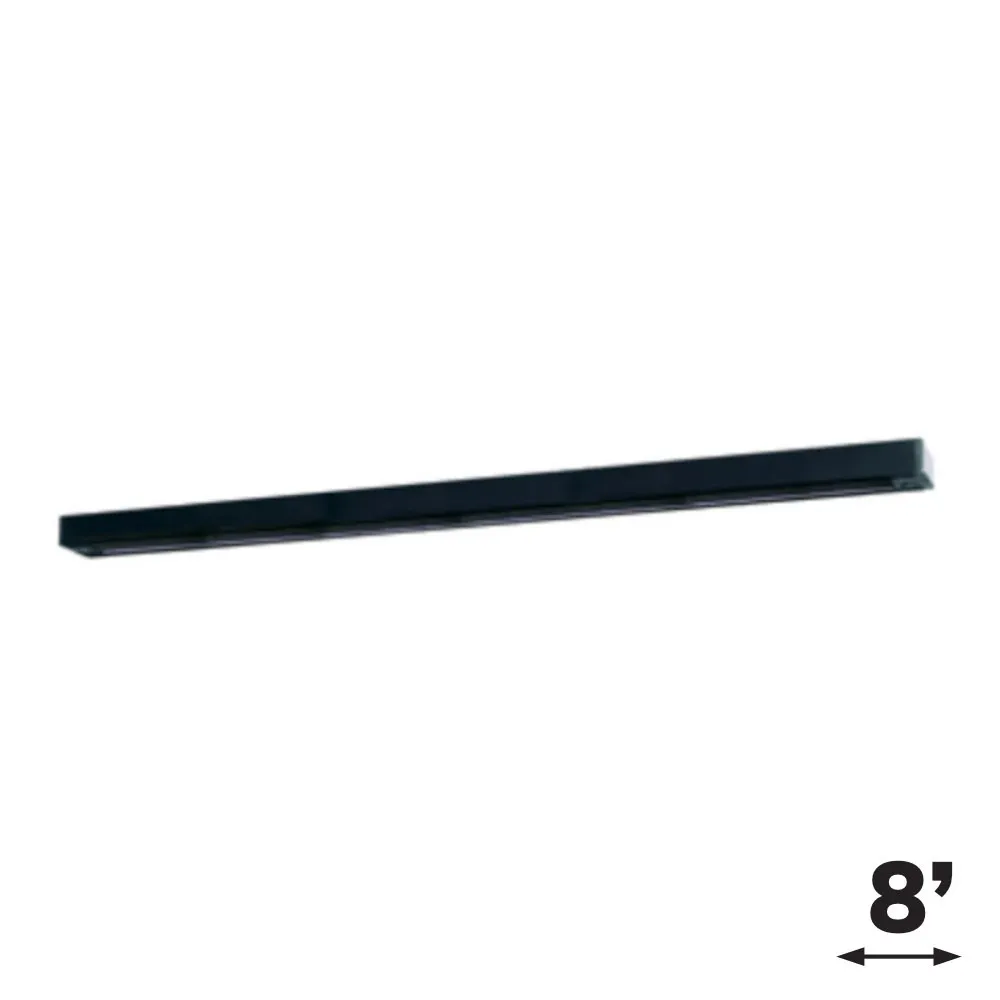

Long runs of light with fewer joints: that is what this 8 ft track section in black (LCTK-6008-BK) brings to your ceiling. It is a single-circuit lighting track that carries power along its entire length, so you can position track light heads wherever the light needs to go and move them to a new spot when displays or furniture change. Known as a track rail, a track lighting rail, a ceiling track or simply a track section, it is the foundation of any track lighting project, from an open-concept living room to a restaurant dining room or a retail aisle.

At 96 in (2,438 mm), this black extruded aluminum track covers a long stretch of ceiling in one piece. Inside, copper electrical conductors are concealed in an insulating thermoplastic, low-profile cross-section, and the flat, solid integral conductors are rated for 20 amps. The single-circuit design is made for 120V applications, with a system electrical rating of 20A, 120V, 60Hz, and a polarity groove on the face of the track marks the location of the grounding conductor for a correct, worry-free installation. The black finish draws a sharp, contemporary line on a white ceiling and blends right into a dark, open ceiling.

Picture it above a long kitchen island in a Toronto loft, along the ceiling of a microbrewery in Sherbrooke or down the aisle of a boutique in Winnipeg. It connects to other sections with the compatible track connectors of the same system, so you can extend a run with the 4-foot track in black or the 2-foot track in black to fit your exact layout. Working with a lighter décor? The same 8-foot section also comes as an 8-foot track in white. Call in a qualified electrician, add your favourite heads and give your space the flexible lighting it deserves!

A long section for big spaces
With its 96 in (2,438 mm) length, this black track section spans wide rooms and long counters with fewer connections, which means fewer joints to line up and a cleaner line overhead. Made of extruded aluminum, it uses PVC insulators to hold its 12 gauge flat conductor wiring, and its copper electrical conductors are concealed in an insulating thermoplastic, low-profile cross-section. The black finish creates a graphic line that suits industrial, modern and commercial interiors.

Electrical characteristics
Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways, and this single-circuit track is intended for 120V applications. Its single hot and neutral conductors are rated for 20 amps per branch circuit, for a system electrical rating of 20A, 120V, 60Hz. A polarity groove on the face of the track indicates the location of the grounding conductor. Power can enter at the end of the track through a live-end, anywhere along it through a center feed connected to a junction box, through a live-end conduit feed for top or end feed, or from a receptacle through a wired-end. Cut the power at the breaker and hire a licensed electrician who follows the electrical code in your province.

Connectors and accessories
These tracks can be joined together using any of the compatible track connectors: an I-connector for a straight joint at 180°, an L-connector for a 90° corner, a T-connector for three sections at 90°, an X-connector for four sections at 90° and a flexible connector for varying angles. Finish each run with an end cap, and use a hollow stem rod kit, with ceiling canopy, mounting brackets and hardware, to suspend the track from the ceiling. Accessories are not included. When a run calls for a shorter piece, pair it with the 4-foot track in black or the 2-foot track in black; the same 8-foot section also comes as an 8-foot track in brushed nickel.

Ideas for every project
In a restaurant, a black track above the banquettes lets you highlight each table; in a boutique, it follows the merchandise from one season to the next. At home, it brings focused light to a basement family room, a home office or a hallway lined with photos. Contractors like the long length on commercial track lighting jobs, from a café in Québec City to an office in Moncton, and it is made for residential and commercial projects alike. The spec sheet, with drawing, ordering guide and accessory list, is in the Documentation tab.

Technical specifications
Model: LCTK-6008-BK
Type: single-circuit track section
Length: 8 ft, 96 in (2,438 mm)
Profile: 21 mm x 35 mm
Material: extruded aluminum
Finish: black
Conductors: copper, flat and solid, rated 20 A
Electrical rating: 20A, 120V, 60Hz
