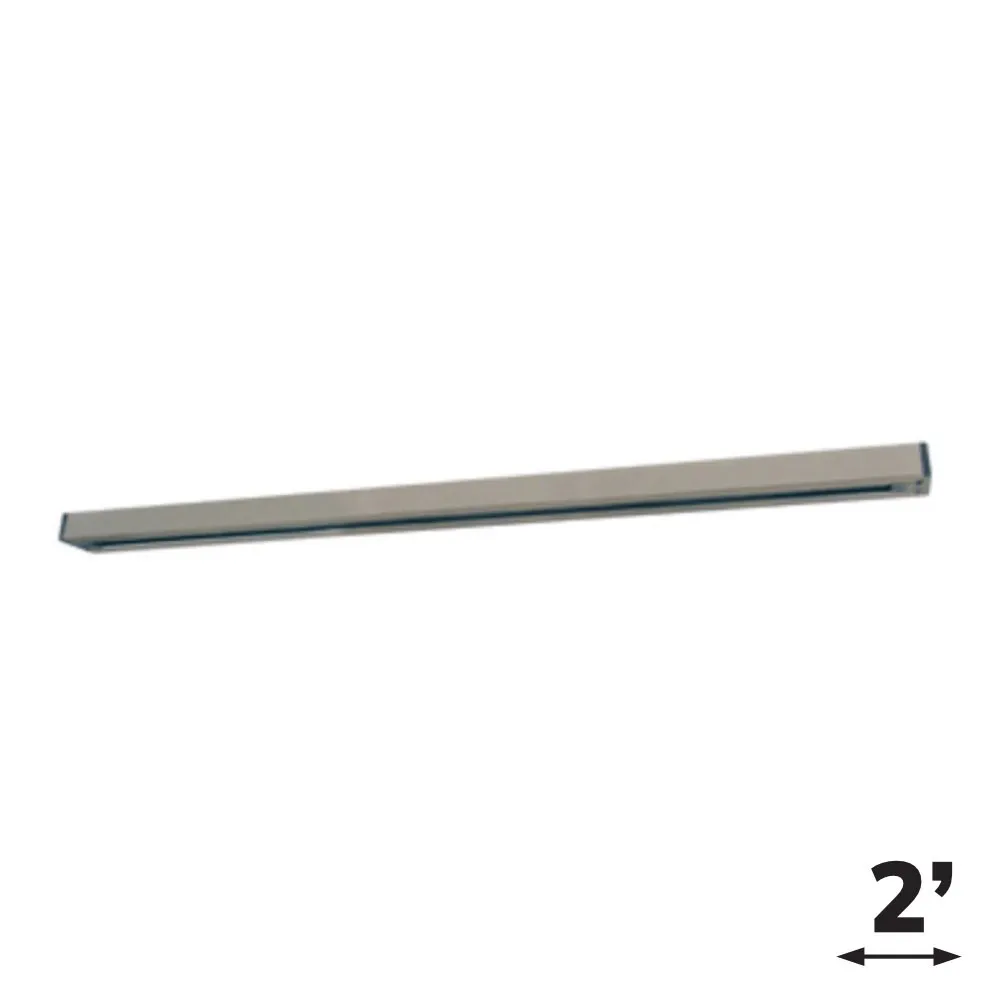

Built for flexible lightingThe LCTK-6002-SL is a
silver track section, 2 ft long (24 in, 610 mm), designed for residential and commercial projects. Its
extruded aluminum body houses flat, solid integral conductors rated at 20 amps; the copper conductors, in 12 gauge, sit in PVC insulators and are concealed in an insulating thermoplastic insert with a low profile. Once powered, the track becomes a line where you can place, reposition and aim your
track lighting heads wherever they are needed.
Electrical characteristicsThis
single-circuit track is intended for 120 V applications. Its single hot and neutral conductors are rated for 20 amps per branch circuit, and the system electrical rating is
20 A, 120 V, 60 Hz. The
polarity groove on the face of the track indicates the location of the grounding conductor, which helps keep feeds and connectors in the right orientation. Always turn off the power at the breaker and entrust the connection to a qualified electrician, following the electrical code in your province.
Completing the systemThe spec sheet, available in the Documentation tab, lists the accessories of the same track system, all sold separately. For power, choose a live end (from the end of the track, no canopy), a live end with canopy (from a junction box), a live-end conduit feed, a
center feed that powers the track from any point along its length, or a wired end that takes power from a receptacle. For the layout, use an I-connector (180°), an L-connector (90°), a T-connector, an X-connector or a flexible connector for varying angles, then close the run with an
end cap; a hollow stem rod kit lets you suspend the track. To extend the run in the same finish, add the
4 ft silver track; this 2 ft section also comes as a
black 2 ft track and a
white 2 ft track.
Where silver track works bestIn homes, a
silver track looks sharp over a kitchen peninsula with stainless steel appliances, above a home office desk, along a collection of books or records, in a condo entryway or over a bar cart. In business, it suits tech offices, gallery-style shops, eyewear and electronics displays, hair salons and reception areas, anywhere a clean metallic accent fits the décor. Pair it with
LED track light heads and you can re-aim the light whenever your furniture or displays move, a big plus for spaces that evolve with the seasons.
Technical specificationsModel: LCTK-6002-SL
Length: 2 ft, 24 in (610 mm)
Finish: silver
Material: extruded aluminum
Circuit: single circuit, 120 V
Electrical rating: 20 A, 120 V, 60 Hz
Conductors: flat, solid copper, 12 gauge
Documentation: spec sheet in the Documentation tab
