4 FEET TRACK

Name: 4 FEET TRACK
Brand: LEDCO
SKU: LCTK-6004-BK
Price: 39.97 CAD
Availability: InStock

SKU: LCTK-6004-BK

Brand: LEDCO

A 4 ft run is the sweet spot for many rooms: long enough to light a kitchen island, a dining table or a gallery wall, short enough to fit almost anywhere. The 4 ft track LCTK-6004-BK is a black track lighting rail that turns a single power connection into several adjustable points of light. Whether you are searching for 4ft track lighting, a 4 foot track section or a ceiling rail for track light heads, this is the versatile middle length of the family, easy to use on its own or as part of a longer run. And since heads can be repositioned and re-aimed along the rail, the light follows you whenever you rearrange the furniture or the displays.

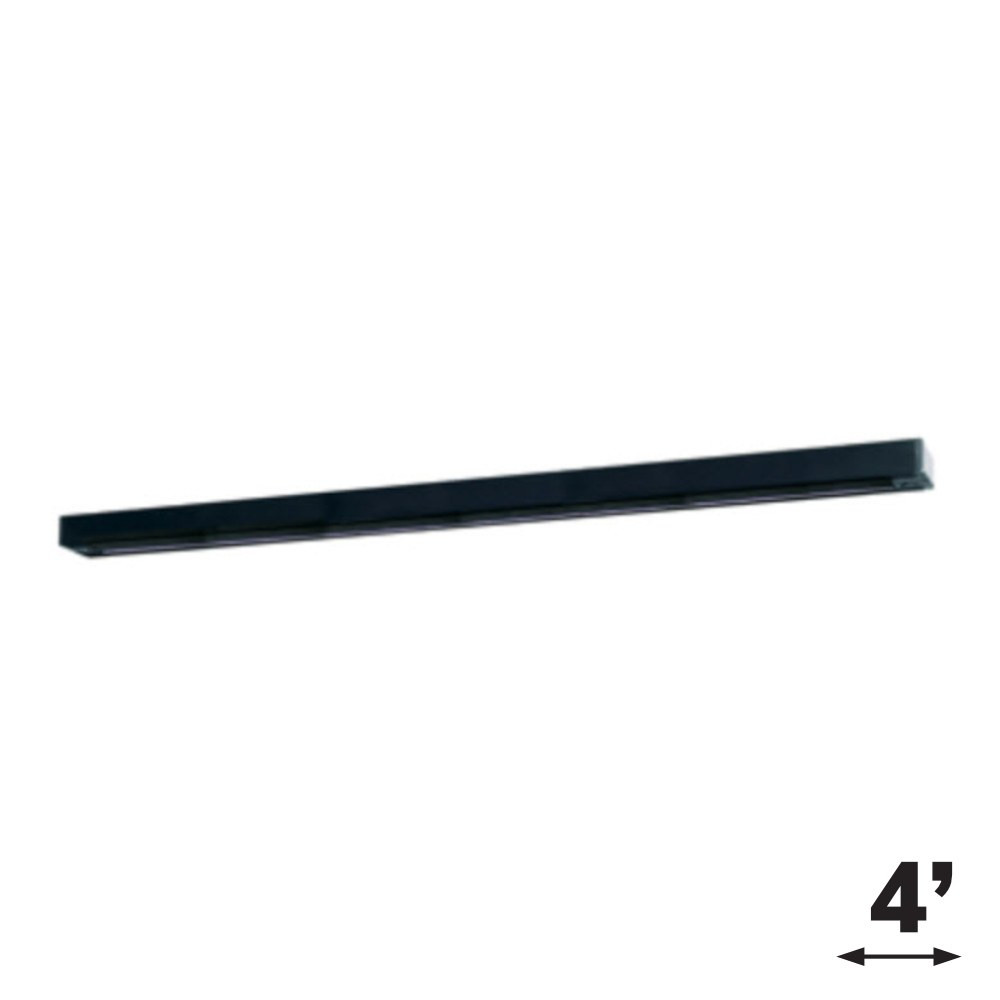

Made of extruded aluminum in a black finish, it measures 48 in (1,219 mm). Flat, solid 12-gauge copper conductors are held by PVC insulators and concealed in an insulating thermoplastic insert, and this single-circuit track carries a system electrical rating of 20 A, 120 V, 60 Hz for 120 V applications. A polarity groove on its face indicates the grounding conductor, a helpful cue when you line up feeds and connectors.

Picture it above a walnut dining table in a Hamilton home, over the bar of a craft brewery in Sherbrooke or across a feature wall in a Saskatoon boutique: black track adds a bold, architectural line. Need a longer run? Join it to the 8 ft track or the 2 ft track in black with the compatible connectors of the system (sold separately), or choose the white 4 ft track for a lighter ceiling. Have a qualified electrician make the connection and add your LED track light heads. Add it to your project today!

The versatile middle length
With its 48 in (1,219 mm) length, the LCTK-6004-BK is a very flexible piece of the family: long enough for a real run of track lighting on its own, and easy to combine with 2 ft and 8 ft sections when the room calls for more. The track is extruded aluminum in black, with flat, solid integral conductors rated at 20 amps. Its copper conductors, in 12 gauge, are held by PVC insulators and concealed in an insulating thermoplastic insert with a low profile.

Electrical characteristics
This single-circuit track is designed for 120 V applications, with single hot and neutral conductors rated for 20 amps per branch circuit. The system electrical rating is 20 A, 120 V, 60 Hz. A polarity groove on the face of the track shows the location of the grounding conductor, so feeds and connectors can be installed in the correct orientation. Turn the power off at the breaker before any work, and have a qualified electrician make the connection in line with the electrical code of your province.

Feeds, connectors and mounting
The spec sheet, found in the Documentation tab, lists the accessories of the same track system, sold separately. Power the track through a live end, a live end with canopy fed from a junction box, a live-end conduit feed, a center feed placed anywhere along the track, or a wired end that takes power from a receptacle. Build your layout with track connectors: an I-connector at 180°, an L-connector at 90°, a T-connector, an X-connector or a flexible connector for varying angles, then finish with an end cap. A hollow stem rod kit, with ceiling canopy, mounting brackets and hardware, lets you suspend the track from the ceiling.

Ideas for a 4 ft black track
At home, a 4 ft track is a natural fit over a kitchen island or a dining table, along a hallway, above a fireplace wall, across a home office or along a staircase. In business, it lights a retail wall, a restaurant counter, a salon station, a small gallery or a reception area. Black track on a white ceiling draws a crisp line that suits modern, industrial and farmhouse décors. To go further, combine it with the black 8 ft track or the black 2 ft track; for other décors, this length also comes as a brushed nickel 4 ft track and a silver 4 ft track.

Technical specifications
Model: LCTK-6004-BK
Length: 4 ft, 48 in (1,219 mm)
Finish: black
Material: extruded aluminum
Circuit: single circuit, 120 V
Electrical rating: 20 A, 120 V, 60 Hz
Conductors: flat, solid copper, 12 gauge
Documentation: spec sheet in the Documentation tab
