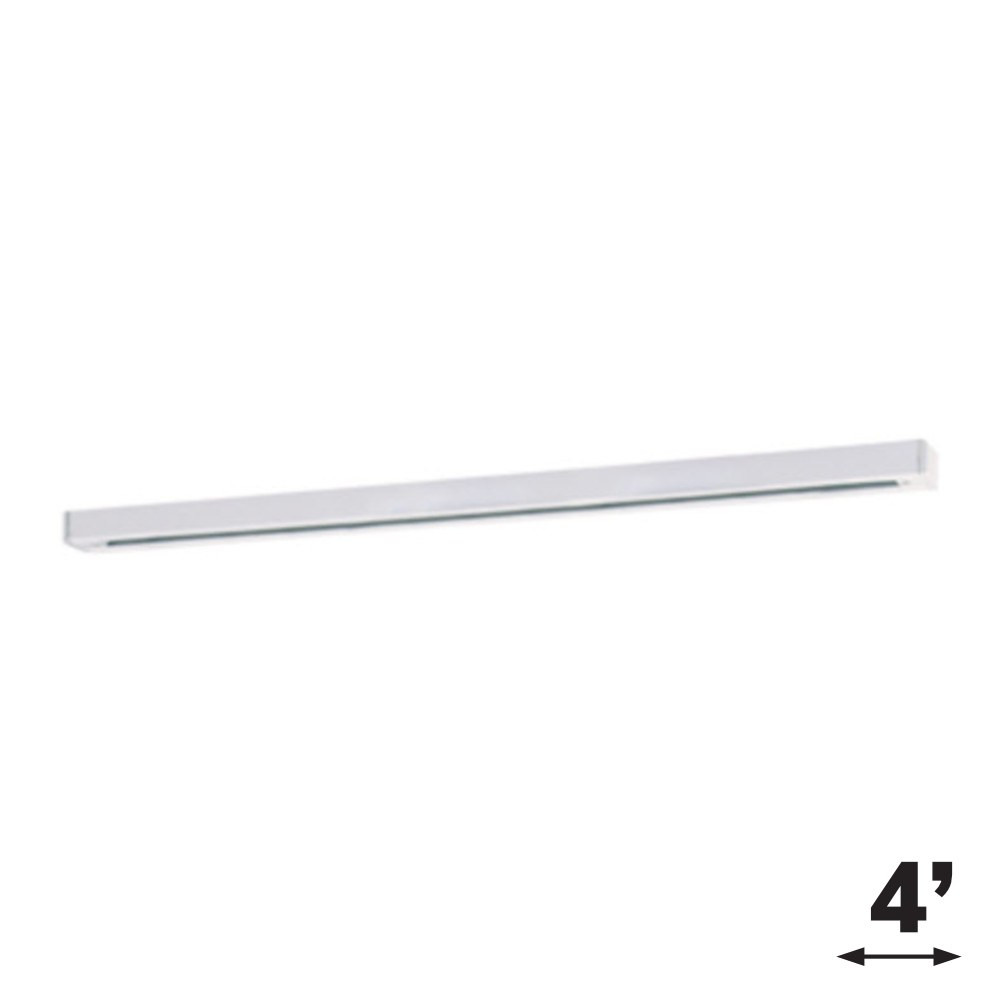

4 FEET TRACK - LCTK-6004-WH

Name: 4 FEET TRACK - LCTK-6004-WH
Brand: LEDCO
SKU: LCTK-6004-WH
Price: 39.97 CAD
Availability: InStock

SKU: LCTK-6004-WH

Brand: LEDCO

Want lighting that follows your décor instead of dictating it? This 4 ft track section in a crisp white finish (LCTK-6004-WH) is the backbone of a track lighting system: a single-circuit track rail that carries power along its length so you can place your track light heads exactly where the light is needed, then move them when the room changes. Often searched as 4ft track lighting, a lighting track, a track rail or a track section, it turns one power feed into a flexible line of light for kitchens, living rooms, hallways, galleries, boutiques and offices.

Measuring 48 in (1,219 mm), this extruded aluminum track conceals its copper conductors inside an insulating thermoplastic, low-profile cross-section, so the rail stays slim and discreet on the ceiling. Its flat, solid integral conductors are rated for 20 amps, and the 12 gauge flat conductor wiring is held in place by PVC insulators. Designed for 120V applications, the system carries an electrical rating of 20A, 120V, 60Hz. A polarity groove on the face of the track shows where the grounding conductor sits, which makes it easy to orient connectors and fixtures correctly. The white finish blends into most ceilings and walls.

From a condo kitchen in Montréal to a gallery wall in a Calgary home or a boutique in Halifax, track lighting puts light on islands, artwork, shelving and displays, and this rail is where it all starts. It joins other sections with the compatible track connectors of the same system (straight, L, T, X and flexible), and it pairs with the 2-foot track in white when your run needs a little more length. Prefer a darker look? The same section also exists as a 4-foot track in black. Have the connection made by a qualified electrician, add your heads, and enjoy a ceiling that finally works as hard as you do!

Built to carry power, cleanly
The 4-foot single-circuit track is made of extruded aluminum. Its flat, solid integral conductors are rated for 20 amps, and the copper electrical conductors are concealed in an insulating thermoplastic, low-profile cross-section, with PVC insulators holding the 12 gauge flat conductor wiring. The result is a rail that stays thin and tidy overhead while it supplies power to your track lighting heads in flexible ways. The white finish suits bright kitchens, white ceilings and gallery walls where the hardware should disappear.

Electrical details and installation
This single-circuit track is intended for 120V applications: its single hot and neutral conductors are rated for 20 amps per branch circuit, for a system rating of 20A, 120V, 60Hz. Power reaches the track through a feed piece: a live-end at the end of the track, a center feed anywhere along the track from a junction box, or a wired-end that takes power from a receptacle. The polarity groove on the face of the track indicates the location of the grounding conductor, so every connector and fixture goes in the right way. Turn the power off at the breaker and have a qualified electrician make the connection according to the electrical code in your province.

Design your layout
Sections are joined with the compatible track connectors: an I-connector links two sections at 180°, an L-connector at 90°, a T-connector joins three sections at 90°, an X-connector joins four, and a flexible connector sets two sections at varying angles. An end cap finishes the run neatly, and hollow stem rod kits with ceiling canopy, mounting brackets and hardware let you suspend the track from the ceiling. Accessories are not included with the track. To adjust the length of a run, add the 2-foot track in white; the same 4-foot section also comes as a 4-foot track in brushed nickel or a 4-foot track in silver.

Where it shines
At home, a white ceiling track over a kitchen island, along a hallway or above a gallery wall lets you aim light at the counter, the artwork or the bookcase, then re-aim it when you rearrange. In business, commercial track lighting in boutiques, restaurants, galleries and offices follows the displays as they change. From a bungalow renovation in Ottawa to a new retail space in Québec City, it is made for residential and commercial projects alike. The spec sheet, with its drawing, ordering guide and accessory list, is in the Documentation tab.

Technical specifications
Model: LCTK-6004-WH
Type: single-circuit track section
Length: 4 ft, 48 in (1,219 mm)
Profile: 21 mm x 35 mm
Material: extruded aluminum
Finish: white
Conductors: copper, flat and solid, rated 20 A
Electrical rating: 20A, 120V, 60Hz
