A complete kit, not a pile of parts

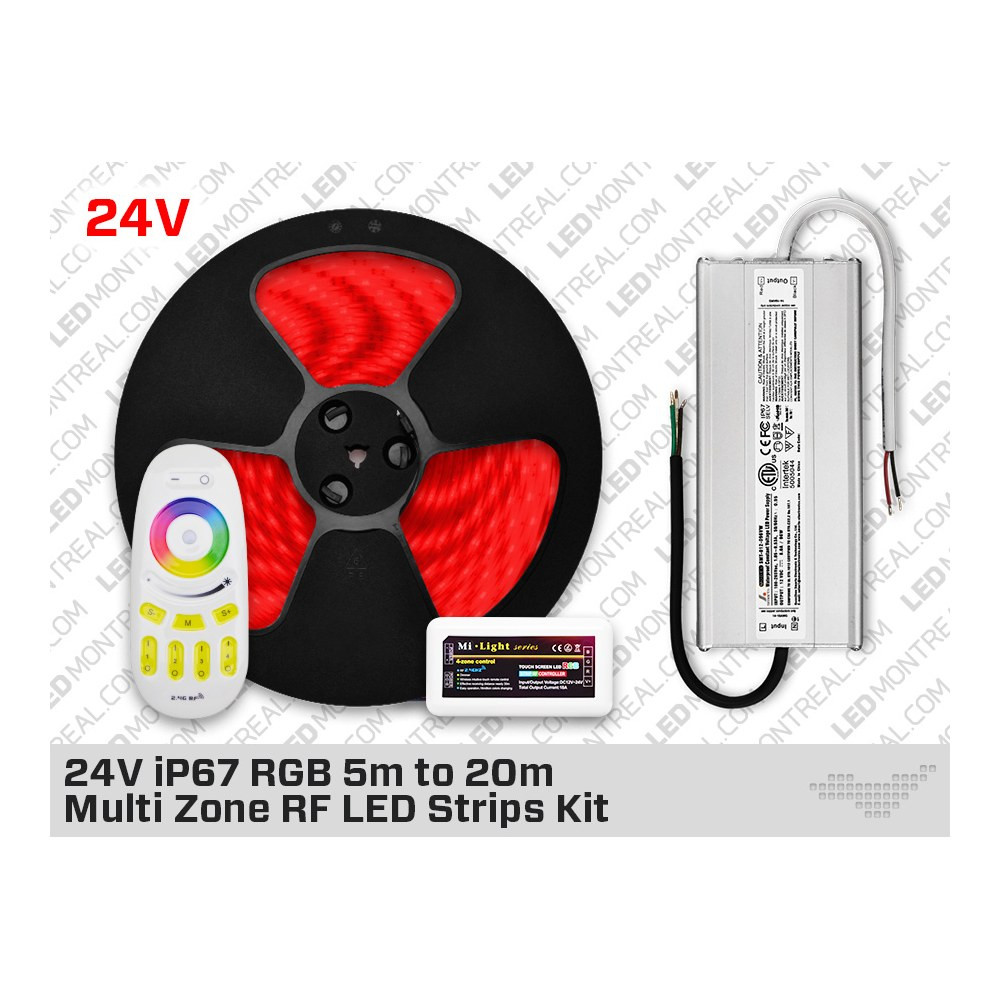

The beauty of this LED MONTREAL kit is that every piece is chosen to work with the others. In the box you get 1 to 4 sections of 5m RGB CNDLUX IP67 outdoor rated LED strip at 30 LEDs per meter, one 24V IP67+ outdoor rated power supply with the wattage according to the chosen length, one RF Multi Zone controller and one RF Multi Zone remote. That means no mismatched drivers, no controller that speaks the wrong protocol and no last-minute run to find a connector. You pick a total length between 5m and 10m, and the kit arrives sized for the job.
RGB 5050 light quality
The 5050 RGB LED chip is the classic choice for colour work: each diode carries red, green and blue emitters, so the strip mixes millions of shades and can also produce a bright white-ish blend for general accent light. At 30 LEDs/m, the diodes are spaced for smooth, even colour washes along walls, ceiling coves and railings, which is exactly what you want for a colour changing LED strip used as architectural accent lighting rather than task lighting. Diffusing the strip inside an aluminum profile with a frosted lens softens the individual dots even further and gives you a continuous line of light.
Technical specifications
SKU: UL24RGB520M
Brand: LED MONTREAL
Strip type: RGB 5050 CDNLUX LED strip
Voltage: 24V low voltage
LED density: 30 LEDs per meter
Total length options: 5m to 10m (1 to 4 sections of 5m)
Ingress protection: IP67 strip, IP67+ outdoor rated power supply
Power supply: 24V, wattage according to chosen length, maximum 96 watts each
Control: RF Multi Zone controller with RF Multi Zone remote
Use: indoor and outdoor rated, residential and commercial
Electrical, control and installation notes
Working on 24V is friendlier than line voltage: the strip itself runs on safe low voltage, so you can route it along railings, under benches and inside coves without heavy conduit. Because of building codes and UL certification, each power supply is restricted to 96 watts, so a long or multi-zone installation simply uses more than one supply and controller — and the MultiZone system links them wirelessly so a single remote still drives the whole show. That is the trick for lighting a full backyard: several 10-meter systems, one remote, one gesture. Keep the power supply somewhere accessible and protected, feed the strip from the marked input end, respect the polarity and colour channels at the connections, and seal any cut or joint carefully so the IP67 LED tape keeps its outdoor rating. Clean and dry the mounting surface before sticking the strip down, and use mounting clips or an aluminum channel on anything you will wash, brush against or expose to wind.
Where it earns its keep
Outdoors, this is the kit for gazebos, pergolas, covered terraces, deck stair risers, balcony railings, RV awnings and garden features that need to survive a Canadian winter. Indoors, it turns basements, home theatres, bars, restaurants, retail shelving, reception desks and gaming setups into something with personality, and the remote lets a client change the mood in seconds. Contractors use it as a reliable add-on for a deck or landscape package because everything ships together and installs the same way every time. Consult the Documentation tab for any files posted for this product, and if you are comparing lengths or planning a multi-zone layout, measure your runs first and order SKU UL24RGB520M in the length that matches your project.
