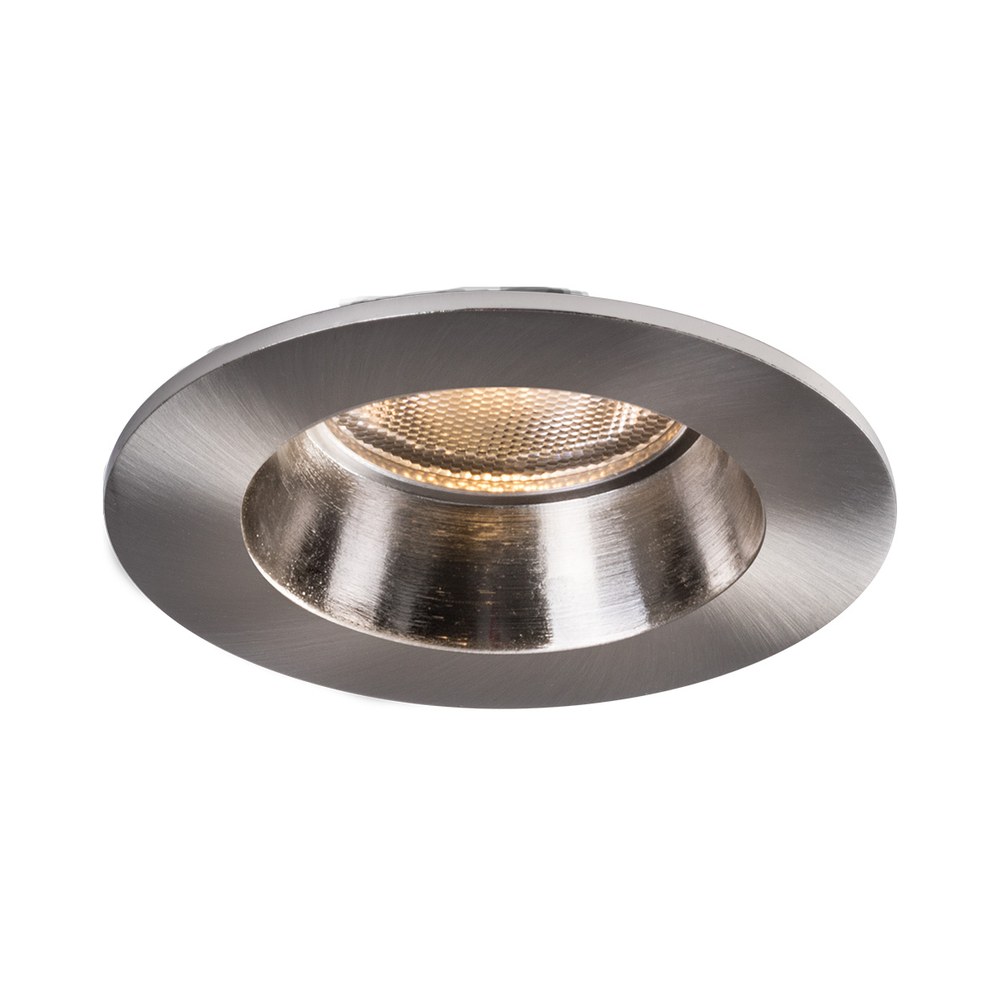

2" LUNA LED ROUND FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2-7F-DTW90BN

Name: 2" LUNA LED ROUND FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2-7F-DTW90BN
Brand: LITELINE
SKU: RA2-7F-DTW90BN
Price: 109.97 CAD
Availability: InStock

SKU: RA2-7F-DTW90BN

Brand: LITELINE

Small aperture, big personality: the 2" LUNA LED Round Fixed Recessed Fixture in brushed nickel (SKU RA2-7F-DTW90BN) from LITELINE is the little recessed downlight that designers keep coming back to. Call it a pot light, a mini LED recessed light or a round downlight — this is the discreet 2-inch aperture you use when you want the light and not the fixture. Its regressed optics keep the source tucked away for a low-glare wash, and this version carries the Dim-to-Warm module, so the light actually gets cozier as you dim it, exactly like the old incandescent bulbs everyone misses. Perfect for remodel work or new construction in homes, and for wall niches and accent runs in small commercial spaces.

Behind the brushed nickel trim sits a 7W LED module delivering up to 700 lumens, up to 103 lumens per watt, with a typical CRI of 96 so wood grain, paint colours and skin tones all read true. The Dim-to-Warm module shifts from 3000 K down to 2000 K as you dim, with 100%–10% dimming on industry-standard forward-phase / reverse-phase dimmers, and outputs 680 lumens in DTW mode. It runs on 100-135V AC, 50/60Hz input with a Class II 170mA dimmable electronic driver, a 0.9 power factor and a 40° beam spread. The airtight anodized-aluminum body is IC rated for direct contact with insulation, suitable for wet locations indoor or outdoor, cETLus certified, starts down to -40°C (-40°F), and is rated 70% @ 50,000 hrs — backed by a lifetime warranty. Hole cut is Ø 2½" (64mm).

Use it over a kitchen island, in a hallway, in a bathroom or shower area, under a soffit, on a covered porch or in a retail display niche — and yes, that -40°C cold start matters through a Canadian winter. It installs with two spring-loaded clips into virtually any ceiling material, and an optional pre-mounting plate is available for new construction. Want colour-selectable instead of Dim-to-Warm? Look at the 2" LUNA round fixed colour selectable in brushed nickel. Prefer another finish in Dim-to-Warm? There's the white DTW version and the black DTW version. Order yours and give your ceiling the clean, quiet look it deserves.

Built to disappear into the ceiling
The LUNA 2" is machined around a durable airtight aluminum body with an anodized blue heat sink that maximizes airflow around the LED source — the reason this small recessed downlight can push real output from a tiny aperture without cooking itself. The fixture measures 2¾" (70mm) across the trim with a 2 5⁄16" (59mm) and 2 13⁄16" (71mm) profile, a 1½" (38mm) depth and a 4 5⁄8" (117mm) driver box, and it drops into a Ø 2½" (64mm) hole cut. The brushed nickel (BN) trim of this SKU gives a soft metallic edge that suits modern kitchens and warm-toned interiors; the same fixture also exists in white and black.

Light quality and Dim-to-Warm
This is a general application luminaire with a 7 watt LED module producing uniform intensity, up to 700 lumens and a typical CRI of 96. The lens sets a 40° beam spread, and the optics are regressed for a low-glare, directional beam. Where this model stands apart is the Dim-to-Warm module: instead of a fixed colour, the light travels from 3000 K down to 2000 K as you dim, delivering 680 lumens in DTW mode — the candle-like warmth people expect from a dimmed halogen, without the heat or the energy bill. Note that the on-fixture colour selectable switch is not available on DTW models; if you need a switch to pick between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, the colour selectable version of the LUNA 2" is the one to spec.

Technical specifications
SKU: RA2-7F-DTW90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: Up to 700
Lumens per Watt: Up to 103
CCT (DTW): 3000 K ~ 2000 K
CRI: 96
Beam Angle: 40°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase
Power Factor: 0.9
Class II: Yes
Projected Life: 70% @ 50,000 hrs
Minimum Starting Temperature: -40°C (-40°F)
Hole Cut: Ø 2½" (64mm)
Certification: cETLus
Finish: BN (brushed nickel)
Warranty: Lifetime

Wiring, driver and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic LED driver with 100-135V AC input. Three Quick Connect push-in terminals in the driver compartment make the wiring fast on a long install day, and an 18" (457mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture — approved for use in plenums and suspended ceilings, though not for branch wiring. Two spring loaded clips grab onto virtually any ceiling material for remodel work, while an optional pre-mounting plate handles new construction layouts. The housing is airtight and approved for direct contact with insulation, which keeps your air barrier honest in insulated ceilings. Dimming works with industry standard forward-phase / reverse-phase dimmers; contact the factory for the list of compatible dimmers.

Where to use it and documentation
Think of the LUNA 2" as accent and detail lighting: a line of them over a kitchen island or along a hallway soffit, grazing a stone feature wall, lighting a walk-in closet, a bathroom vanity zone or a shower (wet location rated), a covered entry, a porch ceiling, or a wall niche in a boutique, clinic or restaurant. Because the LUNA family is also offered in 3", 3.5", 4" and 5" or 6", you can keep the same look and colour behaviour across a whole project. The full technical spec sheet — photometrics, zonal lumen summary, coefficients of utilization, UGR glare data, per-CCT lumen table and ordering guide — is available in the Documentation tab of this page. Matching finishes in the same family: LUNA 2" DTW white, LUNA 2" DTW black and the colour selectable LUNA 2" white.
