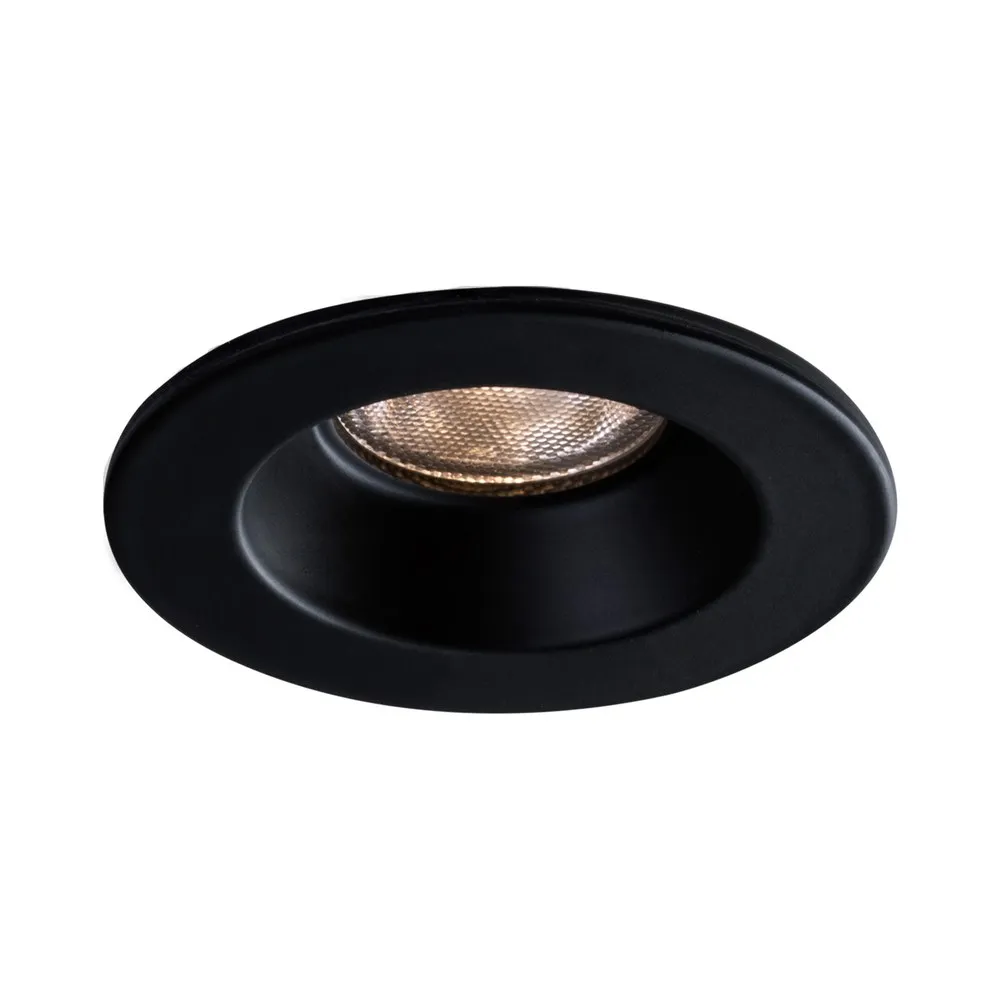

2" LUNA LED ROUND FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2-7F-DTW90BK

Name: 2" LUNA LED ROUND FIXED COLOR SELECTABLE RECESSED FIXTURE - RA2-7F-DTW90BK
Brand: LITELINE
SKU: RA2-7F-DTW90BK
Price: 104.97 CAD
Availability: InStock

SKU: RA2-7F-DTW90BK

Brand: LITELINE

Small aperture, big personality: the 2" LUNA LED round fixed recessed fixture in black (SKU RA2-7F-DTW90BK) is the little pot light that designers keep coming back to. Call it a mini recessed downlight, a 2-inch LED downlight or simply a round LED light — it delivers a clean, regressed, low-glare beam from an aperture barely wider than a loonie. This version is the Dim-to-Warm module, so the light shifts from 3000 K down to 2000 K as you dim it, the way a classic incandescent bulb used to glow. Perfect for remodels and new construction alike, it suits hallways, kitchens, bathrooms, wall niches and accent rows in small commercial spaces where you want light, not hardware.

Inside the durable airtight aluminum body sits a 7 W LED module with an anodized blue heat sink for maximum airflow, producing 680 lumens in Dim-to-Warm mode with a typical CRI of 96 — colours, wood tones and skin tones look genuinely rich. The 40° beam spread keeps the light controlled, and 100 %–10 % dimming works with industry-standard forward-phase / reverse-phase dimmers. It runs on 100-135V AC, 50/60 Hz with a 170 mA dimmable Class II electronic driver, is cETLus certified, IC rated for direct contact with insulation, airtight, and rated for wet locations indoors or outdoors. Hole cut is Ø 2 1/2" (64 mm), the fixture measures 2 3/4" (70 mm) with a 4 5/8" (117 mm) driver box, projected life is 70 % at 50,000 hours, and it carries a lifetime warranty.

From a Québec bungalow soffit to a condo shower, a Prairie cottage porch or a boutique display niche, this fixture handles Canadian reality — it even starts at -40 °C (-40 °F). Two spring-loaded clips grip any ceiling material, and three quick-connect push-in terminals make wiring fast on site. Need a colour-selectable switch instead of Dim-to-Warm? Look at the 2" Luna round fixed color selectable recessed fixture in black, or match finishes across a project with the white Dim-to-Warm version and the brushed nickel Dim-to-Warm version. Add this one to your order and give your ceiling that warm, quiet glow.

Built to disappear into the ceiling
The LUNA Designer Series 2" is built around a durable airtight aluminum body with an anodized blue heat sink that keeps air moving over the LED module — the simplest way to protect light output and colour over the long run. The optics are regressed inside the black trim, which is exactly why the fixture reads as a soft pool of light instead of a bright dot in your sightline. Compact dimensions keep it discreet: 2 3/4" (70 mm) overall, 2 5/16" (59 mm) and 2 13/16" (71 mm) profile dimensions, an 18" (457 mm) cable, a 1 1/2" (38 mm) driver box height and a 4 5/8" (117 mm) driver box, all sized for tight plenums and shallow ceilings.

Light quality and Dim-to-Warm
This SKU is the Dim-to-Warm module: instead of a five-position CCT switch, the colour temperature travels from 3000 K down to 2000 K as you dim, recreating the cozy amber of a halogen or incandescent lamp at low levels. Output reaches 680 lumens in DTW mode from a 7 W LED module, with a typical CRI of 96 and a 40° beam spread from the lens. Dimming runs from 100 % to 10 % using industry-standard forward-phase / reverse-phase dimmers (contact the factory for the compatible dimmer list). Note that the colour selectable switch is not available on DTW models — that is the trade-off for the warm dimming behaviour.

Technical specifications
Model: RA2-7F-DTW90BK
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 7W
Lumens (DTW): 680
CCT (DTW): 3000 K ~ 2000 K
CRI: 96
Beam angle: 40°
Input: 100-135V AC, 50/60Hz
Power factor: 0.9
Dimming: Yes, forward/reverse-phase, 100 %-10 %
Hole cut: Ø 2 1/2" (64 mm)
Class II: Yes
Certification: cETLus
Minimum starting temperature: -40 °C (-40 °F)
Projected life: 70 % @ 50,000 hrs
Warranty: Lifetime
Finish: Black (BK)

Wiring and installation
Installation is deliberately contractor-friendly. Two spring-loaded clips attach the housing to any ceiling material through a Ø 2 1/2" (64 mm) hole, so remodel work needs no housing can. The extruded aluminum hardwire box holds a 170 mA dimmable Class II electronic driver with three quick-connect push-in terminals for fast wiring, and an 18" FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings, though not for branch wiring. The fixture is IC rated and approved for direct contact with insulation, airtight, and suitable for wet locations, indoor or outdoor. An optional pre-mounting plate is available for new construction, along with butterfly brackets, hanger bars, a 60" flexible connector to extend the distance between fixture and driver, a vapor barrier and a commercial grade driver (120~347V / 120~277V, 0-10V dimming).

Where to use it, and what goes with it
Think perimeter grazing in a kitchen, a discreet line over a bathroom vanity, covered porches and soffits, closets, stairwells, and wall niches or display alcoves in boutiques, clinics and small offices. The warm-dimming behaviour is a favourite in bedrooms, dining rooms and restaurants where the evening mood matters. LUNA is also available in 3", 3.5", 4" and 5" or 6" for project uniformity, and within the 2" family you can mix finishes and modes: the colour selectable black, white and brushed nickel versions, or the matching white Dim-to-Warm model. The full technical PDF spec sheet, with photometrics and the ordering guide, is in the Documentation tab.
