0/10V DIMMER

Name: 0/10V DIMMER
Brand: LEDCO
SKU: LCDIM-PAN-0-10V
Price: 67.97 CAD
Availability: InStock

SKU: LCDIM-PAN-0-10V

Brand: LEDCO

Smooth, silent, flicker-free dimming from 100% down to a soft glow — that's what a true 0-10V dimmer delivers, and this one keeps it simple. Known on job sites as a 0-10V dimmer switch, a low-voltage LED dimmer or simply a slide dimmer for panels, it's the control you reach for when the fixtures are LED panels, linear strips, recessed pot lights or troffers with a 0-10V dimmable driver. Instead of chopping the incoming power the way phase-cut controls do, it sends a separate low-voltage signal to the driver or ballast, telling it exactly how much light to produce. The result is wide-range, stepless dimming with no buzz and no visible jumps — the reason designers and contractors specify this method for architectural installations. SKU LCDIM-PAN-0-10V.

Built for real-world electrical work, this LED dimmer runs on 120-277V AC 60Hz and handles a capacity of 720W, so it can carry a serious group of fixtures on one control. It's rated single pole / 3 way, which means you can use it alone or as part of a 3-way dimmer switch setup at the top and bottom of a staircase or at both ends of a long corridor. A handy knob lets you adjust the sensitivity so the low end lands exactly where you want it, with no dropout. The modern sliding dimmer design fits a standard-size opening, the body and finish are white, and the unit measures 47mm x 53mm x 67mm x 105mm x 36mm x 33mm (1.84" / 2.10" / 2.62" / 4.14" / 1.40" / 1.29"). Operating temperature runs from -10ºC to 66ºC, it carries UL certification, and it's backed by a 1 year warranty.

This control feels right at home in open-plan houses, boardrooms, classrooms, clinics, hospitality rooms and retail displays — anywhere you want quiet, dependable light levels for both a residential renovation and a light-commercial fit-out anywhere in Canada. Pair it with any luminaire or driver listed as 0-10V dimmable; it is compatible with all 0-10V dimmable fixtures. If your project uses standard phase-cut LED loads instead, look at our Leviton LED dimmer - white - 450W or the Lutron Diva LED dimmer - 150W. Check your fixture spec sheet, then add this dimmer to your order and take control of every room.

How 0-10V dimming actually works
Phase-cut controls dim by chopping the incoming power waveform, which is why cheap combinations can hum, flicker or stop short of a true low end. A 0-10V dimmer works differently: it keeps line power intact and sends a separate low-voltage control signal on its own pair of conductors to a compatible LED driver or ballast. The driver reads that signal and adjusts output accordingly. Because the signal travels on dedicated wires, performance stays consistent even on longer runs, and multiple fixtures can be grouped on a single control for clean zone-by-zone scenes. That's the reason this protocol dominates LED panels, linear fixtures, recessed lighting and architectural jobs where smooth, silent control is non-negotiable.

Build and controls

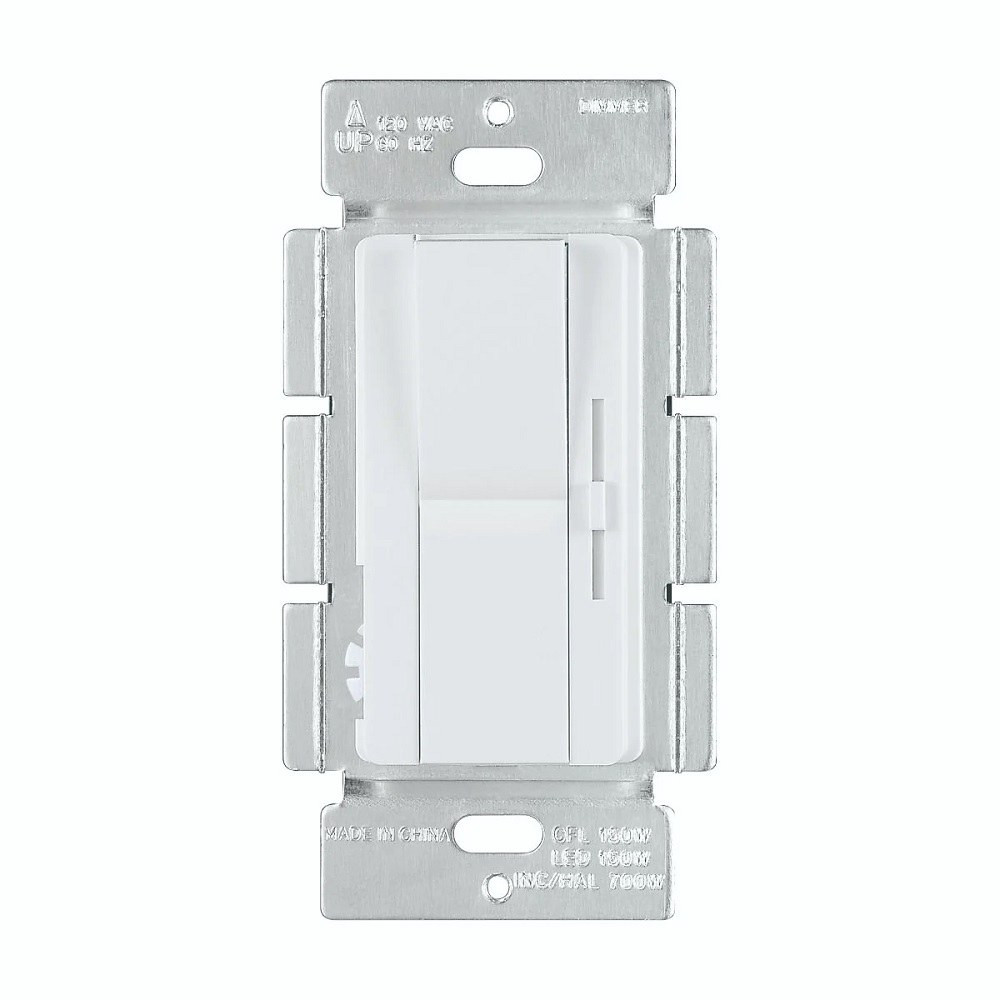

The unit uses a modern sliding dimmer design in a standard size, so it drops into a regular device box and lines up with the rest of your plates. The body and finish are white, giving a neutral look in homes, offices and commercial suites. What sets it apart is the sensitivity adjustment knob: different drivers respond differently at the bottom of their range, and the knob lets you tune the minimum level so the light fades gracefully instead of cutting out. It is a 0-10V dimming only control — it is not intended for phase-cut or ELV loads.

Technical specifications
SKU: LCDIM-PAN-0-10V
Dimmer type: LED dimmer
Dimming: 0-10V only
Voltage: 120-277V AC 60HZ
Capacity: 720W
Switching: Single pole / 3 way
3 way: Yes
Operating temperature: -10ºC to 66ºC
Finish: White
Size: Standard size
Dimensions: 47mm (1.84"), 53mm (2.10"), 67mm (2.62"), 105mm (4.14"), 36mm (1.40"), 33mm (1.29")
Certification: UL
Warranty: 1 year

Wiring and installation
Installation is straightforward for a qualified electrician: line and neutral connect as usual, while the dedicated dimming conductors run to the driver, respecting polarity. The spec sheet shows two wiring approaches — wiring with dimming wires only, without using the on/off feature, which allows an unlimited number of fixtures on the dimming signal, and wiring for dimming with the on/off feature, where the connected load must stay within the 720W capacity. Because the control is rated single pole / 3 way, it also drops into an existing three-way circuit for staircases, hallways and large rooms with two entrances. Always confirm the total connected load and verify local code requirements before energizing.

Where it fits and what's available
Think open-concept homes where the kitchen, dining and living zones share one lighting scene; boardrooms where a presentation calls for 20% output; classrooms, clinics, restaurants, hotel lobbies and retail displays where consistent, quiet control matters all day. Pair it with any luminaire listed as 0-10V dimmable — panels, linear high bays, recessed downlights or troffers with a 0-10V driver. For rooms on standard phase-cut LED loads, our catalogue also offers the Lutron Skylark LED dimmer - 150W, the Lutron Diva LED dimmer - 150W and the Leviton LED dimmer - white - 450W, and for wireless scene control the Lutron Caseta starter kit. The full technical PDF spec sheet, including the technical drawing, the sensitivity adjustment guide and both wiring diagrams, is in the Documentation tab.
