LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6012-BN

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6012-BN
Brand: LITELINE
SKU: TK6012-BN
Price: 156.97 CAD
Availability: InStock

SKU: TK6012-BN

Brand: LITELINE

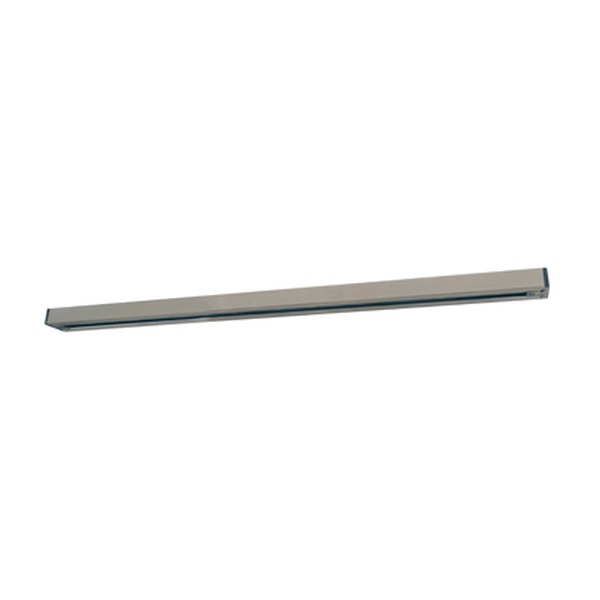

Give yourself a lighting layout you can change your mind about. The LL Series track rail from LITELINE, model TK6012-BN, is a 12-ft extruded aluminum track lighting section in a warm Brushed Nickel finish — the long backbone that lets you slide, aim and add light exactly where you need it. People look for it under many names: track rail, lighting track, track bar, rail for track light heads, or simply the channel that carries adjustable spots across a ceiling. It's the single-circuit system homeowners choose over a renovation when running a dozen new junction boxes isn't realistic, and the one contractors and small business owners rely on to light a kitchen island, a gallery wall, a boutique display or a long open-plan hallway from one power feed.

This is real, jobsite-grade extrusion: die cast aluminum construction with PVC insulators holding flat conductor wiring, and a polarity groove on the face of the track so you always know where the grounding conductor sits. Copper electrical conductors stay concealed inside an insulating thermoplastic cross-section, keeping the profile slim and clean overhead — the body measures 21mm by 35mm, with a run length of 144" (3658mm) for model TK6012. The system electrical rating is 20A, 120V, 60Hz, so single hot and neutral conductors are rated for 20 Amps per branch circuit, leaving you plenty of headroom to load the run with LED heads. Sections join together with any of the compatible LITELINE track connectors, and the whole Liteline track system works with all Liteline track accessories and connectors.

Where does a 12-ft run shine? Over long kitchen counters and islands, along a basement rec room, down a retail aisle, above a salon station or a café counter, in a home office, a studio, a showroom or a small gallery. It's a favourite in Canadian condos and older homes where ceilings can't be opened up easily. Same rail, other finishes if your décor calls for it: LL Series track TK6012-BK in black, LL Series track TK6012-SL in silver and LL Series track TK6012-WH in white. Pick your length, add your feeds, connectors and heads, and start aiming light where it matters.

Built from solid extruded aluminum
The LL Series TK60 track is an extruded aluminum track with flat, solid integral conductors — a simple, rugged design that has been powering adjustable lighting for decades. The extrusion uses 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, so orientation is never guesswork when you slide in a head or a connector. The Brushed Nickel finish of the TK6012-BN reads soft and neutral against white ceilings, stained wood beams and stainless appliances alike.

Electrical design and capacity
This is a single circuit track available for 120V applications. Single hot and neutral conductors are rated for 20 Amps per branch circuit, and copper electrical conductors are concealed in an insulating thermoplastic low profile track cross-section. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways: one feed, one circuit, and as many fixture positions along the run as your load allows. With today's LED heads drawing a fraction of what halogen once did, a 20-amp rated run gives you generous room to light a full room from a single point of power.

Technical specifications
Model: TK6012
SKU: TK6012-BN
Finish: BN — Brushed Nickel
Length: 144" (3658mm) — 12-ft
Profile: 21mm x 35mm
Construction: 1⁄32" die cast extruded aluminum with 3⁄64" PVC insulators
Conductors: 12 gauge flat conductor wiring, copper, concealed
System electrical rating: 20A, 120V, 60Hz
Circuit: 1-circuit track

Feeds, connectors and installation
Tracks can be joined together using any of the compatible track connectors, and the Liteline track system is compatible with all Liteline track accessories and connectors. The accessory family listed for this track includes the CA6106 live-end conduit feed (7⁄8" knockout) for top or end feed, the CF6108 center feed with canopy cover that provides power anywhere along the track from a junction box, the LE6110 live-end (no canopy), the LE6111 live-end with canopy, and the WE6110 wired-end that powers the end of the track from a receptacle. To shape the run, use the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector for three sections at 90°, the XC6104 X-connector for four sections at 90°, or the FC6105 flexible connector for varying angles. Close the run neatly with the TK6000-END end cap — exactly the part people search for as track end caps. For suspended runs, the TDR62 hollow stem rod kit includes the ceiling canopy, mounting brackets and hardware, while RODR62 suspends track from the ceiling and RODF62 serves track fixtures. Accessories are sold separately.

Applications, options and documentation
Twelve feet of continuous rail covers a lot of ground: a full kitchen wall with island and sink lighting, a corridor in a condo, a retail perimeter with LED track light heads aimed at shelving, an art wall in a living room, a workshop bench, a classroom or a café. Cut the layout into segments with connectors and you can wrap a corner or ring a room from one feed. The same TK60 rail is offered in other lengths — TK6002 at 24" (610mm), TK6004 at 48" (1219mm), TK6006 at 72" (1829mm) and TK6008 at 96" (2438mm) — and in other finishes: TK6012-BK black, TK6012-SL silver and TK6012-WH white. The full TK6012-BN spec sheet, with technical drawings and the complete ordering guide, is available in the Documentation tab.
