LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6012-BK

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6012-BK
Brand: LITELINE
SKU: TK6012-BK
Price: 129.97 CAD
Availability: InStock

SKU: TK6012-BK

Brand: LITELINE

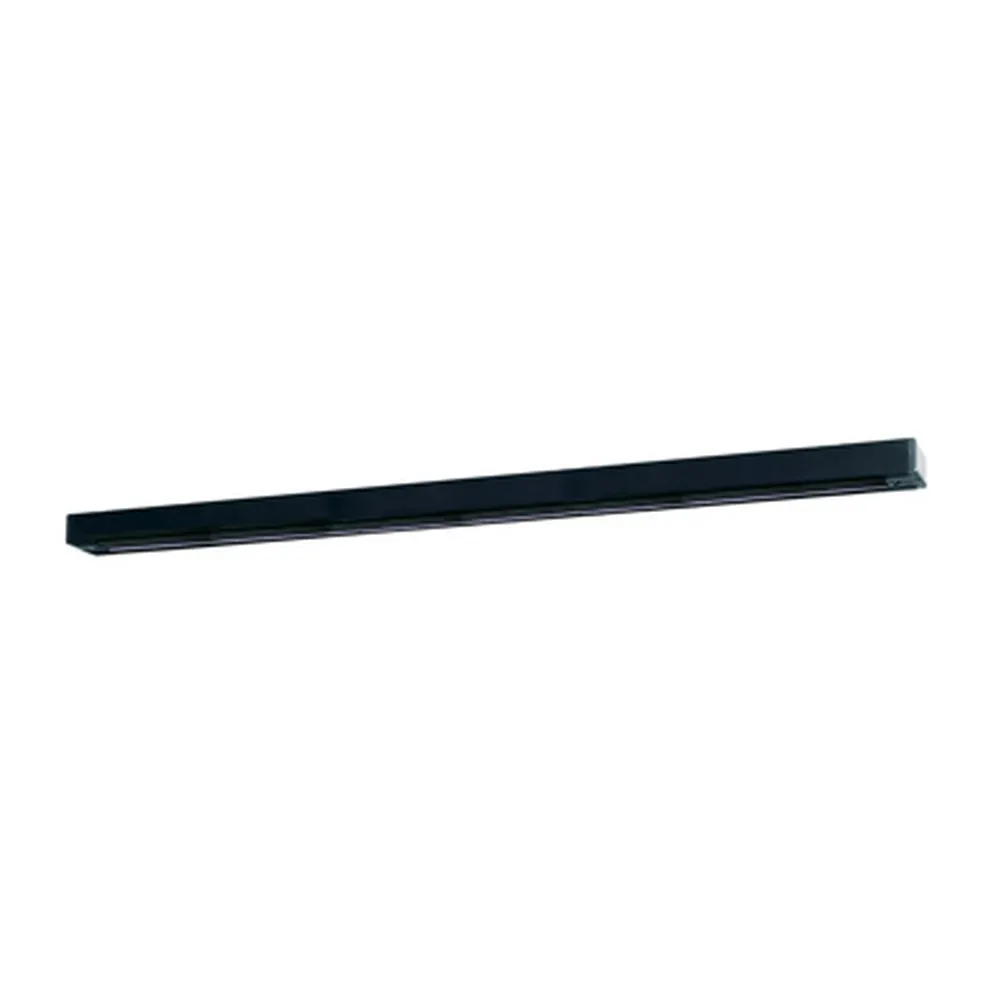

Give your lighting the freedom to move. The LL Series track rail TK6012-BK is a 12-foot extruded aluminum track lighting section in a clean black finish — the backbone that lets you aim light exactly where you need it and change your mind later. People call it a track rail, a lighting rail, a track bar or simply track lighting rail, and it's the piece every track head, connector and end cap clips into. Whether you're lighting a long kitchen island, a gallery wall, a retail display or an open-concept basement, one continuous run keeps everything tidy and gives you room to add or move fixtures as the space evolves.

Built by LITELINE, this track is die cast aluminum extrusion with PVC insulators holding flat conductor wiring, and a polarity groove on the face of the track that clearly indicates the location of the grounding conductor — a small detail that makes installation faster and safer. It's a 1-circuit track designed for 120V applications, with a system electrical rating of 20A, 120V, 60Hz, and the copper conductors stay concealed inside a low-profile insulating thermoplastic cross-section. The profile measures 21 mm by 35 mm, so it hugs the ceiling instead of dominating it, and the section runs 3658 mm (144") long. Sections can be joined together with any of the compatible track connectors for runs of almost any shape.

This black track rail is a natural fit for Canadian homes and small businesses: kitchens, hallways, finished basements, home studios, boutiques, cafés, salons and offices where fixed pot lights simply don't offer enough flexibility. The Liteline track system is compatible with all Liteline track accessories and connectors — live-ends, center feeds, I, L, T and X connectors, flexible connectors, end caps and suspension rod kits, all sold separately. Prefer another look? The same 12-foot section is also offered as LL Series track TK6012-BN in brushed nickel, TK6012-SL in silver and TK6012-WH in white. Plan your run, pick your finish and start building your lighting layout today.

Solid extruded construction
The TK60 track family is built from extruded aluminum with flat, solid integral conductors, and the TK6012-BK gives you a full 12-foot section in a black finish. The extrusion uses 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators that hold 12 gauge flat conductor wiring securely in place. A polarity groove runs along the face of the track to indicate where the grounding conductor sits, so orientation is never a guessing game when you join sections or drop in a feed. The result is a rigid, straight track rail that stays true over long spans and accepts accessories without play or rattle.

Electrical design
This is a single circuit track for 120V applications: a single hot and neutral conductor rated for 20 Amps per branch circuit, with a system electrical rating of 20A, 120V, 60Hz. The copper electrical conductors are concealed inside an insulating thermoplastic low profile cross-section, keeping live parts protected while the visible profile stays slim. Keep in mind that track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways — plan your total connected load against the 20A branch circuit rating, and have the supply wiring done by a qualified electrician according to local code.

Technical specifications
SKU: TK6012-BK
Brand: LITELINE
Series: LL Series / TK60 track sections
Length: 144" (3658 mm)
Profile: 21 mm (¾") x 35 mm (1 3⁄8")
Finish: BK — Black
Circuit: 1-circuit track, 120V
System electrical rating: 20A, 120V, 60Hz
Conductors: 12 gauge flat copper conductors, 20 Amps per branch circuit
Construction: 1⁄32" die cast aluminum extrusion with 3⁄64" PVC insulators

Accessories and compatibility
The Liteline track system is compatible with all Liteline track accessories and connectors, and every piece is sold separately so you build exactly the layout you need. Power it with the LE6110 live-end, the LE6111 live-end with canopy, the WE6110 wired-end from a receptacle, the CF6108 center feed with canopy cover, or the CA6106 live-end conduit feed with a 7⁄8" knockout for top or end feed. Shape the run with the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector for three sections at 90°, the XC6104 X-connector for four sections at 90°, or the FC6105 flexible connector for varying angles. Finish open ends with the TK6000-END end cap, and suspend the track from a high or sloped ceiling with the TDR62 hollow stem rod kit (ceiling canopy, mounting brackets and hardware included), the RODR62 rod to suspend track from the ceiling, or the RODF62 rod for track fixtures. Matching finishes in the same 12-foot length are available as TK6012-BN brushed nickel track, TK6012-SL silver track and TK6012-WH white track.

Where it works and what's documented
A 12-foot run is ideal when you want one uninterrupted line: over a long kitchen island and prep counter, down a hallway, along a gallery or feature wall, across a basement rec room, or through a boutique, café, salon or small office where displays get rearranged often. Because heads slide and pivot anywhere along the rail, a landlord, contractor or homeowner can re-light a room in minutes instead of cutting new ceiling openings — a real advantage in older Canadian homes and leased commercial spaces. Mount it directly to the ceiling or drop it with rod kits over an island or a work table. The full TK6012-BK spec sheet is available in the Documentation tab, with the technical drawings, the ordering guide and the complete accessory list to help you finalize your track layout before installation.
