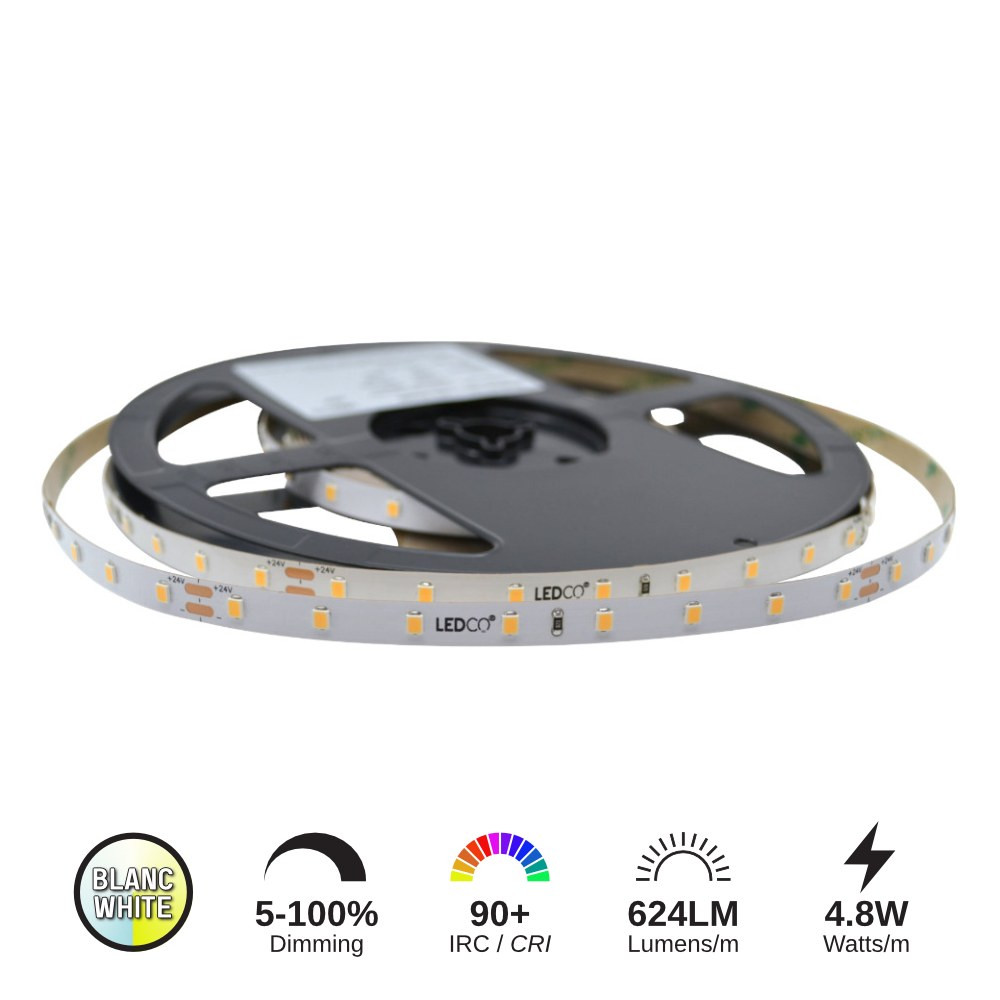

LED STRIP 4.8W/M - LCLS24V-24W-35K-IP66

Name: LED STRIP 4.8W/M - LCLS24V-24W-35K-IP66
Brand: LEDCO
SKU: LCLS24V-24W-35K-IP66
Price: 80.97 CAD
Availability: InStock

SKU: LCLS24V-24W-35K-IP66

Brand: LEDCO

Soft, continuous light exactly where you need it: this LED strip (SKU LCLS24V-24W-35K-IP66) is the flexible tape everyone looks for when searching led strip lights, led light strips or simply led strip lighting. It's a low-profile 24V DC ribbon you stick under cabinets, inside coves, along stair nosings, behind headboards or in an aluminum channel to turn a plain ceiling line into a clean band of light. Homeowners use it for kitchens, basements, closets and bathrooms vanities; contractors and small businesses use it for retail displays, reception desks, bar fronts and signage. Because it's sold by the metre and cuts to size, it adapts to a 4-foot cabinet run as easily as a full-room cove.

Under the silicone coating you get Epistar 3528 SMD chips, 64 LEDs per meter and a draw of only 4.8W/M ±10% — an efficiency of 130 LM/W that keeps energy bills friendly while giving you a smooth, dot-free glow. The CRI 90+ rendering makes wood grain, paint colours, skin tones and merchandise look true, and the 3500K colour temperature lands right between cozy and crisp: warm enough for living spaces, clean enough for a work surface. Add a 120º beam angle, a 8mm PCB width with a robust 3oz. PCB thickness, dimmable operation, UL listing and a lifespan of 50 000+ hours, and you have tape that's built to stay in the wall.

This version carries an IP66 rating, so it handles dust and splashes far better than a basic indoor tape — ideal for kitchen backsplashes, laundry rooms, garages, workshops, walk-in coolers and covered outdoor areas around the house or shop, a real advantage in Canadian humidity and temperature swings. Runs can reach a max length of 10m and the strip cuts every 125mm (8 LED) at the marked points. Need another mood? The same tape is offered in LED strip 4.8W/m 24V 30K IP66, or step up in output with LED strip 9.6W/m 24V 48W 30K IP66 and LED strip 19.2W/m 24V 96W 30K IP66. Roll it out and light your project properly.

Built for real installations
This flexible LED tape is built on an 8mm wide printed circuit board with a generous 3oz. copper thickness — heavier copper means better heat dissipation and steadier light output over the years. 64 LEDs per meter of Epistar 3528 SMD chips are spaced tightly enough to blend into a soft line rather than a row of dots, especially behind a diffuser. The strip is rated IP66, so dust, splashes and damp corners are no longer a reason to skip accent lighting in a garage, workshop or utility room.

Light quality you can see
With CRI 90+, colours stay honest: white cabinetry looks white, walnut looks warm, and merchandise on a shelf looks like it does in daylight. The 3500K colour temperature is the diplomatic choice — softer than an office white, cleaner than a warm bulb — which makes it a favourite for kitchens, bathrooms and retail counters. A 120º lighting angle spreads light wide and even, and an output of 130 LM/W from just 4.8W/M ±10% means a long cove run stays gentle on your circuit.

Technical specifications
SKU: LCLS24V-24W-35K-IP66
Chip: Epistar 3528 SMD
Number of LED per meter: 64pcs
Power: 4.8W/M ±10%
Efficacy: 130 LM/W
CRI: 90+
Colour temperature: 3500K
Lighting angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8mm
PCB thickness: 3oz.
Max length: 10m
Cut size: 125mm (8 LED)
Protection code rating: IP66
UL: Yes
Lifespan: 50 000+ hours

Wiring and installation
The strip runs on 24V DC, which lets you feed longer sections from a single point compared with lower-voltage tape. Size your power supply to the total wattage of the run (4.8W/M multiplied by your length) and keep a little headroom. Never exceed the max length of 10m per run; for longer layouts, feed additional runs from the supply rather than chaining them end to end. Cut only at the marked 125mm (8 LED) points, clean the surface before sticking the tape down, and mount it in an aluminum profile with a diffuser when the strip will be visible — the channel hides the dots and helps the LEDs run cooler. The strip is dimmable, so pair it with a dimming-capable 24V driver or an in-line dimmer for mood control in bedrooms, dining rooms and lounges.

Applications, family and documentation
Think under-cabinet task light in a kitchen, toe-kick glow in a bathroom, cove lighting in a basement ceiling, shelf lighting in a boutique, bar and counter fronts in a café, or a bright, wipeable line of light in a garage or laundry room. If you prefer a warmer or cooler ambience in the same format, look at the IP22 versions of this tape: LED strip 24V 4.8W/m IP22 (27K), LED strip 24V 4.8W/m IP22 (30K) or LED strip 24V 4.8W/m IP22 (50K). For colour-changing projects, the LED strip 14.4W/m 24V 72W RGB IP66 shares the same 24V platform. The full technical PDF for this model is in the Documentation tab — download it before you order your driver and profiles.

Technical Files
