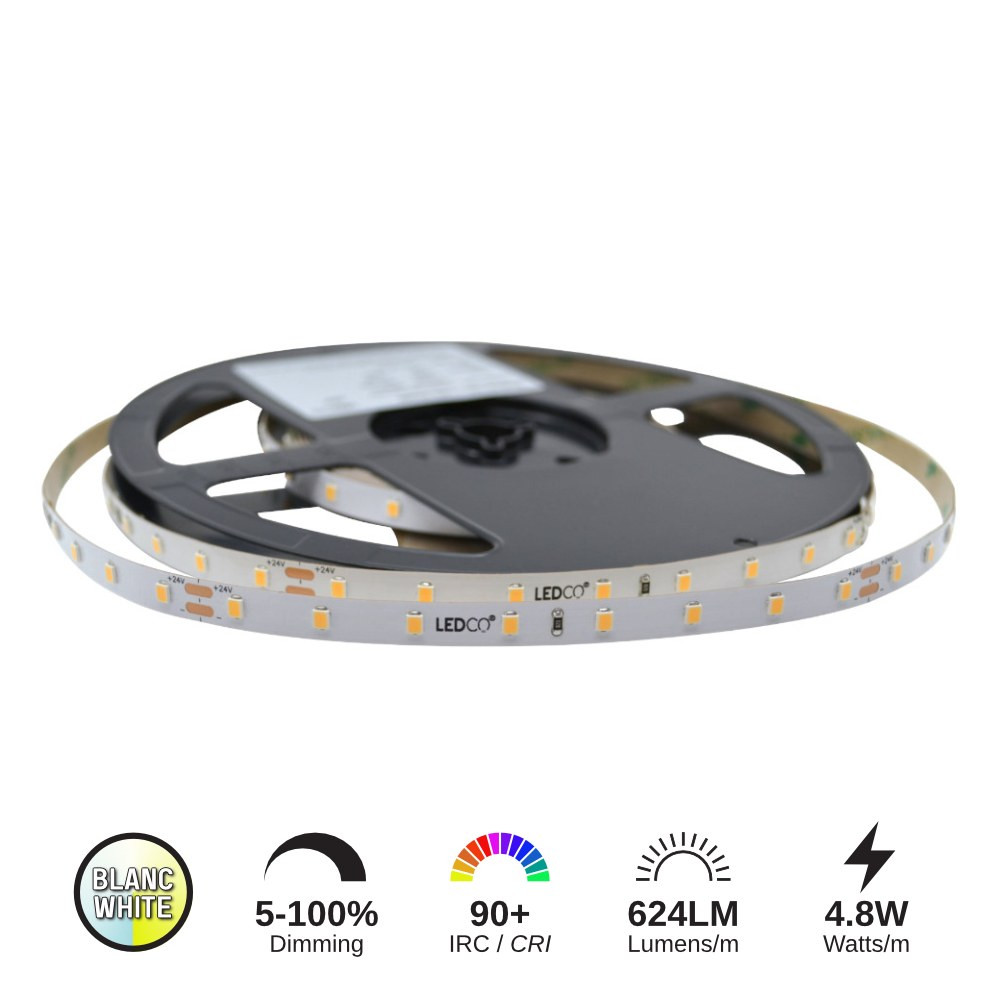

LED STRIP 4.8W/M - LCLS24V-24W-40K-IP22-30M

Name: LED STRIP 4.8W/M - LCLS24V-24W-40K-IP22-30M
Brand: LEDCO
SKU: LCLS24V-24W-40K-IP22-30M
Price: 356.97 CAD
Availability: InStock

SKU: LCLS24V-24W-40K-IP22-30M

Brand: LEDCO

Soft, continuous light exactly where you want it — that's what a good LED strip does for a room, and this 4.8W/M tape is one of the easiest ways to get it. Call it LED strip lighting, LED light strips, LED tape or simply strip lights: it's a slim, flexible circuit board lined with tiny LEDs that hides under cabinets, inside coves, along stair nosings, behind headboards and above kitchen islands. Sold here as SKU LCLS24V-24W-40K-IP22-30M, it's the discreet indoor LED lighting solution homeowners, cabinetmakers and contractors reach for when they want the glow without seeing the fixture.

The numbers are honest and easy to work with. It runs on 24V DC and draws 4.8W per metre (±10%), with 64 LEDs per meter using Epistar 3528 SMD chips and an efficiency of 130 LM/W. Colour rendering is where it really wins: CRI 90+, so wood grain, countertops, food and skin tones look true instead of washed out, in a crisp 4000K neutral white. The 120º beam angle spreads light evenly without hot spots, the strip is dimmable, and it's UL listed with a rated lifespan of 50 000+ hours. Build details matter too: an 8 mm PCB width with 3 oz. copper for better heat handling, a cut size of 125 mm (8 LED), a maximum run of 10 m per feed, and an IP22 protection rating for dry indoor locations.

This is the strip for kitchen under-cabinet lighting, cove and ceiling perimeter details, closets, pantries, vanities, bookcases, basements, reception desks, retail displays and display cases in Canadian homes and small businesses. Because it cuts every 125 mm, it adapts to short cabinet sections or long hallway coves alike. Need a different white? The same platform exists in LED strip 24V 4.8W/M IP22 2700K, LED strip 24V 4.8W/M IP22 3000K, LED strip 24V 4.8W/M IP22 3500K and LED strip 24V 4.8W/M IP22 5000K. Plan your run, add a 24V DC power supply and start lighting.

Built to disappear into the millwork
This LED tape light is engineered to be seen only by the light it throws. The flexible circuit board measures 8 mm wide, and the copper is a generous 3 oz. thickness, which helps pull heat away from the diodes and keeps brightness steady over long runs. Sixty-four Epistar 3528 SMD chips per metre are spaced closely enough that, tucked behind a lens or an aluminum channel, the line reads as a smooth band rather than a row of dots. The strip can be cut every 125 mm (8 LED), so you can size sections to a cabinet, a stair riser or a reveal without wasting material.

Light quality you can trust on finishes
At CRI 90+, this strip renders colour far better than basic tape light. That matters when the light lands on white quartz, walnut veneer, painted trim, merchandise or a plate of food. The 4000K colour temperature is a clean, neutral white — bright and modern without going blue — which is why it's a favourite for kitchens, work surfaces, garages, offices and retail. Efficiency is rated at 130 LM/W for 4.8W per metre (±10%), and the 120º beam angle gives wide, even coverage close to a surface.

Technical specifications
SKU: LCLS24V-24W-40K-IP22-30M
Chip: Epistar 3528 SMD
LEDs per meter: 64 pcs
Power: 4.8W/M ±10%
Efficiency: 130 LM/W
CRI: 90+
Colour temperature: 4000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8 mm
PCB thickness: 3 oz.
Max length: 10 m
Cut size: 125 mm (8 LED)
Protection rating: IP22
Certification: UL
Lifespan: 50 000+ hours

Wiring, dimming and installation
The strip operates on 24V DC, so it needs a 24V DC power supply (driver) sized to the total wattage of your run — multiply 4.8W by the number of metres and leave yourself headroom. Respect the 10 m maximum length per feed; for longer installations, run parallel home runs back to the supply instead of daisy-chaining, which keeps brightness uniform end to end. The strip is dimmable when paired with a compatible dimming system on the driver side. Clean and dry the mounting surface before applying, avoid sharp folds, cut only on the marked 125 mm points, and mount in an aluminum profile with a diffuser wherever the strip is visible — it hides the dots and helps with heat. With an IP22 rating, keep this one to dry indoor locations.

Where it works and what pairs with it
Think under-cabinet and toe-kick lighting in kitchens, cove lighting in living rooms and primary bedrooms, closet and pantry shelving, bathroom vanity accents, basement stairs, home offices, plus reception desks, display cases, bar backs and shelving in shops, clinics and restaurants. If your project moves outdoors or into a damp area like a covered patio or a car wash bay, choose a sealed version such as the LED strip 4.8W/M 24V 30K IP66. Need more punch for high ceilings or long coves, look at the LED strip 9.6W/M 24V 48W IP66, and for colour-changing accents there's the LED strip 14.4W/M 24V 72W RGB IP22. The full technical PDF (LCLS24V-24W-40K-IP22-30M Spec Sheet) is in the Documentation tab for your layout and load calculations.
