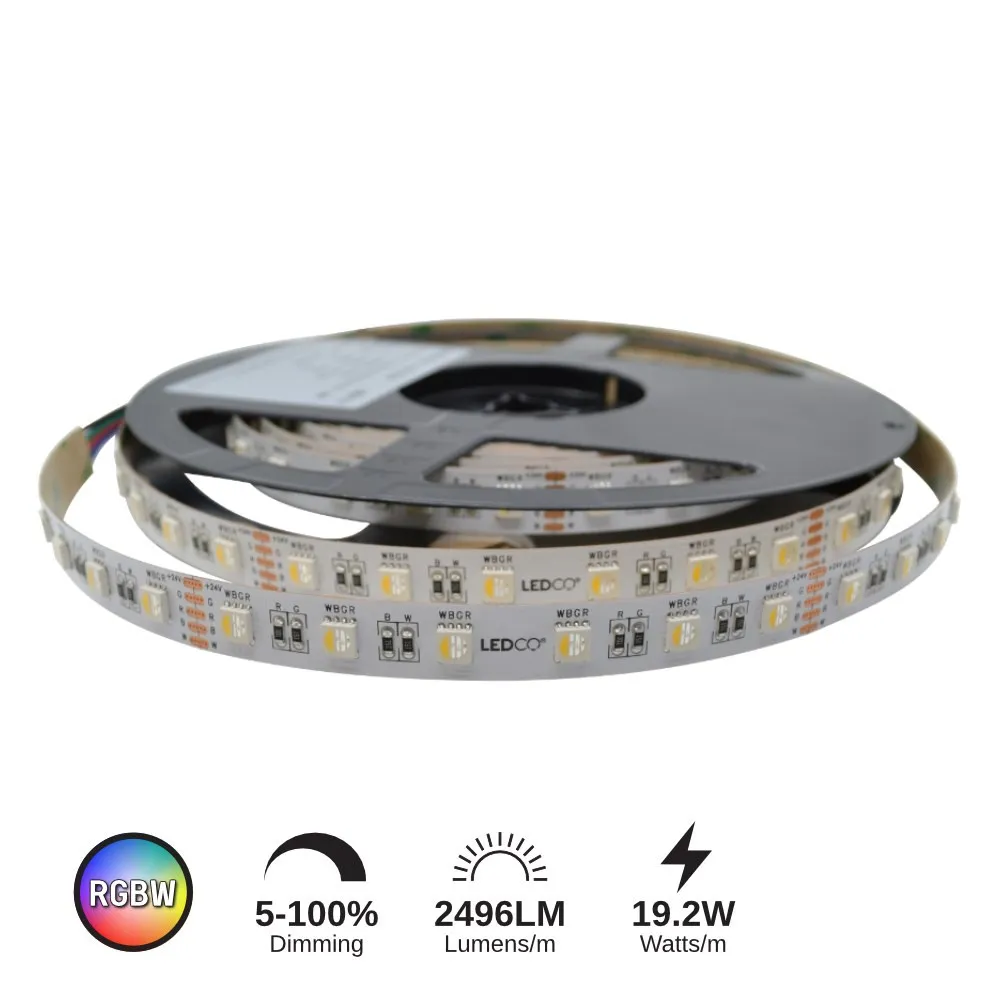

LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW27K-IP22

Name: LED STRIP 19.2W/M (RGBW) - LCLS24V-96W-RGBW27K-IP22
Brand: LEDCO
SKU: LCLS24V-96W-RGBW27K-IP22
Price: 97.97 CAD
Availability: InStock

SKU: LCLS24V-96W-RGBW27K-IP22

Brand: LEDCO

Add colour, mood and crisp warm white to any room with one single run of tape light. This RGBW LED strip — also called LED strip lights, LED tape, ribbon light or simply led light strips — puts red, green, blue and a dedicated 2700K warm white chip on the same board, so you get millions of colour scenes for parties, holidays and accent walls, plus a genuine white light you can actually live and work under. No more choosing between a fun colour strip and a useful task strip: SKU LCLS24V-96W-RGBW27K-IP22 does both on one continuous line of light.

Built for real projects, this 24V DC LED strip lighting draws 19.2W per metre with a dense 120 LEDs/m layout, so the dots blend into a smooth line instead of a row of hot spots. The white channel delivers 90+ CRI at 2700K, the kind of rendering that keeps wood grain, paint colours and skin tones looking true. The 12 mm wide board is built on a 2oz density white PCB, comes on a 5 m reel, can be cut every 50 mm at the marked points and sticks down with the pre-applied 3M double-sided tape on non-porous surfaces. A 120º beam angle spreads light evenly, the IP22 rating suits dry indoor locations, it is UL listed, operates from -25°C to 60°C and is rated for 50 000+ hours. Dimming and control options include DMX, PWM, RF PWM, 0-10V and MLV incandescent dimmers.

Use it for cove and ceiling lighting, under-cabinet and toe-kick runs in kitchens, bar fronts, home theatres, bedroom headboards, retail displays, restaurant and hotel accents — anywhere a Canadian homeowner, contractor or small business wants both ambience and usable light. Stick with the recommended run lengths and use parallel or middle connections to keep brightness even end to end. If your project also needs a pure white run, pair it with the LED strip 19.2W/m 24V 96W 30K IP66, a colour-only line like the LED strip 14.4W/m 24V 72W RGB IP22, or a tunable white option such as the LED strip 20W/m 24V 100W IP22 CCT. Plan your metres, add it to your cart and light the room your way.

Four channels, one strip
This is a four-in-one RGBW LED tape: red, green and blue chips for colour, plus a separate 2700K white chip so warm white is produced by a real white LED instead of mixing colours. That matters in a kitchen or a living room, where mixed-colour "white" always looks slightly off. With 120 LEDs/m on a 12 mm wide board, the diodes sit close enough together to read as a line of light rather than a string of dots, especially behind a diffuser. The board is a 2oz density white PCB, which helps carry current and keeps the strip visually discreet against light-coloured coves and cabinets.

Light quality you can trust
The white channel is rated 90+ CRI at 2700K, a warm, flattering tone that suits residential interiors, hospitality spaces and retail displays where merchandise and finishes have to look right. The 120º beam angle spreads output widely, so the strip washes a ceiling cove or the underside of a cabinet evenly instead of throwing a narrow streak. Rated for 50 000+ hours, it is a long-haul indoor LED lighting solution for installations you do not want to reopen.

Technical specifications
Product code: LCLS24V-96W-RGBW27K-IP22
Voltage: 24V DC
Power consumption: 19.2W/M
LED density: 120 LEDs/m
CRI: 90+
Colour: RGBW 2700K
Beam angle: 120º
Segment width: 12mm
Board type: 2oz density, white PCB
Reel length: 5m
Cuttable segments: 50mm
Protection rating: IP22
Operating temperature: -25°C to 60°C
Mounting: 3M double-sided tape (non-porous surfaces)
Dimming: DMX, PWM, RF PWM, 0-10V, MLV incandescent
UL: Yes
Lifespan: 50 000+ hours

Wiring, control and installation
The strip runs on 24V DC, so size your driver to the total metres installed plus headroom, and remember the load: 19.2W per metre adds up quickly on long runs. Parallel connections are strongly recommended, and a middle connection — a feed wire brought to the centre of the run — lets you build one long continuous line without the far end going dim. Never exceed the recommended run length: the strip will start to dim past that point and the extra current will damage it over time. Control is flexible, with DMX, PWM, RF PWM, 0-10V and MLV incandescent dimming supported, which covers everything from a simple RF remote in a condo to a full DMX scene controller in a bar or showroom. Cut only at the marked 50 mm segments, clean the surface before applying the 3M tape, and mount on non-porous materials for the adhesive to hold. Being IP22, keep it in dry indoor locations — for wet or outdoor work, choose an IP66 version.

Applications and companion products
Think ceiling coves and tray ceilings, under-cabinet and toe-kick kitchen lighting, backlit bars and reception desks, stair and handrail accents, home theatre risers, retail shelving and restaurant niches: warm white for everyday use, colour for events and seasons. Contractors often run this alongside dedicated white tape in the same project — see the LED strip 19.2W/m 24V 96W 30K IP66 for damp-rated white runs, the LED strip 14.4W/m 24V 72W RGB IP66 for colour outdoors or in wet areas, or the lower-output LED strip 24V 2835 4.8W/m IP22 30K for subtle shelf accents. The full technical PDF (LCLS24V-96W-RGBW27K-IP22 Spec Sheet), including the parallel and middle connection guides, is in the Documentation tab.
