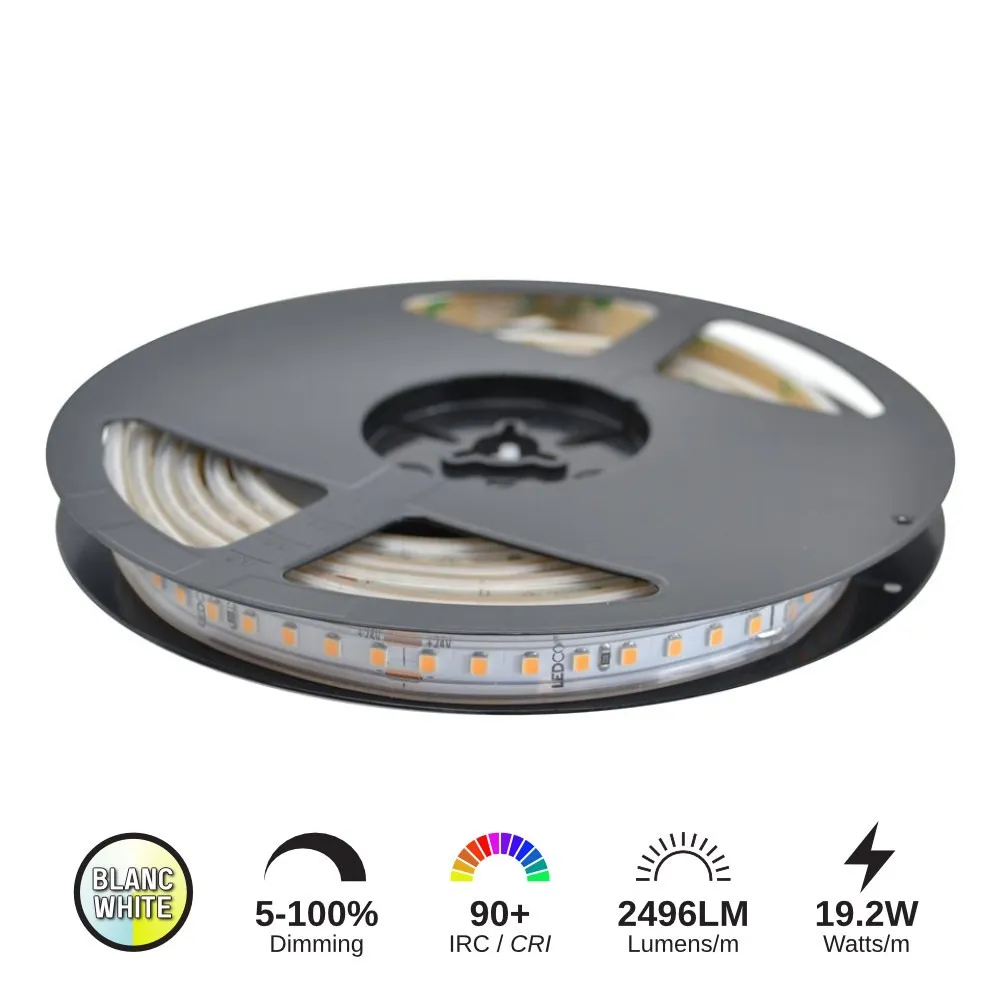

LED STRIP 19.2W/M - LCLS24V-96W-30K-IP66-30M

Name: LED STRIP 19.2W/M - LCLS24V-96W-30K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-96W-30K-IP66-30M
Price: 624.97 CAD
Availability: InStock

SKU: LCLS24V-96W-30K-IP66-30M

Brand: LEDCO

Looking for a continuous line of warm, flawless light you can hide under a cabinet, in a cove or inside an aluminum channel? This 24V LED strip delivers exactly that. Known as LED strip lights, LED tape light, led light strips or simply strip lighting, it is the flexible ribbon designers and contractors reach for when they want the glow without seeing the fixture. Sold under SKU LCLS24V-96W-30K-IP66-30M, this is the high-output, warm 3000K version, ready for kitchens, bathrooms, retail displays, staircases and cove ceilings. Whether you call it led strip lighting or indoor accent lighting, it turns a plain ceiling detail into the best feature of the room.

This ribbon runs on 24V DC and draws 19.2W/M (±10%), with an efficiency of 120 LM/W from 128 Epistar 2835 SMD chips per metre — that is a dense, tightly packed line of diodes, so you get a smooth wash instead of a row of hot spots. The CRI of 90+ makes woods, paint, skin tones and merchandise look true, and the 3000K colour temperature keeps the atmosphere warm and inviting. A 120º beam angle spreads the light evenly, the PCB is 10mm wide with a 3oz. copper build for better heat management, and the strip is fully dimmable. It is UL listed and rated for 50 000+ hours of service. Cuts are made every 62.5mm (8 LEDS), with a maximum run of 10m per feed.

Put it to work under kitchen cabinets, above crown moulding, in a drop-ceiling cove, along a bar front, inside display cases, in closets, garages and finished basements — anywhere a Canadian home or small business needs clean, even light. Contractors love it for condo renovations, dental and salon counters, restaurant banquettes and retail shelving. Prefer a different white? The same output is offered as LED strip 24V 19.2W/M IP22 (27K), LED strip 24V 19.2W/M IP22 (40K) and LED strip 24V 19.2W/M IP22 (50K). Need a softer, lower-output line for shallow coves? Look at the LED strip 9.6W/M 24V 48W 30K IP66. Order your roll and start planning your lighting lines today.

Built for smooth, seamless light
The heart of this LED tape light is a dense array of Epistar 2835 SMD chips — 128pcs per metre — mounted on a 10mm wide flexible PCB. That density is what removes the "dotted" look when the strip sits close to a surface or behind a lens, giving you a continuous line of illumination in coves, reveals and under-cabinet runs. The PCB uses 3oz. copper, a heavier conductor layer that helps pull heat away from the diodes and supports a rated lifespan of 50 000+ hours. The ribbon stays flexible enough to follow gentle curves and inside corners, and cut points are marked every 62.5mm (8 LEDS) so you can size each run precisely on site.

Light quality you can trust
With a CRI of 90+, colours stay honest: cabinet finishes, backsplash tile, artwork, food, fabric and cosmetics all read the way they should. The 3000K colour temperature is the classic warm white that flatters wood, brass and warm paint palettes, which is why it dominates residential kitchens, hospitality spaces and boutique retail. Efficiency is rated at 120 LM/W, and the 120º lighting angle spreads output wide so a single line can wash a whole wall or ceiling plane rather than firing a narrow stripe.

Technical specifications
SKU: LCLS24V-96W-30K-IP66-30M
Chip: Epistar 2835 SMD
LEDs per metre: 128pcs
Power: 19.2W/M ±10%
Efficiency: 120 LM/W
CRI: 90+
Colour temperature: 3000K
Lighting angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 10mm
PCB thickness: 3oz.
Max length: 10m
Cut size: 62.5mm (8 LEDS)
UL: Yes
Lifespan: 50 000+ hours

Wiring, dimming and installation
This is a 24V DC low-voltage system, so it needs a Class 2 LED driver sized to the total load of your run — remember the strip draws 19.2W/M, so multiply by the metres you install and leave headroom. Respect the 10m maximum run per feed: for longer walls, bring power to a second point rather than extending a single line, which protects you from voltage drop and a dim tail end. The strip is dimmable, so pair the driver and control you choose according to the driver's dimming protocol. Always cut on the marked 62.5mm points, solder or use proper connectors, and mount in an aluminum channel with a diffuser whenever the strip is visible or installed on a surface that needs heat dissipation — profiles also protect the ribbon during construction and give the installation a finished, architectural look.

Where it works and what pairs with it
Think under-cabinet task light in a kitchen, toe-kick and island lighting, vanity and mirror surrounds, cove lighting in a living room or condo hallway, stair nosings, closet shelving, bar fronts, reception desks, display cases and product shelving in a shop. The same 19.2W/M platform is available in other whites — LED strip 24V 19.2W/M IP22 (35K) and LED strip 24V 19.2W/M IP22 (50K) — while colour-changing projects can move to the LED strip 14.4W/M 24V 72W (RGB) IP66, and tunable-white designs to the LED strip 20W/M 24V 100W IP22 (CCT). The full technical PDF spec sheet for this product is in the Documentation tab — download it for your submittals, electrician or designer.
