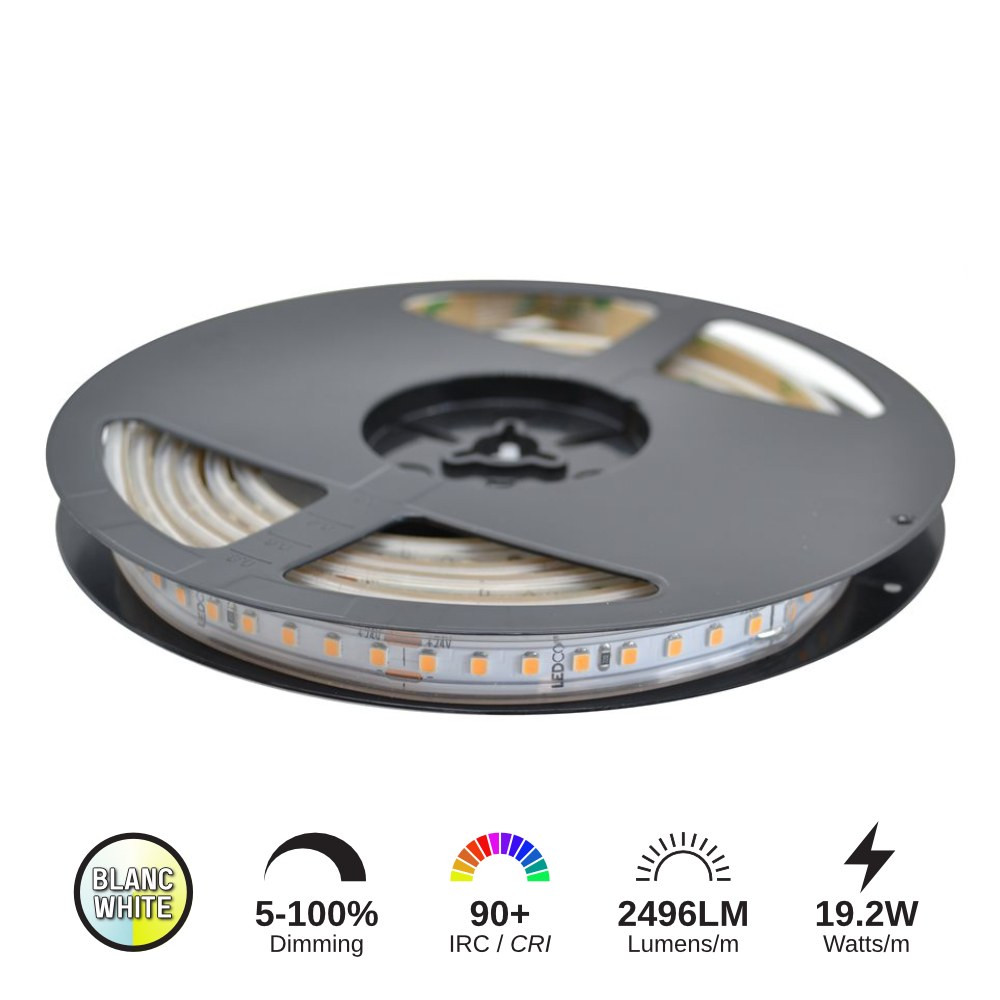

LED STRIP 19.2W/M - LCLS24V-96W-35K-IP66-30M

Name: LED STRIP 19.2W/M - LCLS24V-96W-35K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-96W-35K-IP66-30M
Price: 624.97 CAD
Availability: InStock

SKU: LCLS24V-96W-35K-IP66-30M

Brand: LEDCO

Ready to put a clean, continuous line of light exactly where your ceiling fixtures can't reach? This LED strip delivers 19.2W per metre of bright, even illumination on a flexible tape you can run under cabinets, inside coves, along stair nosings or around a bathroom mirror. Whether you call them LED strip lights, LED light strips, LED tape light or simply strip lights, this is the workhorse version: a 24V DC ribbon, 10 mm wide, that bends around corners and disappears into an aluminum channel for a polished, architectural look. SKU LCLS24V-96W-35K-IP66-30M comes in a generous roll for long runs, so one order can cover a whole kitchen, a retail display wall or a full basement renovation without visible seams.

Under the silicone you get Epistar 2835 SMD chips — 128 LEDs per metre — which is why the light reads as a smooth band instead of a row of dots. Output is rated at 120 lumens per watt with a CRI of 90+, so wood grain, paint colours, skin tones and merchandise all look true. The 3500K colour temperature sits right between warm and neutral: cozy enough for a living space, crisp enough for a work zone. A wide 120° beam angle spreads light evenly across the surface you're washing, and the strip is dimmable for full control of the mood. Electrically it runs on 24V DC, is UL listed, carries an IP66 protection rating, and is rated for 50,000+ hours of life. The 3 oz. copper PCB helps manage heat over long installs, the maximum run is 10 m per feed, and the cut size is 62.5 mm (8 LEDs) so you can trim to length on site.

Contractors reach for this tape in kitchens (under-cabinet and toe-kick), bathrooms, coffered ceilings, closets, home theatres, garages and workshops, as well as in stores, restaurants, salons, offices and reception desks. The IP66 rating makes it a smart pick for humid and splash-prone spots — a Québec basement, a bathroom cove, a covered porch ceiling — where a standard indoor tape would be a gamble. It needs a 24V DC driver and, ideally, an aluminum profile to protect and diffuse it. Prefer another white? The same tape is offered as LED strip 24V 19.2W/M IP22 (30K), LED strip 24V 19.2W/M IP22 (40K) and LED strip 24V 19.2W/M IP22 (50K). Roll it out and light your project properly.

Built for long, seamless runs
This LED tape light is built on a 10 mm wide flexible printed circuit board with a 3 oz. copper PCB — a heavier copper layer than budget tapes use, which helps carry current and pull heat away from the diodes over long runs. Populated with 128 LEDs per metre using Epistar 2835 SMD chips, the strip produces a dense, near-continuous line of light rather than visible hot spots. It draws 19.2W per metre (±10%), so it is a high-output tape suited to primary lighting, not just accent glow. The IP66 protection rating means the emitting surface is sealed against dust and water jets, making it far more forgiving in bathrooms, basements, commercial kitchens and covered exterior ceilings than an open tape.

Light quality you can trust on finishes
Efficacy is rated at 120 LM/W, and the CRI 90+ rendering is the spec that matters most when light lands on materials: white oak cabinetry, quartz counters, paint samples, clothing on a rack or food on a plate all keep their real colour. The 3500K colour temperature is the diplomat of white light — warmer than an office, cleaner than a lamp — which is why designers use it in open-concept homes where a kitchen flows into a living room. The 120° lighting angle washes broad surfaces evenly, and because the strip is dimmable, you can drop it to a soft evening level or run it full tilt for task work.

Technical specifications
SKU: LCLS24V-96W-35K-IP66-30M
Chip: Epistar 2835 SMD
LEDs per metre: 128 pcs
Power: 19.2W/M ±10%
Efficacy: 120 LM/W
CRI: 90+
Colour temperature: 3500K
Beam angle: 120°
Voltage: 24V DC
Dimmable: Yes
PCB width: 10 mm
PCB thickness: 3 oz.
Max length: 10 m
Cut size: 62.5 mm (8 LEDs)
Protection rating: IP66
Certification: UL
Lifespan: 50,000+ hours

Wiring and installation
Plan the job around two numbers: the strip runs on 24V DC and the maximum length per feed is 10 m. For anything longer, split the installation into separate runs fed from the driver rather than daisy-chaining, which protects against voltage drop and dim ends. Size your 24V DC LED driver to the total wattage of the tape you install (19.2W per metre) and leave headroom; if you want dimming, pair a compatible dimmable driver with the control system you plan to use. Cut only on the marked 62.5 mm (8 LED) increments, keep solder joints or connectors clean, and mount the tape in an aluminum profile with a diffuser whenever it will be seen — it hides the dots, protects the silicone and gives you that crisp architectural line. Clean and degrease the mounting surface first for lasting adhesion.

Applications, family and documentation
Concrete uses: under-cabinet task lighting over a kitchen counter, toe-kick and island lighting, a glowing cove around a bedroom ceiling, backlit bathroom mirrors, stair and hallway guidance, closet shelving, bar fronts, retail display cases, reception desk feature walls and workshop benches. In the same family you can match the look at lower output with the LED strip 4.8W/M 24V IP66 or the LED strip 9.6W/M 24V IP66, keep the same 19.2W/M output in a warmer white with the LED strip 19.2W/M 24V 96W 30K IP66, or add colour with the LED strip 14.4W/M 24V RGB IP66 — all 24V DC, so they share the same driver ecosystem. The full technical spec sheet for this tape is available in the Documentation tab for your submittals and permit files.

Technical Files
