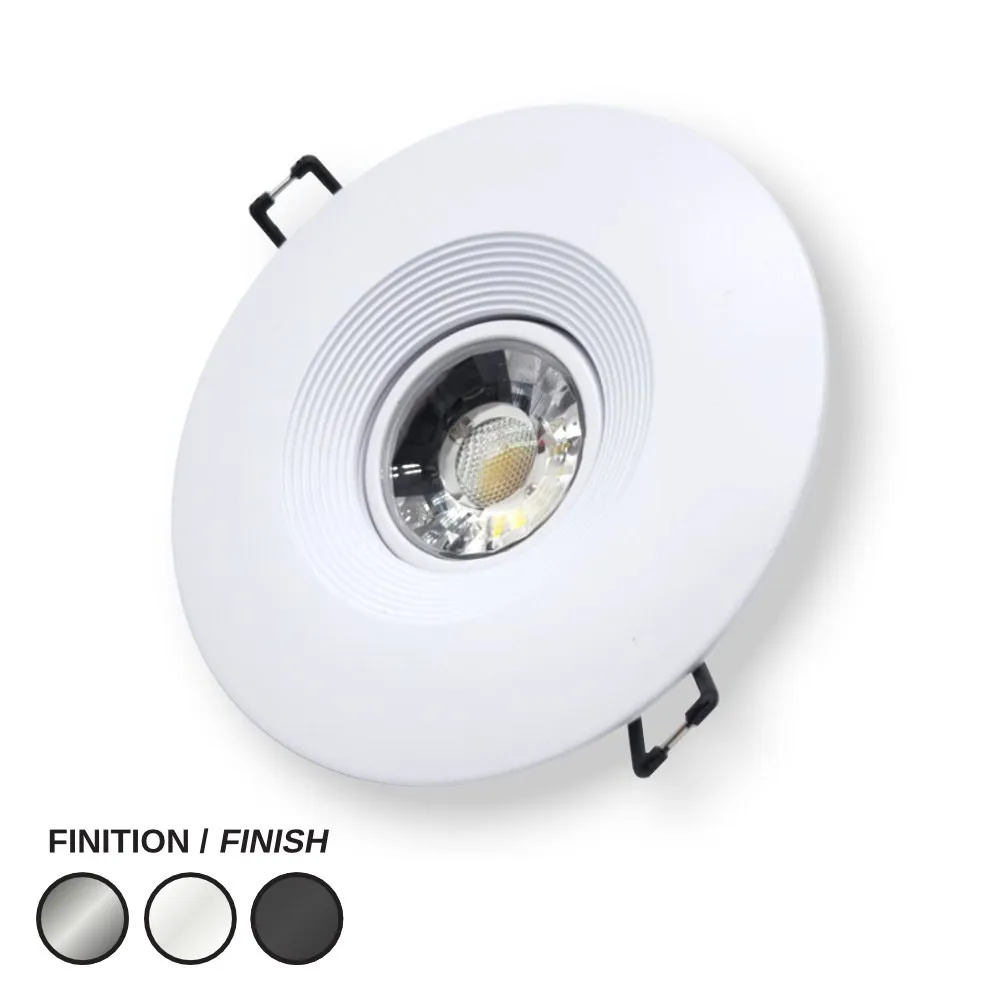

LED RECESSED 4" DLX ROUND - 8W - LCDLX4R-CCT-8W-WH

Name: LED RECESSED 4" DLX ROUND - 8W - LCDLX4R-CCT-8W-WH
Brand: LEDCO
SKU: LCDLX4R-CCT-8W-WH
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX4R-CCT-8W-WH

Brand: LEDCO

Some ceilings deserve light, not hardware. This 4" round recessed downlight, SKU LCDLX4R-CCT-8W-WH, is the kind of fixture people search for as a pot light, a round LED light, a recessed LED downlight or simply kitchen downlights — a clean white trim that sits flush in the ceiling and lets the beam do the talking. Its gimbal head tilts, so you can aim light at a backsplash, a bookcase, a piece of art or a sloped ceiling instead of settling for a straight-down wash. Whole-home layouts, hallways, offices, retail corners, condo renovations: this is the workhorse round downlight you can repeat from room to room.

Behind the simple look sits a serious little engine. It draws only 8W and delivers 784lm, with a 40° beam angle that keeps the light focused and comfortable. The five-position toggle switch on the junction box gives you 2700K / 3000K / 3500K / 4000K / 5000K tunable white, so one fixture covers everything from a cozy living room to a crisp task kitchen — no restocking, no guessing at the counter. CRI >80 keeps skin tones, paint colours and wood grain honest, and the power factor of >0.94 makes it an efficient load on a 110 - 130VAC circuit. It is Triac base dimmable, Type IC Rated, approved for Damp Location, cETLus certified, and backed by a 5 years warranty. The trim size is 3 & 4 inches interchangeable, and the fixture measures 108 mm (4.25") across with a 45 mm (1.8") depth.

It shines in kitchens over the island, in bathrooms and covered entries where damp-rated matters, in basements with tight joist cavities, in shops and small offices that need a tidy grid of light. Because it is IC rated, it can sit against insulation in Canadian attics and top-floor ceilings. Cut-out is 3" - 4.25" (78 - 108mm) for the 4" trim or 2.56" - 2.95" (65 - 75mm) for the 3" trim, so it drops into new work and retrofits alike. Want the same fixture in another finish? See the 4" DLX round downlight in black or the 4" DLX round downlight in brushed aluminum. Plan your spacing, then order the count you need.

Built to disappear into the ceiling
This is a round gimbal downlight with a slim body: 108 mm (4.25") overall diameter, 63 mm (2.5") and a shallow 45 mm (1.8") depth, with a 33 mm (1.33") detail on the trim profile. That low profile is exactly what you want in drop ceilings, tight joist cavities and renovations where you cannot lose headroom. The white trim keeps the fixture visually quiet, while the adjustable gimbal lets you rotate and tilt the head after installation — handy when the framing forces a cut-out slightly off centre from what you wanted to light. The 3 & 4 inches interchangeable trim means the same fixture can be finished as a 3" or a 4" recessed LED pot light, so one product covers two openings on the same jobsite.

Light quality and colour control
Output is 784lm from just 8W, shaped by a 40° beam that concentrates light where you aim it rather than spilling it across the room. CRI >80 keeps colours faithful — important over a kitchen counter, in a bathroom mirror zone or in a boutique display. Colour temperature is selected with the toggle switch on the junction box: upper position for 2700K, second for 3000K, middle for 3500K, fourth for 4000K, lower position for 5000K. Set it before you clip the fixture in and every downlight in the room will match exactly.

Technical specifications
Power: 8W
Lumens: 784lm
Color temperature: 2700K / 3000K / 3500K / 4000K / 5000K Tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim color: White
Dimming: Triac base dimmable
IC rated: Type IC Rated
Location: Damp Location
Certification: cETLus
Warranty: 5 years
3" cut-out: 2.56" - 2.95" (65 - 75mm)
4" cut-out: 3" - 4.25" (78 - 108mm)
SKU: LCDLX4R-CCT-8W-WH

Wiring, dimming and compatibility
The fixture runs on 110 - 130VAC line voltage through its junction box and is Triac base dimmable. The spec sheet lists tested dimmers including Lutron S-603P, CTCL-153P, TG600P, DV600P, LG600P, SCL-153P, MAW-600, LGCL-153P, 7SCL-153P, 600PH, DV-600P, 6838, CTELV-303P, CTCL-153PD, and Leviton 6633-P, 1C33L1, 6674 and 6838 — note that the Lutron MS-VP600G is listed as N/A for dimming. For surface installations or ceilings without a suitable cavity, mounting plates are available: LCPLATE-4 for the 4 inch and LCPLATE-3 for the 3 inch. Being Type IC Rated and Damp Location approved with cETLus certification, it is a safe pick for insulated ceilings, bathrooms and covered porches.

Applications and documentation
Think a run of six over a kitchen island set to 4000K, a soft 2700K perimeter in a primary bedroom, aimed heads grazing a stone fireplace, or a tidy grid in a clinic waiting room and a small office. Contractors like keeping one carton on the truck: same fixture, five whites, two trim sizes. For finish coordination across a project, the same model is offered in black and brushed aluminum. The full technical PDF — dimensional drawing, CCT toggle positions, dimmer chart and mounting plate references — is in the Documentation tab.

Technical Files
