LED RECESSED 3" DLX ROUND - 8W

Name: LED RECESSED 3" DLX ROUND - 8W
Brand: LEDCO
SKU: LCDLX3R-CCT-8W-BK
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX3R-CCT-8W-BK

Brand: LEDCO

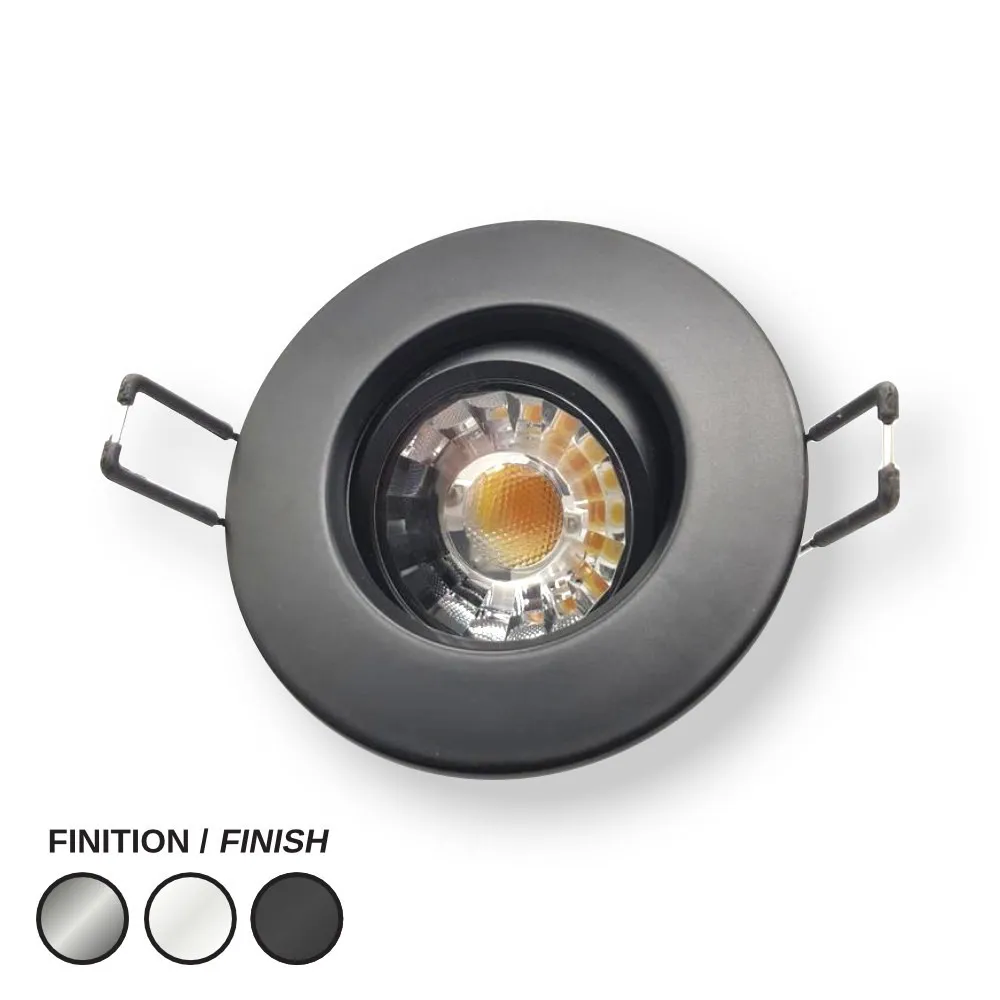

Small aperture, big impact: meet the 3" round gimbal downlight in black, the discreet recessed LED light that disappears into the ceiling and lets the light do the talking. Whether you call it a pot light, a recessed can light, a round LED downlight or simply an encastré, this is the fixture people reach for when they want clean ceilings and directional, adjustable light. The gimbal head tilts, so you can aim the beam at a stone feature wall, a bookcase, artwork or a kitchen island instead of simply washing the floor. It is a favourite for kitchen downlights, hallways, closets, stairwells, condo ceilings, retail displays and tight plenums where a bigger housing will not fit.

This is SKU LCDLX3R-CCT-8W-BK, and the numbers back up the look: 8W delivering 784lm through a focused 40° beam angle, with a CRI of >80 so wood tones, paint and merchandise keep their real colour. The 5 selectable colour temperatures — 2700K, 3000K, 3500K, 4000K and 5000K — are set with a toggle switch on the junction box, so one fixture covers a cozy living room or a crisp work area without reordering. It runs on 110-130VAC with a power factor of >0.94, is Triac base dimmable, Type IC Rated, approved for damp locations, cETLus certified, and comes with a 5 years warranty. The trim is interchangeable between 3 and 4 inches, and the black trim keeps the ceiling looking sharp.

It earns its place in Canadian homes and businesses: kitchens and corridors in a renovated bungalow, condo ceilings with shallow clearance, basement stairs, boutique and café accent rows, office lobbies, and damp-rated spots such as covered entries and bathrooms outside the shower zone. Because it is IC Rated, it can sit against insulation in an attic ceiling — always confirm your local code and vapour barrier detail. Prefer a different trim on the same fixture? See the LED recessed 3" DLX round 8W in white or the LED recessed 3" DLX round 8W in brushed aluminum. Plan your spacing, check the spec sheet cut-out sizes, and order your row today.

Built for tight ceilings
This round gimbal downlight is designed around a compact body — 45 mm (1.8") and 63 mm (2.5") deep by 33 mm (1.33") and 108 mm (4.25") across per the technical drawing — so it slips into shallow ceiling cavities where a traditional can simply will not go. The real trick is the interchangeable trim: the same fixture accepts a 3 inch or 4 inch trim, which makes retrofits far easier when you are replacing older holes of different sizes. Cut-out for the 3" trim is 2.56" - 2.95" (65 - 75mm); cut-out for the 4" trim is 3" - 4.25" (78 - 108mm). The gimbal lets you tilt the head after installation, turning a plain recessed pot light into a true accent light.

Light quality and colour control
At 8W the fixture puts out 784lm in a 40° beam, tight enough to sculpt a feature wall or highlight a counter without spilling everywhere. A CRI of >80 keeps skin tones, cabinetry and product colours honest. The 5 colour temperature settings are chosen with the toggle switch on the junction box: upper position 2700K, second position 3000K, middle position 3500K, fourth position 4000K, lower position 5000K. That means one box of fixtures can serve a warm bedroom, a neutral hallway and a cooler workshop — decided on site, at the moment of install.

Technical specifications
Power: 8W
Lumens: 784lm
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K Tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim colour: Black
Dimming: Triac base dimmable
IC Rated: Type IC Rated
Location: Damp Location approved
Certification: cETLus
Warranty: 5 years
3" cut-out: 2.56” - 2.95” (65 - 75mm)
4" cut-out: 3” - 4.25” (78 - 108mm)
SKU: LCDLX3R-CCT-8W-BK

Wiring, dimming and compatibility
The fixture runs on standard 110 - 130VAC line voltage and is Triac base dimmable, so it works with common forward-phase wall dimmers. The spec sheet lists tested models including Lutron S-603P, CTCL-153P, TG600P, DV600P, LG600P, SCL-153P, MAW-600, LGCL-153P, 7SCL-153P, 600PH, DV-600P, 6838, CTELV-303P and CTCL-153PD, along with Leviton 6633-P, 1C33L1, 6674 and 6838-type controls; the Lutron MS-VP600G is listed as N/A for dimming. Mounting plates are available for both apertures: the 3 inch plate (LCPLATE-3) and the 4 inch plate (LCPLATE-4). Always cut power at the panel, dry-fit one unit and test it on your dimmer before drilling the rest of the ceiling.

Where it works and what else to look at
Think kitchen perimeters aligned with the counter edge, hallway runs pulled slightly away from the wall so the beam grazes the surface, closets, stair soffits, retail shelving, café banquettes and office reception walls. The Damp Location approval and Type IC Rated construction also make it suitable for bathrooms outside the shower zone and for insulated ceilings. Matching finishes are available for mixed-material projects: the white trim version and the brushed aluminum trim version share the same body and specs. The full technical PDF, with the drawing, cut-out dimensions, colour temperature toggle chart and dimmer compatibility list, is in the Documentation tab.

Technical Files
