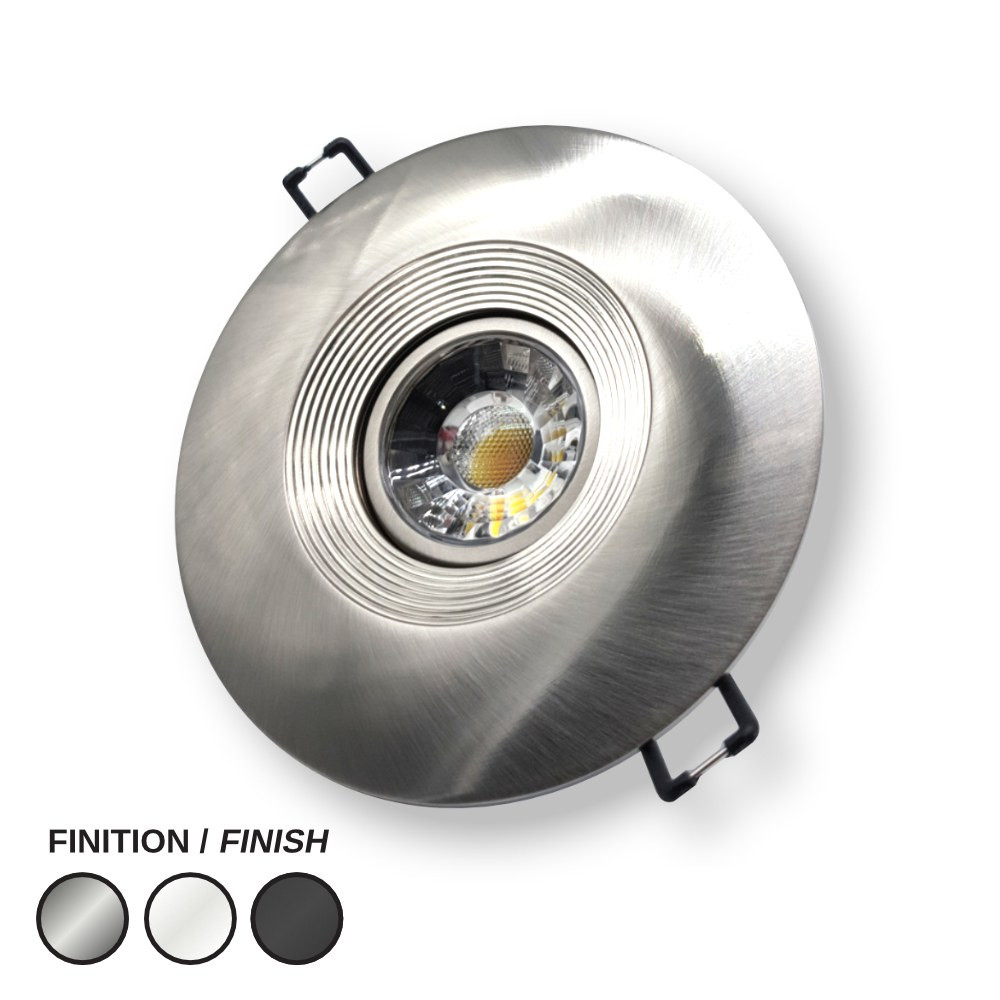

LED RECESSED 4" DLX ROUND - 8W - LCDLX4R-CCT-8W-BN

Name: LED RECESSED 4" DLX ROUND - 8W - LCDLX4R-CCT-8W-BN
Brand: LEDCO
SKU: LCDLX4R-CCT-8W-BN
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX4R-CCT-8W-BN

Brand: LEDCO

Some ceilings look better when you barely notice the lights — and that is exactly what this 4" round gimbal downlight does. Known on the jobsite as a pot light, a recessed downlight or simply a round LED light, model LCDLX4R-CCT-8W-BN sits flush against the drywall with a discreet brushed nickel trim, letting the beam do the talking instead of the hardware. Its adjustable gimbal lets you aim the light where it matters: a backsplash, a piece of art, a display shelf or a staircase. Compact and low-profile, it slips into tight ceiling cavities, hallways, closets and renovation projects where a bulkier housing simply will not fit — one of the reasons dimmable LED downlights like this one have replaced old halogen cans in so many Canadian homes and shops.

Under the trim, the numbers work in your favour. The 8W LED engine delivers 784 lm with a tight, controlled 40° beam angle, so you get punchy accent light without washing out the whole room. A toggle switch on the junction box gives you five colour temperatures — 2700K, 3000K, 3500K, 4000K and 5000K — so one fixture covers a cosy living room, a neutral hallway and a crisp work zone. CRI >80 keeps wood grain, paint colours and skin tones looking honest, a real plus in kitchen downlights and retail displays. It runs on 110–130VAC with a power factor >0.94, is Triac dimmable with compatible dimmers, Type IC rated and approved for damp locations. The trim is interchangeable between 3" and 4", so the same unit adapts to a 3" cut-out of 2.56"–2.95" (65–75 mm) or a 4" cut-out of 3"–4.25" (78–108 mm). It measures 108 mm (4.25") across and only 45 mm (1.8") deep, carries cETLus certification and comes with a 5 year warranty.

Put it to work in kitchens, bathrooms, basements, corridors, walk-in closets, sloped ceilings, condos, boutiques, clinics and cafés — anywhere a discreet recessed LED downlight needs to deliver clean light with minimal ceiling clutter. The damp location rating also suits covered porches and enclosed soffits, handy for Canadian weather. Prefer a different trim colour for the same fixture? The same model is offered in LED recessed 4" DLX round 8W in white and in LED recessed 4" DLX round 8W in black, so you can mix finishes room by room. Check the spec sheet in the Documentation tab for cut-out sizes and the compatible dimmer list, then order the quantity your layout calls for.

Construction and trim options
This is a round gimbal downlight built around an adjustable inner ring, so the light head tilts inside the housing instead of staying locked straight down. That small feature changes everything on site: you can graze a stone wall, highlight cabinetry or correct the aim on a sloped ceiling after the drywall is closed. The outer diameter measures 108 mm (4.25") with a shallow 45 mm (1.8") body, plus 63 mm (2.5") and 33 mm (1.33") dimensions detailed in the technical drawing. The trim on this SKU is brushed nickel, and the trim size is interchangeable between 3 and 4 inches — a genuine advantage in retrofits, where existing holes are rarely the size you hoped for.

Light quality and colour selection
The 8W LED module produces 784 lm within a 40° beam angle, a focused distribution that creates defined pools of light rather than flat, shadowless glare. CRI >80 renders wood, tile, fabric and food colours accurately. Colour temperature is selected with a toggle switch on the junction box: upper position 2700K, second position 3000K, middle position 3500K, fourth position 4000K, lower position 5000K. Contractors love this because one box of fixtures covers the whole job — warm tones in bedrooms and living rooms, 3500K or 4000K in kitchens and bathrooms, 5000K in garages, workshops and task areas — and you can still change your mind before the trim goes on.

Technical specifications
Model: LCDLX4R-CCT-8W-BN
Power: 8W
Lumens: 784lm
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim colour: Brushed Nickel
Dimming: Triac base dimmable
IC rated: Type IC Rated
Location: Damp Location
Certification: cETLus
Warranty: 5 years
3" cut-out: 2.56" - 2.95" (65 - 75mm)
4" cut-out: 3" - 4.25" (78 - 108mm)

Installation, dimming and compatibility
Wiring happens at the junction box, and the shallow depth makes this fixture friendly to joists, ducts and shallow bulkheads. Cut the power at the panel, confirm the cavity is clear of wiring and framing, then size your hole: 2.56"–2.95" (65–75 mm) with the 3" trim, or 3"–4.25" (78–108 mm) with the 4" trim. Because it is Type IC rated, it can be used in contact with insulation, and its damp location approval covers bathrooms, covered entries and soffits. Dimming is Triac based; the spec sheet lists the tested dimmers, including Lutron S-603P, CTCL-153P, DV600P, SCL-153P, TG600P, LG600P, MAW-600, LGCL-153P, 7SCL-153P, 600PH, DV-600P, 6838, CTELV-303P, CTCL-153PD, and Leviton 6633-P, 1C33L1, 6674 and 6838-class controls as shown in the table. Mounting plates are also referenced for both sizes: 4 inch plate (LCPLATE-4) and 3 inch plate (LCPLATE-3).

Applications and documentation
Typical projects include kitchen perimeters and islands, bathroom vanities, hallway runs, basement renovations, stairwells, condo living rooms, boutique display walls, clinic waiting rooms and café seating areas. In a commercial fit-out, the 40° beam and tiltable head make it a neat picture-light or shelf-accent solution without adding track. To keep a consistent look across an open plan, this fixture is also available as LED recessed 4" DLX round 8W white trim and LED recessed 4" DLX round 8W black trim. The full technical PDF — drawing, cut-out dimensions, colour temperature settings, trim options, product numbers and the compatible dimmer chart — is available in the Documentation tab, so your electrician has everything needed before the first hole is cut.
