LED RECESSED 4" DLX ROUND - 8W

Name: LED RECESSED 4" DLX ROUND - 8W
Brand: LEDCO
SKU: LCDLX4R-CCT-8W-BK
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX4R-CCT-8W-BK

Brand: LEDCO

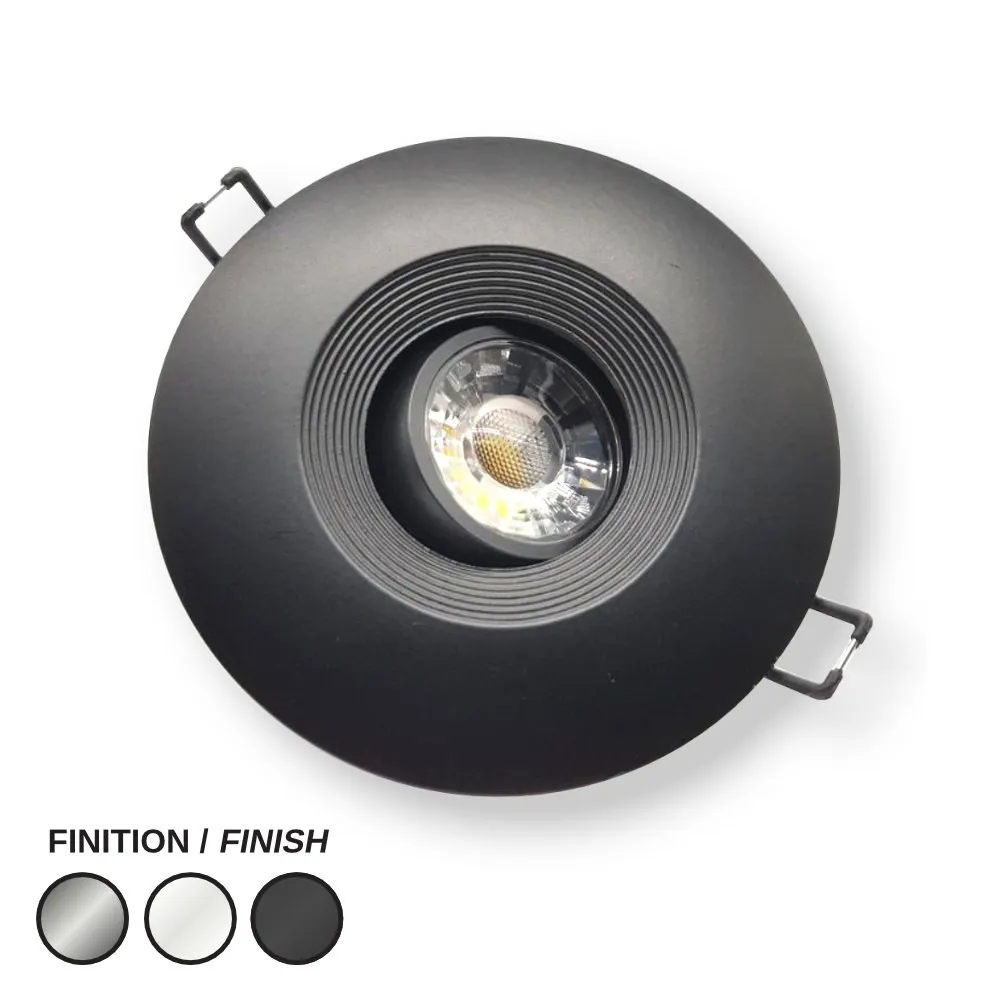

Bright, clean, and almost invisible in the ceiling — that's the promise of this 4-inch round downlight in a black trim, SKU LCDLX4R-CCT-8W-BK. Call it what you like: recessed lighting, a pot light, a round LED downlight or a gimbal downlight — it's the small-aperture fixture renovators reach for when they want plenty of light without a busy, cluttered ceiling. The trim sits flush against the drywall for a minimal finish, and the round shape blends effortlessly into hallways, closets, bathrooms, kitchens and tight soffits where a bigger fixture would feel heavy. Because it's a gimbal head, you can also tilt the beam to graze a stone wall, wash a bookcase or aim light onto a countertop instead of just straight down.

Behind that discreet black ring sits a serious little engine: 8W delivering 784 lm, with a focused 40° beam angle that keeps light where you aim it. The CCT is tunable on site — a toggle switch on the junction box sets 2700K, 3000K, 3500K, 4000K or 5000K, so one fixture covers a warm living room and a crisp workshop. With a CRI >80, wood tones, paint and fabrics look natural instead of washed out. It runs on 110–130VAC with a power factor >0.94, it's Triac dimmable with compatible dimmers, it's Type IC Rated and Damp Location approved, and it carries a cETLus certification plus a 5 years warranty. The trim size is 3 and 4 inches interchangeable, and the compact body measures 108 mm (4.25") across at just 45 mm (1.8") and 63 mm (2.5") deep.

This is the downlight for kitchen ceilings, basement renovations, hallways, walk-in closets, ensuite bathrooms and small commercial spaces like boutiques, clinics and offices — anywhere a Canadian renovation calls for even, glare-controlled light in a shallow ceiling cavity. Plan your spacing before cutting so units stay a consistent distance from walls and you avoid scalloped shadows, cut power at the panel, and confirm your dimmer model first. Want a different look on the same ceiling? The same fixture is offered in LED recessed 4" DLX round 8W in white and LED recessed 4" DLX round 8W in brushed aluminum. Add this one to your layout and light the whole room properly.

Built small, built to last
This round gimbal downlight packs its LED module, driver and adjustable head into a body that measures 108 mm (4.25") in diameter, 45 mm (1.8") and 63 mm (2.5"), with a slim 33 mm (1.33") dimension on the technical drawing. The black trim gives you a defined dot on a white ceiling — a detail designers love in kitchens and stairwells — while the optic is recessed inside the housing so you're not staring into a bright source when you look up. The gimbal lets you tilt the head, so the same recessed light can do flat ambient lighting in a hallway and angled accent lighting on a feature wall.

Light quality you can set on site
Five colour temperature settings are selected with the toggle switch on the junction box: upper position for 2700K, second position for 3000K, middle for 3500K, fourth for 4000K and lower for 5000K. That means one box of fixtures covers the whole house — warm 2700K or 3000K in bedrooms and living rooms, 3500K or 4000K in kitchens and bathrooms, 5000K in a garage or workshop. With 784 lumens from only 8W and a CRI >80, colours stay true and the energy bill stays low compared to old halogen pot lights.

Technical specifications
SKU: LCDLX4R-CCT-8W-BK
Power: 8W
Lumens: 784lm
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K Tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim colour: Black
Dimming: Triac base dimmable
IC rated: Type IC Rated
Location: Damp Location
Certification: cETLus
Warranty: 5 years
3" cut-out: 2.56” - 2.95” (65 - 75mm)
4" cut-out: 3” - 4.25” (78 - 108mm)

Wiring, dimming and installation
Feed it from a standard 110 - 130VAC circuit through the junction box, set your colour temperature, then clip the fixture into the opening. The 4" cut-out range of 3” - 4.25” (78 - 108mm) is forgiving on renovation ceilings, and the interchangeable 3 and 4 inch trim means you can also drop it into a 2.56” - 2.95” (65 - 75mm) hole. Because it's Type IC Rated, it can sit in contact with insulation, and its Damp Location approval suits covered porches, bathrooms and laundry rooms. For dimmable LED downlights that behave, stick to the listed Triac dimmers: Lutron S-603P, CTCL-153P, TG600P, DV600P, LG600P, SCL-153P, MAW-600, LGCL-153P, 7SCL-153P, 600PH, DV-600P, 6838, CTELV-303P, CTCL-153PD, and Leviton 6633-P, 1C33L1 and 6674. Mounting plates are available in a 4 inch plate (LCPLATE-4) and a 3 inch plate (LCPLATE-3).

Where it works and what's on the page
Use it in kitchens over islands and counters, in hallways, closets, ensuites, finished basements, home offices and tight soffits, and in commercial fit-outs like boutiques, clinics, salons and small offices where a clean grid of round LED lights replaces dated fixtures. Mixing finishes across one project is easy: the same model is offered as LED recessed 4" DLX round 8W white and LED recessed 4" DLX round 8W brushed aluminum. The full technical PDF spec sheet, with the drawing, cut-out sizes, colour temperature settings and the complete compatible dimmer list, is in the Documentation tab — worth a read before you start cutting.
