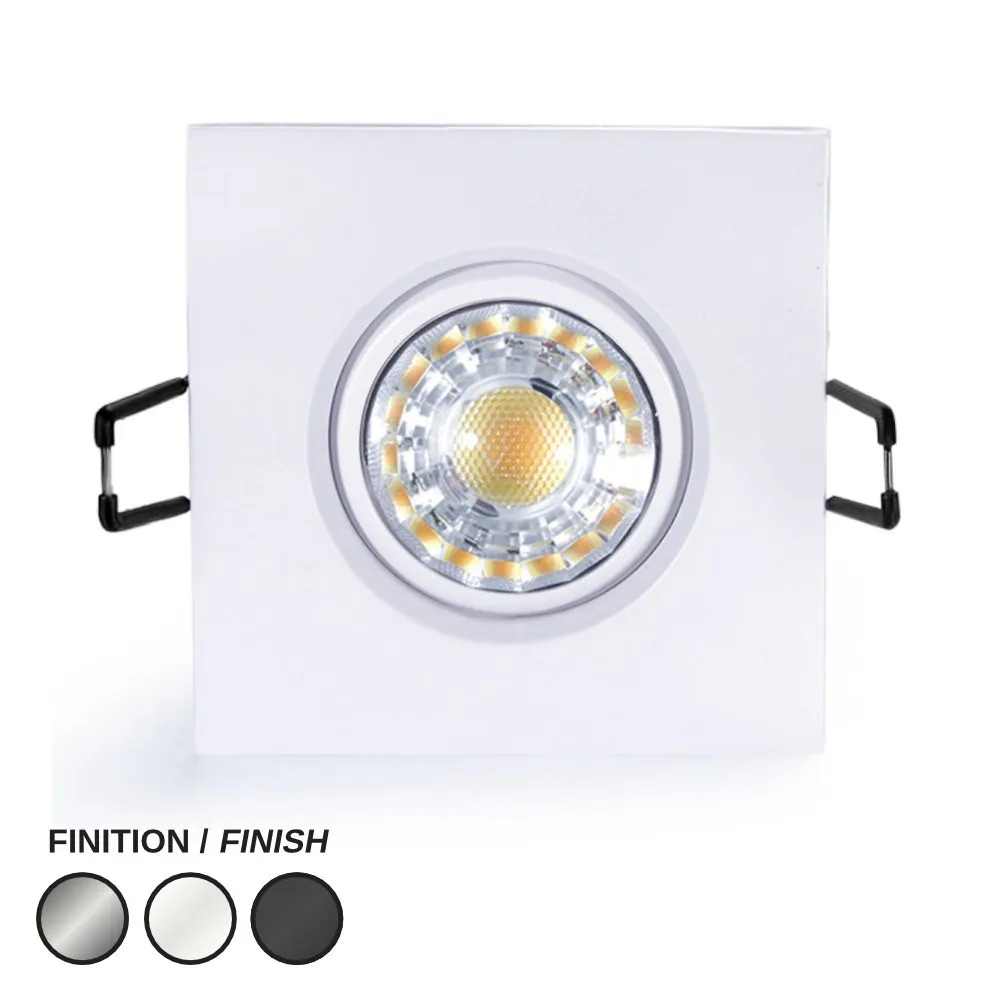

LED RECESSED 3" DLX SQUARE - 8W - LCDLX3S-CCT-8W-WH

Name: LED RECESSED 3" DLX SQUARE - 8W - LCDLX3S-CCT-8W-WH
Brand: LEDCO
SKU: LCDLX3S-CCT-8W-WH
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX3S-CCT-8W-WH

Brand: LEDCO

A clean square hole in the ceiling and a beam you can aim exactly where you want it — that's the whole idea behind this 3" square LED downlight. Often called a square recessed light, a square pot light or a gimbal downlight, it's the fixture people reach for when they want dimmable LED downlights that disappear into a modern ceiling. The crisp square trim lines up beautifully in rows down a hallway, over a kitchen island, across an open-plan ceiling, or angled toward a feature wall, a fireplace surround or artwork. Because the head tilts inside the trim, one fixture can do general lighting in one room and accent lighting in the next.

The numbers back up the look. This model delivers 784 lm from 8 W, with a tight-enough 40° beam angle to keep light where it belongs, and a CRI of over 80 so paint, wood, countertops and merchandise read true. The selectable colour temperature gives you 2700K, 3000K, 3500K, 4000K and 5000K from a toggle switch on the junction box — one order covers a cozy living room and a bright workshop. It runs on 110–130 VAC with a power factor above 0.94, is Triac dimmable, Type IC rated, approved for damp locations and certified cETLus. The white trim is interchangeable between 3 and 4 inches, with a shallow 45 mm (1.8") body, a 63 mm (2.5") square face and a 3" cut-out of 2.56"–2.95" (65–75 mm). Warranty: 5 years.

SKU LCDLX3S-CCT-8W-WH is right at home in Canadian condos, basements and low-clearance ceilings where the joist space is tight, and its damp location rating suits covered porches, bathrooms with good ventilation and laundry rooms. Retailers, cafés and offices use rows of them for even, glare-controlled coverage. Pair the white trim with the same fixture in black square downlight or brushed aluminum square downlight to separate living areas from accent zones. Plan your spacing, cut to the template, cut the power — and enjoy the result.

Built for tight ceilings
This square gimbal downlight was designed for renovation reality: shallow cavities, crowded joist bays and ceilings that already have plumbing or ductwork in the way. The housing is only 45 mm (1.8") deep, the visible square face measures 63 mm (2.5"), and the junction box sits at 108 mm (4.25") with a 33 mm (1.33") profile, so the whole assembly slips into places a can light simply won't go. The trim is interchangeable between 3" and 4", which means the same fixture can cover a 3" cut-out of 2.56"–2.95" (65–75 mm) or a 4" cut-out of 3"–4.25" (78–108 mm) — very handy when you're replacing older recessed lighting and the existing holes aren't consistent.

Light quality you can tune
Output is 784 lumens drawn from just 8 W, delivered through a 40° beam angle that concentrates light on the counter, the floor or the wall instead of spilling across the room. With a CRI greater than 80, skin tones, wood grain and paint colours stay honest. The five-position toggle switch on the junction box sets the colour: upper position for 2700K, second for 3000K, middle for 3500K, fourth for 4000K and lower for 5000K. Choose 2700K or 3000K for bedrooms and living rooms, 3500K or 4000K for kitchens and offices, 5000K for garages, workshops and retail displays.

Technical specifications
SKU: LCDLX3S-CCT-8W-WH
Power: 8W
Lumens: 784lm
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim colour: White
Dimming: Triac base dimmable
IC rated: Type IC Rated
Location: Damp Location
Certification: cETLus
Warranty: 5 years
3" cut-out: 2.56” - 2.95” (65 - 75mm)
4" cut-out: 3” - 4.25” (78 - 108mm)

Wiring, dimming and compatibility
The fixture runs on standard 110–130 VAC line voltage with an integrated driver in the junction box, so there's no remote transformer to hide above the ceiling. Being Type IC rated, it can sit in direct contact with insulation, and the power factor above 0.94 keeps the circuit efficient when you gang several on one run. Dimming is Triac (forward phase): the spec sheet lists tested dimmers including Lutron S-603P, CTCL-153P, TG600P, DV600P, LG600P, SCL-153P, MAW-600, LGCL-153P, 7SCL-153P, 600PH, DV-600P, 6838, CTELV-303P, CTCL-153PD and Leviton 6633-P, 1C33L1 and 6674. Matching mounting plates are referenced as LCPLATE-3 for 3" and LCPLATE-4 for 4" installations.

Applications and documentation
Think rows of kitchen downlights above an island, aimed heads grazing a stone fireplace, a hallway washed evenly from wall to wall, or a boutique where adjustable beams highlight shelving. The damp location approval extends it to covered entries, well-ventilated bathrooms and laundry areas. For a two-tone ceiling, mix this white trim with the black 3" DLX square downlight or the brushed aluminum 3" DLX square downlight — same body, same output, different accent. The complete technical PDF spec sheet, with the drawing, the colour temperature settings and the full dimmer list, is in the Documentation tab.
