LED RECESSED 4" DLX SQUARE - 8W

Name: LED RECESSED 4" DLX SQUARE - 8W
Brand: LEDCO
SKU: LCDLX4S-CCT-8W-BK
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX4S-CCT-8W-BK

Brand: LEDCO

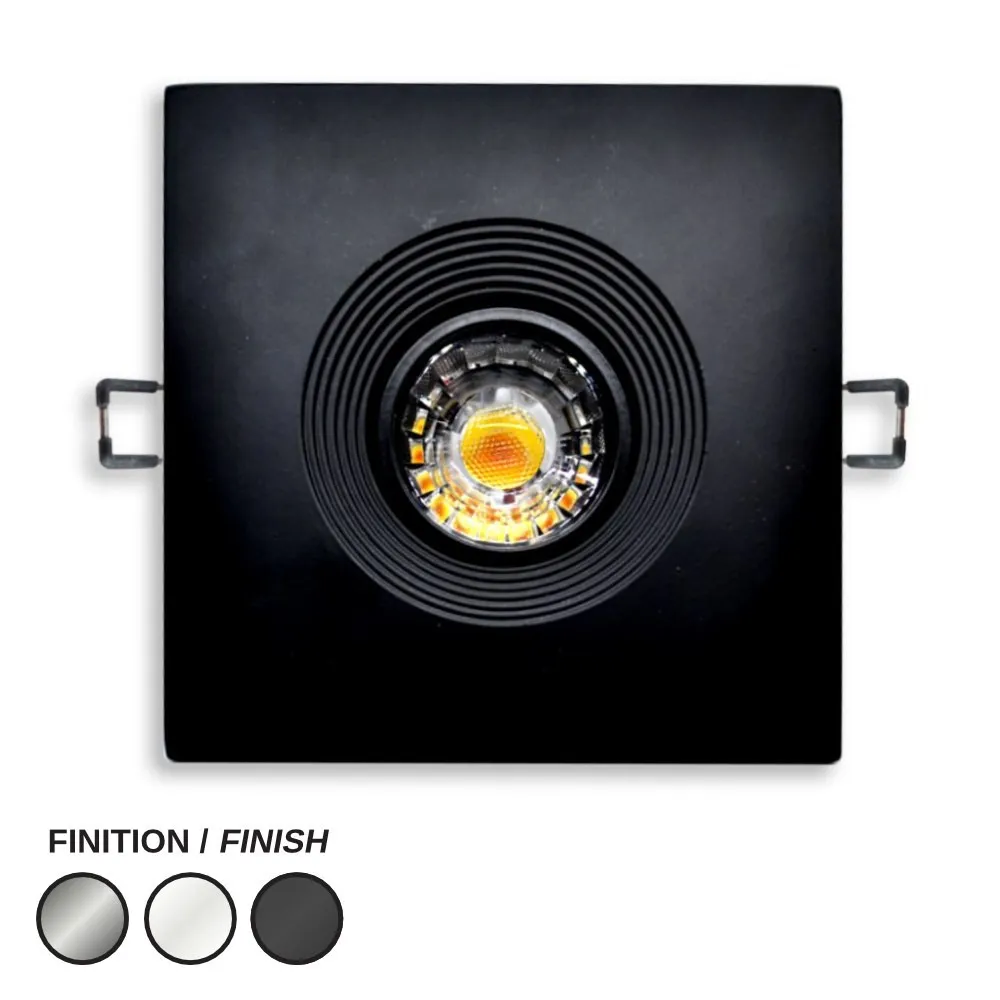

Give your ceiling a crisp, architectural look with the LED recessed 4" DLX square downlight in black — a compact square downlight that trades the usual round hole for clean, modern lines. People shop for this one under a lot of names: square pot light, square gimbal downlight, dimmable LED downlight, 4 inch LED recessed light, or simply a black trim recessed light for a kitchen. Whatever you call it, it does the same job beautifully: even, uniform illumination from a low-profile trim that sits tight to the ceiling and keeps the light source tucked out of sight for less glare. Use it for general lighting in living rooms, kitchens, hallways and bedrooms, or line it up over retail displays, reception desks and office corridors.

This is SKU LCDLX4S-CCT-8W-BK, an 8W downlight that puts out 784 lumens through a focused 40° beam angle, with a gimbal you can aim at artwork, a backsplash or a feature wall. The selectable CCT gives you five colour temperatures — 2700K, 3000K, 3500K, 4000K and 5000K — chosen with a toggle switch on the junction box, so you can match every room from one box of fixtures. A CRI >80 keeps skin tones, paint colours and fabrics looking natural, and the fixture is Triac dimmable with compatible dimmers. It runs on 110-130VAC with a power factor >0.94, is Type IC rated and approved for damp locations, carries cETLus certification, and is backed by a 5 year warranty. The black trim measures 108 mm (4.25") across, and the trim is interchangeable between 3 and 4 inches.

In a Canadian home, this square black downlight looks right at home in a renovated kitchen, a basement family room, a covered entry or a bathroom ceiling, and its IC rating means it can sit in an insulated ceiling. Contractors like it for condo hallways, boutiques, cafés and small offices where a tidy, repeating grid of squares reads as intentional design. Cut-out is 3" to 4.25" (78 - 108 mm) for the 4" trim. Prefer a lighter ceiling? The same fixture is offered in white as LED recessed 4" DLX square - 8W in white. Plan your spacing, confirm your dimmer, and have a licensed electrician make the connection.

Construction and design
The DLXS is a square gimbal downlight built around a compact housing that slips into standard ceiling cavities, which is exactly what you want in a renovation where joists and ductwork rarely cooperate. The body measures 45 mm (1.8") deep with a 63 mm (2.5") section and a 33 mm (1.33") detail, while the visible black square trim spans 108 mm (4.25"). The gimbal lets you tilt the light engine to aim the beam, so a straight row of fixtures can still wash a stone wall or highlight a kitchen island. The trim is interchangeable between 3 and 4 inches, and the same platform is offered in white, black and brushed aluminum trims, making it easy to keep one look across a whole floor.

Light quality and colour selection
At 8W the fixture delivers 784lm in a 40° beam, a tighter spread than a wide flood, which gives you crisp pools of light and good punch on counters, art and merchandise. Five colour temperatures are built in — 2700K, 3000K, 3500K, 4000K and 5000K — and you choose one with the toggle switch on the junction box: upper position for 2700K, second for 3000K, middle for 3500K, fourth for 4000K, lower for 5000K. That means warm 2700K in a bedroom, neutral 3500K in a hallway and crisp 5000K in a garage or workshop, all from identical fixtures. With a CRI >80, wood grain, paint and fabrics read true instead of washed out.

Technical specifications
SKU: LCDLX4S-CCT-8W-BK
Power: 8W
Lumens: 784lm
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim colour: Black
Dimming: Triac base dimmable
IC rated: Type IC rated
Location: Damp location approved
Certification: cETLus
Lifespan: 39,000hrs
Warranty: 5 years
3" cut-out: 2.56" - 2.95" (65 - 75mm)
4" cut-out: 3" - 4.25" (78 - 108mm)

Installation, dimming and compatibility
Wiring is straightforward: the fixture runs on 110 - 130VAC line voltage through its junction box, so no separate driver shelf to find room for. Cut a 3" to 4.25" (78 - 108 mm) opening for the 4" trim, or 2.56" - 2.95" (65 - 75 mm) if you use the 3" trim, then let the spring clips pull the fixture flush. Because it is Type IC rated and approved for damp locations, it can go into insulated ceilings and into bathrooms, covered porches and soffits. For smooth Triac dimming, the spec sheet lists tested dimmers including the Lutron S-603P, CTCL-153P, DV600P, SCL-153P and the Leviton 6633-P, 1C33L1 and 6674; note that the Lutron MS-VP600G is listed as N/A for dimming. Mounting plates are available in 4 inch (LCPLATE-4) and 3 inch (LCPLATE-3) versions for surface or retrofit situations.

Applications and documentation
Think renovated kitchens on a grid over the counters, hallway runs in a condo, a boutique changing room, a dental office corridor, or a café where square trims echo the tile. The cETLus certification and 5 year warranty give contractors and building owners confidence on a bid, and a 39,000hrs rated life keeps maintenance calls rare in high ceilings and stairwells. The complete technical PDF (LCDLX4S-CCT-8W-BK Spec Sheet) is in the Documentation tab with the technical drawing, cut-out sizes, trim options and the full compatible dimmer list. If part of your project calls for a lighter trim, pair this black version with the LED recessed 4" DLX square - 8W in white and keep the same light output room to room.
