LED RECESSED 4" DLX SQUARE - 8W - LCDLX4S-CCT-8W-WH

Name: LED RECESSED 4" DLX SQUARE - 8W - LCDLX4S-CCT-8W-WH
Brand: LEDCO
SKU: LCDLX4S-CCT-8W-WH
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX4S-CCT-8W-WH

Brand: LEDCO

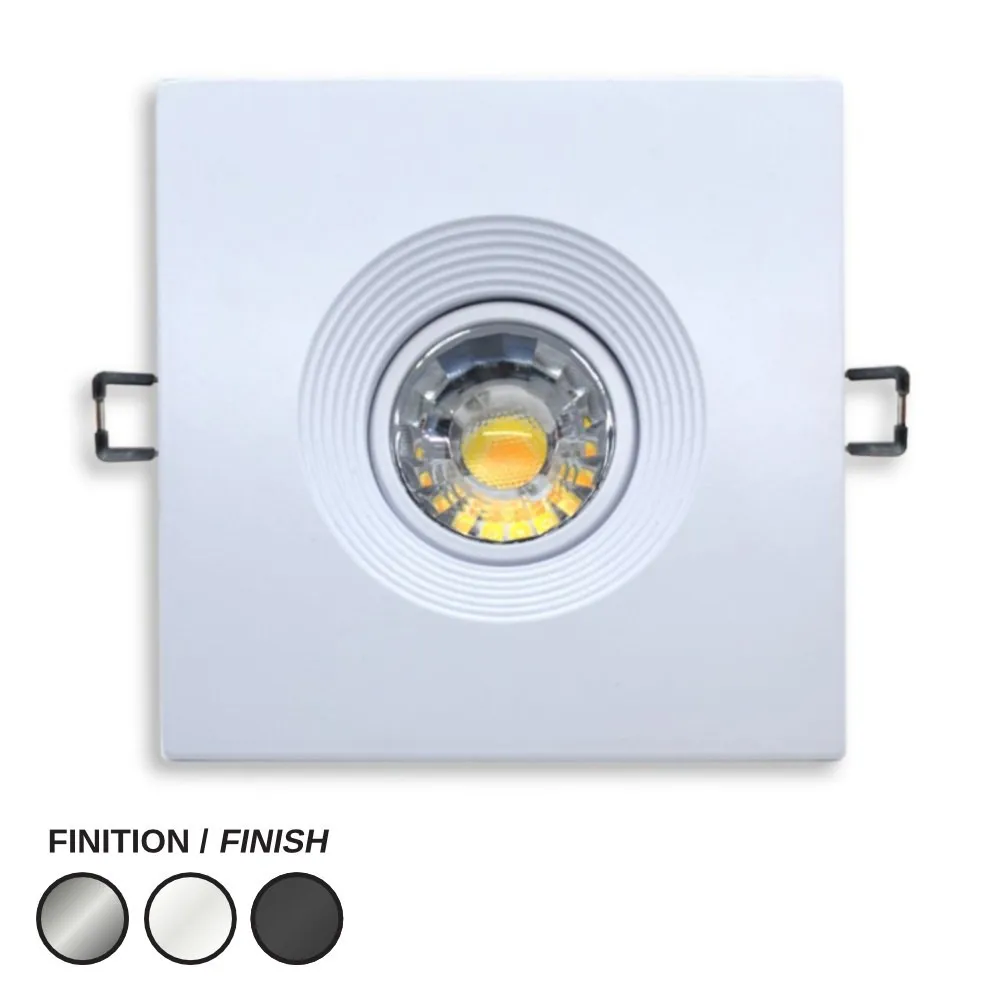

Square lines, zero fuss, and light you can tune to the room — that's the pitch behind this 4" square recessed LED downlight. Shoppers know it by a lot of names: square downlights, square pot lights, gimbal downlight, slim recessed light or simply a modern LED pot light. Whatever you call it, it's the fixture you reach for when you want a crisp, tailored ceiling instead of a row of round cans. The squared trim lines up beautifully in grids and rows over islands, hallways and open-concept living rooms, and because the gimbal lets you aim the beam, you can wash an accent wall, highlight artwork or push light exactly where the counter needs it. The low-profile housing tucks into shallow ceilings where a traditional can simply won't fit, and the recessed lens keeps the glare out of your eyes. SKU: LCDLX4S-CCT-8W-WH.

The numbers back up the looks. This dimmable LED downlight pulls 8W and delivers 784lm through a focused 40° beam — enough punch for task areas without blowing out a small room. The 5-position CCT switch on the junction box lets you pick 2700K, 3000K, 3500K, 4000K or 5000K, so one fixture covers cozy bedrooms and crisp kitchens alike and you stop juggling SKUs on a big order. CRI >80 keeps paint, cabinetry and skin tones looking honest. It runs on 110-130VAC with a power factor >0.94, dims with Triac-based dimmers, and is Type IC Rated and Damp Location approved. Certification is cETLus, lifespan is rated at 39,000hrs, and it's backed by a 5 years warranty. The trim is white, and the trim size is 3 & 4 inches interchangeable.

It's a natural in kitchens, bathrooms, hallways, basements, condos and finished attics where ceiling depth is tight, and just as at home in a clinic waiting room, boutique or small office. For Canadian renovations, the shallow build is a real advantage under joists and around ductwork, and the 4" cut out size of 3" - 4.25" (78 - 108mm) gives you room to work with existing holes. Mixing finishes room to room? The same fixture is offered in black as the LED recessed 4" DLX square - 8W. Set your colour temperature before you push it up, confirm your dimmer is on the compatible list, and enjoy a ceiling that finally looks intentional.

Clean square design, built low
This is a square gimbal downlight with a 40° beam, designed to sit tight to the ceiling instead of demanding a deep housing. The fixture measures 108 mm (4.25") across with a 63 mm (2.5") body and a 33 mm (1.33") depth dimension, plus a 45 mm (1.8") element on the technical drawing — small enough to slip between joists in a retrofit. The trim is interchangeable between 3 and 4 inches, which means one fixture can adapt to the opening you already have. The gimbal lets you tilt the light, so a row of square downlights can stay perfectly aligned visually while each head aims where the work happens.

Light quality you can set on site
Colour temperature is selected with a toggle switch on the junction box: upper position gives 2700K, second position 3000K, middle position 3500K, fourth position 4000K and lower position 5000K. That single switch turns one part number into five lighting moods — warm and relaxed for a living room, neutral for a hallway, cool and clean for a kitchen, bath or workshop. With CRI >80, whites read white and wood tones don't go muddy. The 8W module produces 784lm, and the tight 40° beam concentrates that output where you point it rather than spilling it across the ceiling. Being an integrated LED, there's no bulb to change, and solid-state construction handles frequent switching all day long.

Technical specifications
SKU: LCDLX4S-CCT-8W-WH
Power: 8W
Lumens: 784lm
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K Tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim colour: White
Dimming: Triac base dimmable
IC rated: Type IC Rated
Location: Damp Location
Certification: cETLus
Lifespan: 39,000hrs
Warranty: 5 years
3" cut out size: 2.56" - 2.95" (65 - 75mm)
4" cut out size: 3" - 4.25" (78 - 108mm)

Wiring, dimming and installation
Feed the junction box from a standard 110 - 130VAC circuit, set the CCT toggle before you push the unit up, then let the spring clips grab the drywall. Because it is Type IC Rated, it can be in contact with insulation, and its Damp Location approval covers covered porches and properly ventilated bathroom ceilings. Dimming is Triac based, and the spec sheet lists tested compatible dimmers including Lutron S-603P, CTCL-153P, TG600P, DV600P, LG600P, SCL-153P, MAW-600, LGCL-153P, 7SCL-153P, 600PH, DV-600P, 6838, CTELV-303P, CTCL-153PD and 6674, plus Leviton 6633-P, 1C33L1 and 6674 — using one of these is the simplest way to avoid flicker or drop-out at the low end. For new construction or when you want a fixed mounting point, the documentation also references the 4 inch plate (LCPLATE-4) and the 3 inch plate (LCPLATE-3).

Where it works, and what's in the box of documents
Think kitchen perimeters and islands, hallway runs in a condo, basement rec rooms with low ceilings, a bathroom ceiling over the vanity, retail shelving washed by angled beams, or a small clinic where colour accuracy matters. Contractors like the interchangeable 3 and 4 inch trim because one box covers two rough-in sizes on a mixed job. The full technical PDF (LCDLX4S-CCT-8W-WH Spec Sheet) is in the Documentation tab with the dimensional drawing, cut-out sizes, CCT switch positions and the complete dimmer compatibility table. If your design calls for a darker ceiling detail, the matching black version is the LED recessed 4" DLX square - 8W.

Technical Files
