LED RECESSED 3" DLX SQUARE - 8W

Name: LED RECESSED 3" DLX SQUARE - 8W
Brand: LEDCO
SKU: LCDLX3S-CCT-8W-BK
Price: 29.97 CAD
Availability: InStock

SKU: LCDLX3S-CCT-8W-BK

Brand: LEDCO

Square pot lights are having a moment, and this one nails the look: a crisp architectural opening, a matte black trim and a beam you can aim exactly where you want it. The LED RECESSED 3" DLX SQUARE - 8W (SKU LCDLX3S-CCT-8W-BK) is a gimbal square downlight — what most people call a square pot light, a recessed LED downlight or simply an encastré — with an integrated light engine, no bulb to buy and no bulb to replace. The tilting gimbal lets you wash a wall, graze a stone fireplace or drop light straight onto a countertop, which makes it just as useful for general ceiling lighting as for accenting. It's a natural choice for kitchen downlights, hallways, bedrooms, basements and retail displays where a square trim lines up better with cabinetry, tile and coffered details than a round one.

The numbers back up the looks. It delivers 784 lm from 8W, with a controlled 40° beam angle that keeps glare down and puts light where it belongs. A toggle switch on the junction box selects one of five colour temperatures — 2700K, 3000K, 3500K, 4000K or 5000K tunable — so one product covers a warm living room and a crisp workshop without stocking multiple SKUs. CRI is >80 for natural-looking wood, paint and skin tones, input voltage is 110-130VAC, and power factor is >0.94. It's Triac base dimmable with compatible dimmers, Type IC Rated, approved for Damp Location, and cETLus certified. The black trim measures 108 mm (4.25") across, sits 45 mm (1.8") deep, and the trim is 3 & 4 inches interchangeable.

From a Montréal condo renovation to a clinic waiting room or a boutique in a converted warehouse, this 3 inch recessed light fits Canadian ceilings and Canadian standards. The 3" cut out is 2.56" - 2.95" (65 - 75mm); with the 4" trim in place, the cut out becomes 3" - 4.25" (78 - 108mm), which is handy when you're replacing older fixtures. Need the same light in another finish to match different rooms? The same model is offered in white trim and brushed aluminum trim. Map out your spacing, pick your colour temperature and give the room the clean, even light it deserves.

Build and design

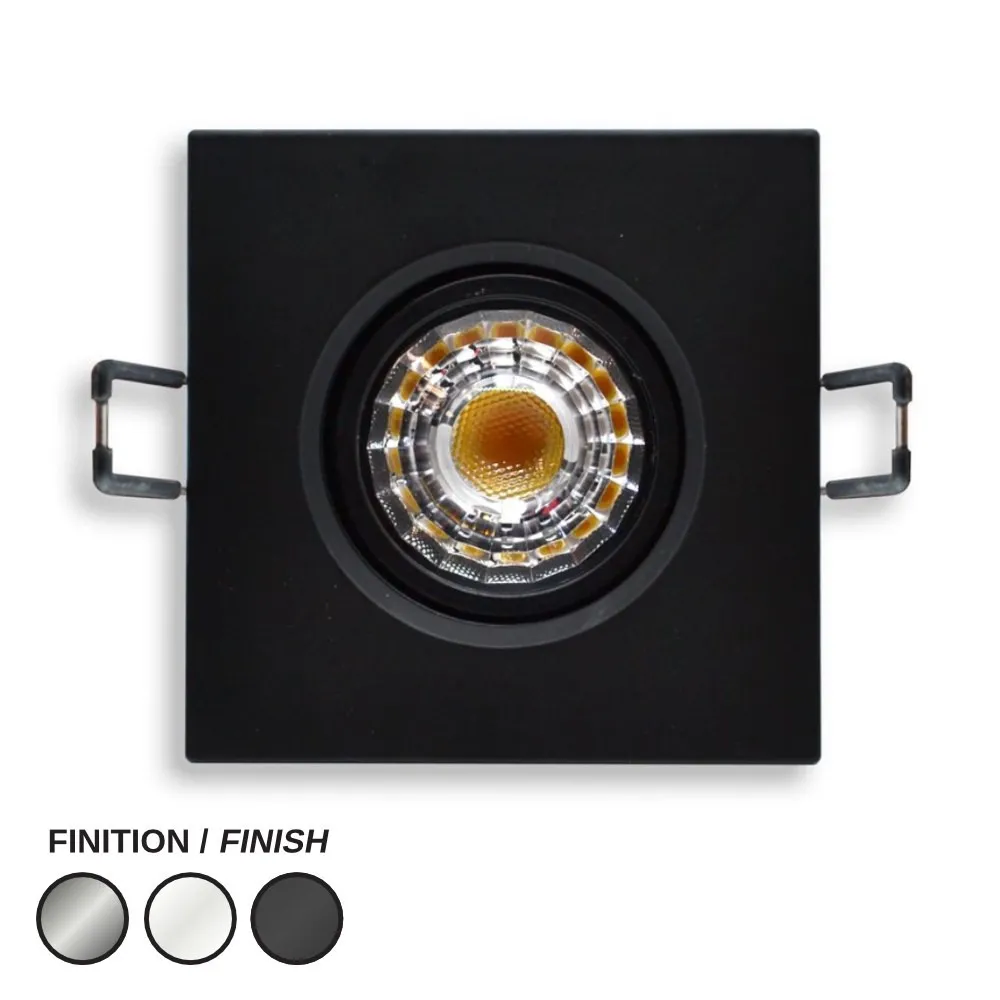

This is a square gimbal downlight built around an integrated LED module, so there's no lamp socket, no bulb and no mismatched colour down the road. The black trim gives a low-profile architectural line that disappears into dark ceilings and frames beautifully against white drywall. The gimbal tilts inside the square aperture, letting you angle the 40° beam toward a wall, a bookcase or a work surface while the trim stays square to the ceiling grid. Trim sizes are 3 & 4 inches interchangeable, so the same fixture adapts to a fresh cut-out or to an existing hole left by an older can.

Light quality and colour
Output is 784 lm at 8W, a comfortable level for residential and light commercial ceilings when fixtures are laid out in a regular grid. CRI is >80, which keeps wood grain, paint, fabrics and skin tones looking the way they should. The tunable CCT is selected with a toggle switch located on the junction box: upper position for 2700K, second position for 3000K, middle position for 3500K, fourth position for 4000K and lower position for 5000K. That means you can finish an entire job with one product and dial each room in on site — warm in bedrooms and dining rooms, neutral in kitchens, cooler in garages and offices.

Electrical, dimming and installation
Input voltage is 110-130VAC and power factor is >0.94. The fixture is Triac base dimmable, and the spec sheet lists tested dimmers including Lutron S-603P, CTCL-153P, DV600P, SCL-153P, LGCL-153P, MAW-600, CTELV-303P and CTCL-153PD, plus Leviton 6633-P, 1C33L1, 6674 and Lutron 6838; the Lutron MS-VP600G is listed as N/A for dimming. It is Type IC Rated and approved for Damp Location. For the 3" configuration, cut out 2.56" - 2.95" (65 - 75mm); with the 4" trim, cut out 3" - 4.25" (78 - 108mm). Mounting plates are available as accessories: LCPLATE-3 for the 3 inch plate and LCPLATE-4 for the 4 inch plate. Always cut power at the panel, verify ceiling clearance and follow local insulation and vapour barrier requirements.

Technical specifications
SKU: LCDLX3S-CCT-8W-BK
Power: 8W
Lumens: 784lm
Colour temperature: 2700K / 3000K / 3500K / 4000K / 5000K Tunable
Beam angle: 40°
CRI: >80
Input voltage: 110 - 130VAC
Power factor: >0.94
Trim size: 3 & 4 inches interchangeable
Trim colour: Black
Dimming: Triac base dimmable
IC rated: Type IC Rated
Location: Damp Location
Certification: cETLus
Warranty: 5 years
Dimensions: 108 mm (4.25") / 63 mm (2.5") / 45 mm (1.8") / 33 mm (1.33")

Applications and documentation
Think kitchen perimeters and island lighting, hallway runs, bathroom ceilings, finished basements, stairwells, and the accent rows that make a boutique, café, clinic or reception desk look intentional. Contractors like the interchangeable trim for retrofits where old cut-outs vary from unit to unit. To keep finishes consistent across a project, the same square downlight is available with a white trim version or a brushed aluminum trim version. The full technical PDF — with the drawing, the dimmer compatibility table, the CCT toggle positions and the ordering guide — is in the Documentation tab.

Technical Files
