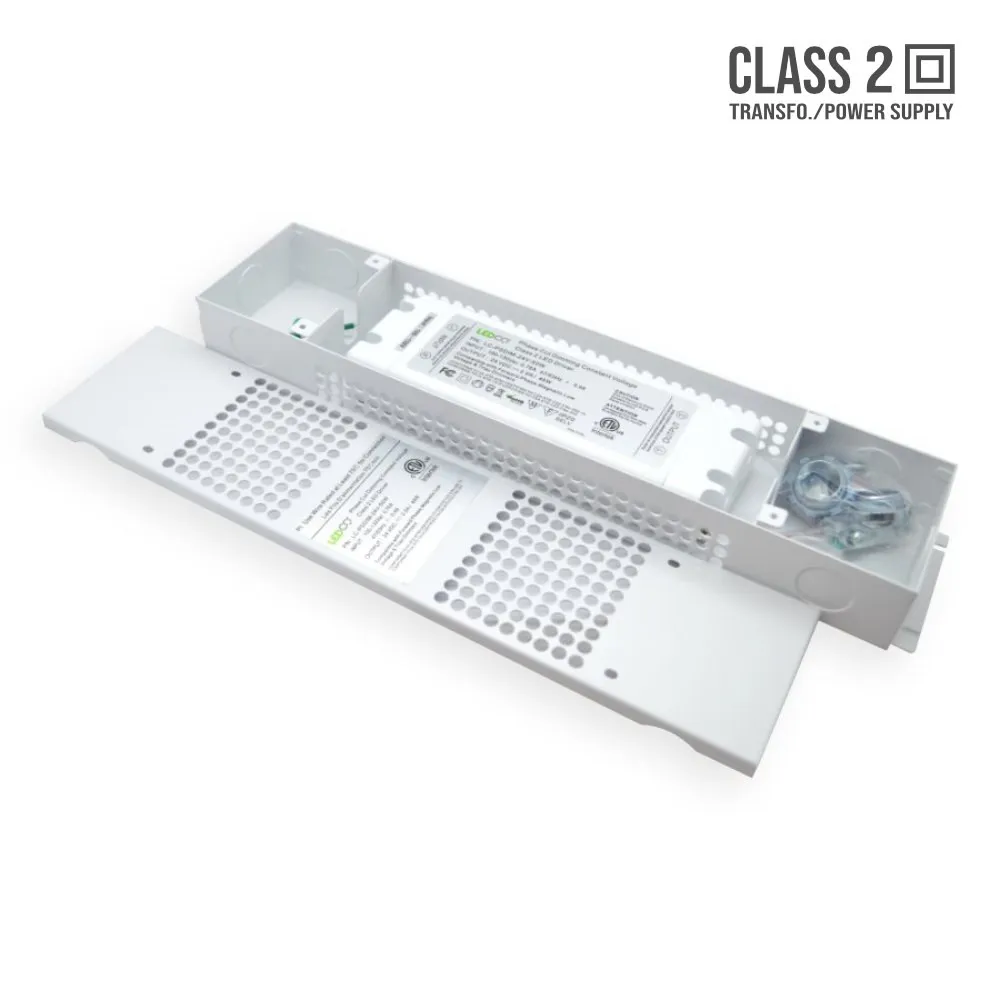

LED POWER SUPPLY - 48W

Dimmable power for bigger 12V runs
The LCPSLCODIM-12V-48W is a constant-voltage dimmable driver that converts line voltage into a steady 12V DC supply for LED strips and other 12V LED lighting. Unlike a basic on/off LED power supply, it responds to forward-phase, magnetic low-voltage and triac dimmers, and its PWM output keeps the light steady and flicker-free at every level. As a Class 2 LED driver built to the UL8750 and UL1310 safety standards, it is a dependable choice for homes and businesses alike.

Performance and built-in protection
Rated at 48W and 4A, the driver holds its 12V output within ±0.5V. It accepts 100-130V AC or 170-265V AC at 47-63 Hz, runs at a typical efficiency above 84% and keeps a power factor of 0.70 or more. In case of a short circuit it switches to hiccup mode and recovers automatically once the fault is removed; overload protection, over-current and over-temperature protection complete the package. If the temperature climbs above 100°C ±10°C, the output shuts off and comes back on its own after cooling. It is rated for -40°C to +60°C operation and 20-90% RH non-condensing humidity, and uses free air convection cooling in a full-protection plastic housing.

Installation and compatibility
Pair it with 12V constant-voltage LED strips, LED modules, other 12V LED lighting and moving sign applications. Add up the wattage of everything you connect and keep it comfortably below 48W, splitting larger layouts into zones with one driver each; the 24W 12V dimmable LED power supply and the 96W 12V dimmable LED power supply complete the family, and the 48W 24V dimmable power supply serves 24V strips. Its IP20 rating calls for a dry indoor location, such as inside a cabinet, above a dropped ceiling or in a mechanical room; note that the junction box is sold separately. Feed the driver's input from a compatible triac dimmer or MLV dimmer and entrust the wiring to a licensed electrician.

Applications and documentation
Think dimmable under-cabinet lighting along a full kitchen, cove ceilings, bedroom headboards, home theatres, dining rooms, restaurants, lounges, boutiques and illuminated or animated signs. Built for residential and commercial projects, it is covered by a 3-year warranty. The technical spec sheet (PDF) can be found in the Documentation tab.

Technical specifications
Model: LCPSLCODIM-12V-48W
Output: 12V DC constant voltage, ±0.5V
Rated current: 4A
Rated power: 48W
Input: 100-130V AC / 170-265V AC, 47-63 Hz
Efficiency: above 84% (typical)
Power factor: 0.70 or more
Dimming: forward-phase, magnetic low-voltage and triac dimmers, PWM output
Operating temperature: -40°C to +60°C
Rating: IP20, Class 2
Safety standards: UL8750, UL1310
Dimensions: 178 x 61 x 24 mm
Weight: 0.50 kg
Warranty: 3 years
