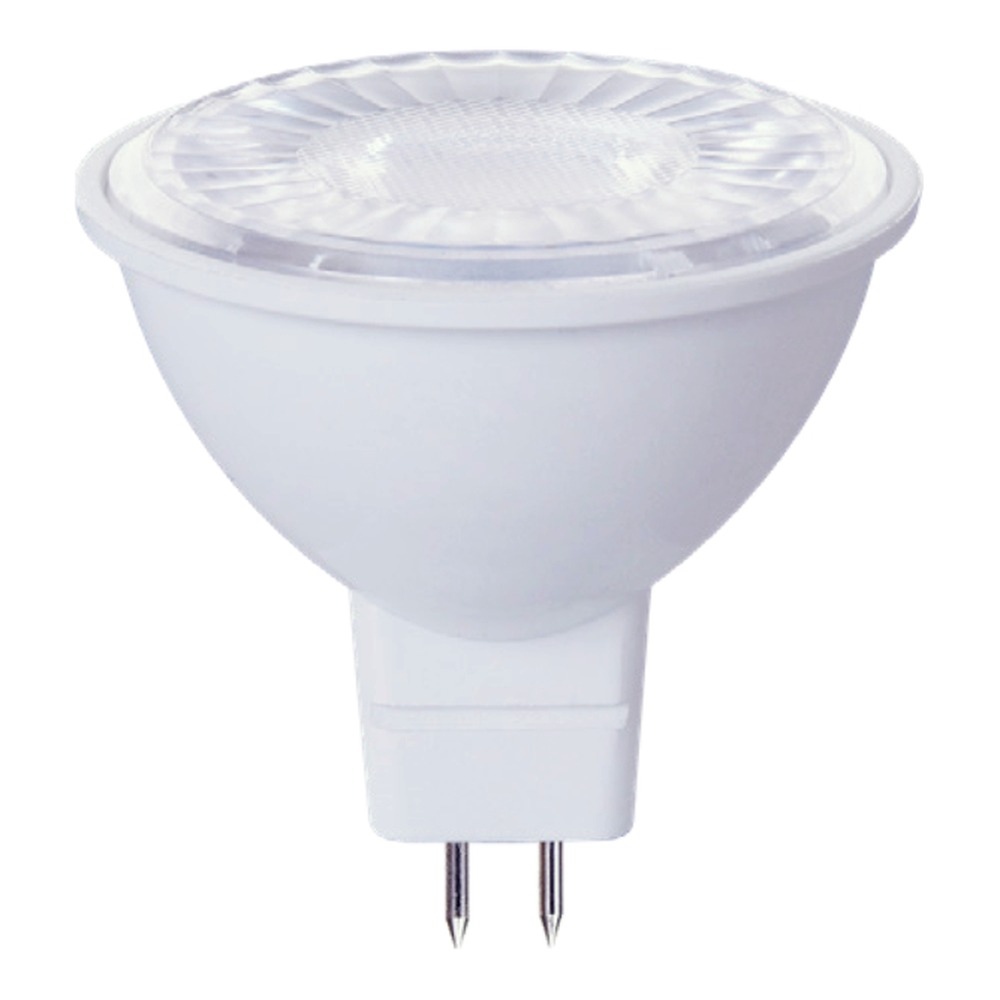

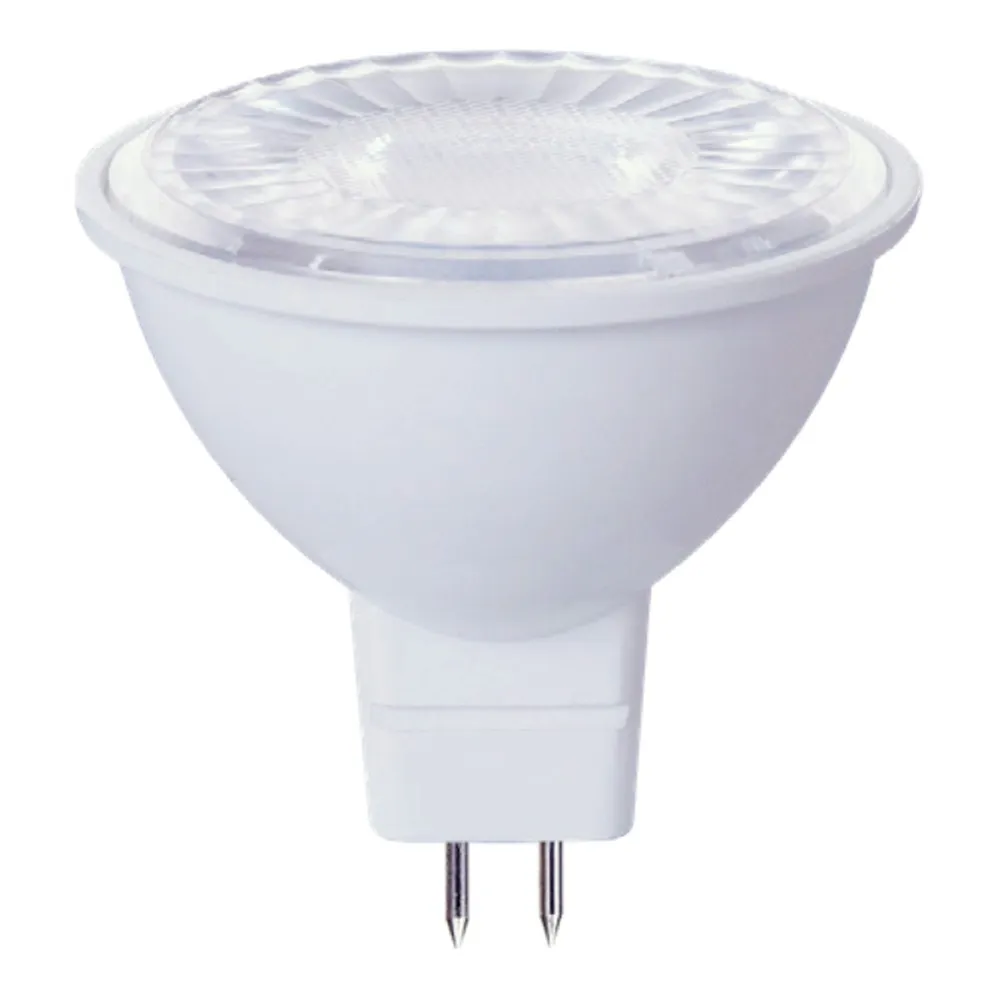

LED BULB MR16 7W

Name: LED BULB MR16 7W
Brand: LEDCO
SKU: LCB-MR16-7W-30K
Price: 11.97 CAD
Availability: InStock

SKU: LCB-MR16-7W-30K

Brand: LEDCO

Give your track heads and display spots the crisp, flattering beam they were designed for. This LED MR16 7W reflector lamp (SKU LCB-MR16-7W-30K) is the modern stand-in for the old halogen spot everybody still calls an MR16 bulb, a GU5.3 LED bulb or simply a low-voltage spotlight. It concentrates its output into a controlled cone of light instead of spraying it everywhere, so it is the natural pick for accent lighting, task lighting, retail displays and anywhere a beam needs to land exactly where you point it.

It draws just 7 W and replaces a 50 W incandescent spot while delivering 500 lumens through a 40° beam angle, with a centre beam candlepower of 1251. The 3000K colour temperature gives that warm, welcoming white that flatters wood, brick, skin tones and merchandise, and the CRI of 80 keeps fabrics, artwork and food looking true instead of washed out. It runs on 12 V with a GU5.3 base, it is dimmable with compatible dimmers, and it is rated for 25,000 hours of average life. The lamp is cULus and Energy Star listed, damp location approved, and it is covered by a 3-year limited warranty. Compact dimensions — 1.97 in maximum overall diameter, 1.8 in maximum overall length — let it drop straight into standard MR16 housings, and it operates from -20 ˚C to +45 ˚C.

Put it to work in kitchens, hallways, showrooms, restaurants, hotel lobbies, boutiques, museums and display cases, or in covered porches and three-season rooms where a damp location rating matters through a Canadian winter. It fits 12 V track heads, low-voltage recessed housings and display fixtures that take a GU5.3 socket — just confirm your existing transformer and dimmer are rated for LED loads, since an incompatible dimmer is the usual cause of flicker. One note: it is not suitable for totally enclosed luminaires. Light the rest of the house with matching lamps like the LED bulb A19 15W 4000K or the LED bulb B10 5W, and order your MR16 spots today.

Built for accent light, not compromise
This MR16 LED reflector lamp belongs to the VIVID Series (family reference VIV-MR16) and carries the ordering code VIV-MR16/T3/7W/30/WFL40/GU5.3/D. The T3 body with its GU5.3 bi-pin base keeps the same footprint as the halogen spot it replaces: 1.97 in maximum overall diameter and only 1.8 in maximum overall length, so it seats in existing low-voltage housings and track heads without shimming or modification. Efficient internal thermal management protects the diodes and helps hold brightness steady year after year, and the lamp reaches full output the instant you flip the switch — no warm-up, even in a cool garage, vestibule or unheated showroom.

Light quality you can see on the wall
Output is 500 lumens from 7 W, the equivalent of a 50 W incandescent spot, shaped into a 40° wide flood beam with 1251 centre beam candlepower. That combination gives a soft-edged pool of light that washes artwork, a stone fireplace or a merchandising table evenly instead of punching a hard hot spot. At 3000K, the white is warm and residential-friendly, and a CRI of 80 means reds stay red and wood grain keeps its depth — a real difference in restaurants, galleries and retail.

Technical specifications
Ordering code: VIV-MR16/T3/7W/30/WFL40/GU5.3/D
Wattage: 7 W
Replacement: 50 W incandescent
Base: GU5.3
Voltage: 12 V
Lumens: 500 lm
CCT: 3000K
CRI: 80
Beam angle: 40°
C.B.C.P.: 1251
Rated life: 25,000 hours
Dimmable: yes, with compatible dimmers
M.O.D.: 1.97 in
M.O.L.: 1.8 in
Operating temperature: -20 ˚C to +45 ˚C
Location: damp location approved
Listings: cULus, Energy Star
Warranty: 3-year limited

Installation, dimming and compatibility
Installation takes a minute: cut the power, let the old halogen cool, pull it out and seat the new 12 V MR16 bulb in the GU5.3 socket. Because this is a low-voltage lamp, it must be fed by a transformer or driver suited to LED loads; the same goes for the wall control, since the lamp is dimmable only with compatible dimmers — an incompatible one is the usual cause of flicker or a narrow dimming range. Do not install it in a totally enclosed luminaire, as trapped heat shortens the life of any LED. Its damp location approval allows use under a covered soffit or in a bathroom fixture built for damp service.

Where it earns its keep, and what's in the Documentation tab
Think kitchen island pendants and under-cabinet spots, hallway accents, jewellery and bakery display cases, hotel lobby track runs, gallery walls, boutique shelving and condo living rooms where a warm beam sets the tone at night. Contractors retrofitting an older low-voltage track system get the biggest win: same socket, same look, a fraction of the load. The technical PDF (LCB-MR16-7W-30K Spec Sheet) in the Documentation tab lists the full family table, dimensional drawing and listings for your submittals. Round out the project with lamps from the same house line, such as the LED bulb A19 9W 5CCT, the LED bulb G30 5W or the compact LED bulb G4 2.5W.
