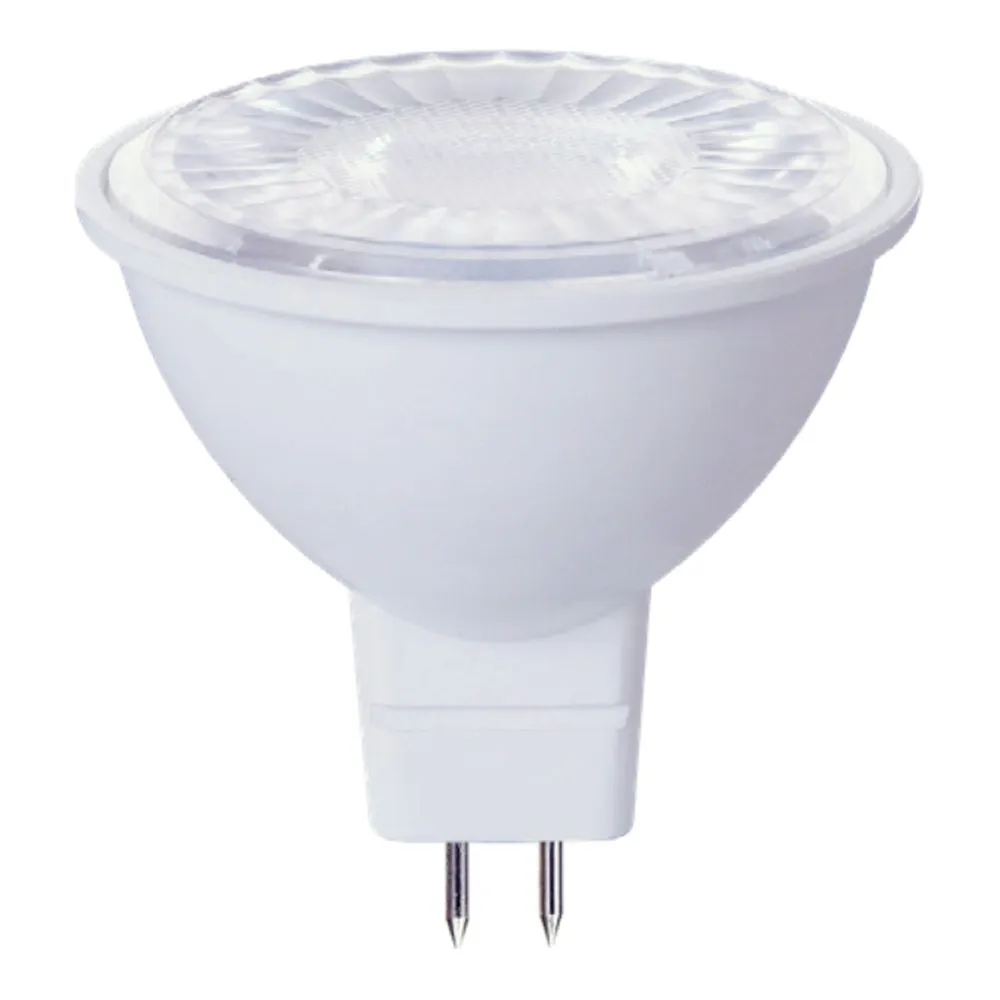

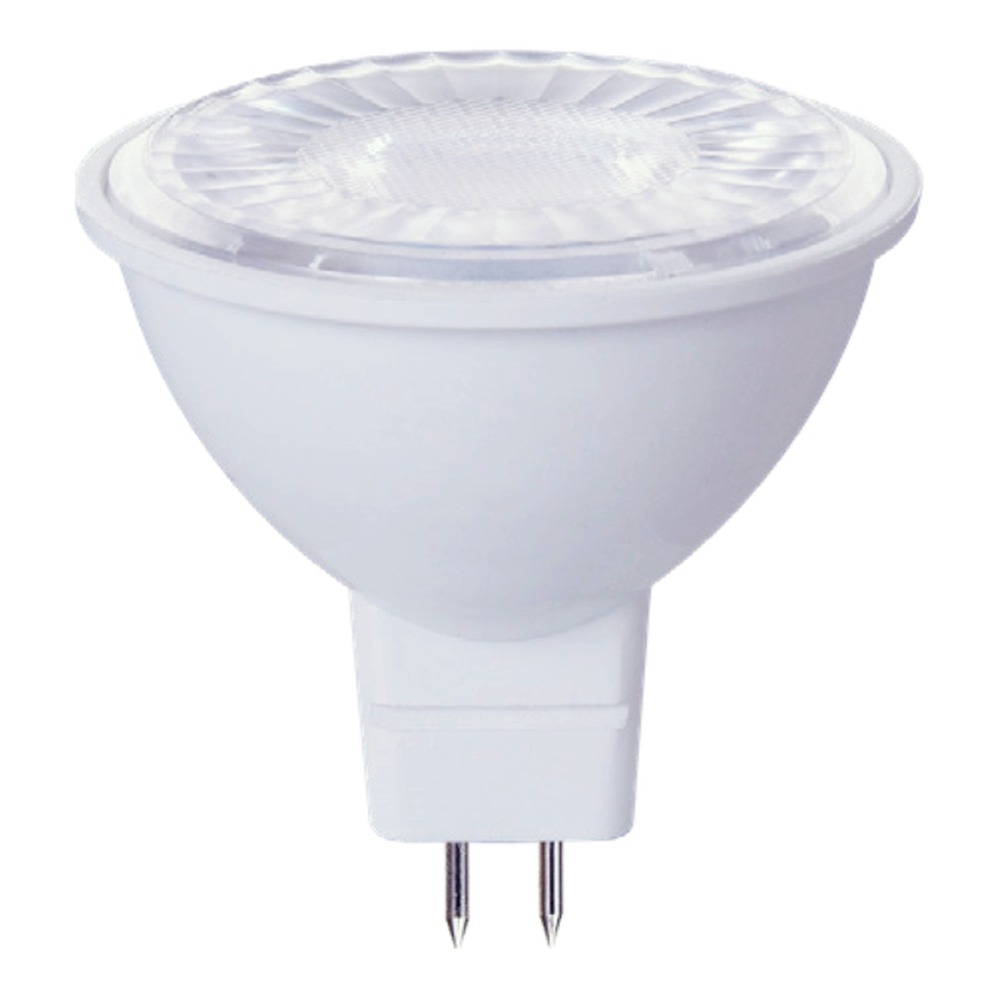

LED BULB MR16 7W - LCB-MR16-7W-40K

Built for accent work
This MR16 LED lamp belongs to the VIVID Series of LED MR16 bulbs and is engineered around one job: putting a precise pool of light on the thing you want people to notice. The reflector body manages heat efficiently so the internal driver components stay protected through years of daily switching, and because LEDs convert far more of their energy into usable light instead of heat, fixtures and trims stay noticeably cooler than they did with halogen reflectors. With a maximum overall diameter of 1.97 in. and a maximum overall length of 1.8 in., it slips into existing MR16 housings without fighting the trim or the socket ring.

Light quality you can trust
At 4000K, the beam reads as a clean neutral white — brighter and more modern than warm halogen, without tipping into a cold blue. That neutrality is why it works so well over prep counters, in display cases and in workshops. A CRI of 80+ means colours hold their character: wood grain looks like wood, produce looks fresh, and merchandise looks like it does in daylight. The 40° beam angle is a wide flood, generous enough to cover a full artwork or a stretch of countertop, with a centre beam candlepower of 1251 to keep the middle of the beam punchy.

Technical specifications
Ordering code: 1752402
Model number: VIV-MR16/T3/7W/40/WFL40/GU5.3/D
Wattage: 7W
Replacement: 50W incandescent
Base: GU5.3
Voltage: 12V
Lumens: 500 lm
CCT: 4000K
CRI: 80
Beam angle: 40°
C.B.C.P.: 1251
Rated life: 25,000 hours
Dimmable: yes, with compatible dimmers
M.O.D.: 1.97 in.
M.O.L.: 1.8 in.
Location: damp location approved
Listing: cULus
Operating temperature: -20 ˚C to +45 ˚C
Warranty: 3-year limited
Case quantity: 100

Electrical, dimming and installation
This is a 12V low-voltage lamp, so it must be fed by a working MR16 transformer — magnetic or electronic — and not wired to line voltage. Always cut power at the breaker before changing lamps, and handle the lens with a clean cloth instead of bare fingers. The lamp is dimmable with compatible dimmers; check dimmer and transformer compatibility before you commit to a large order, and re-lamp every fixture on the same circuit at once so the colour and the dimming curve stay consistent from head to head. One important limit: it is not suitable for use in totally enclosed luminaires, which need airflow around the body to reach the full 25,000-hour rated life.

Where it earns its keep, and documentation
Think jewellery and clothing displays, wine shelves behind a bar, a hotel reception wall, a gallery hanging rail, or a homeowner's kitchen island and stone fireplace. In a house, a row of MR16 heads at 4000K over a work zone makes chopping, reading recipes and finishing drywall far easier on the eyes. In a covered entry or a three-season porch, the damp location approval gives you room to work with Canadian humidity. Note that Energy Star listing applies only to specific models in this family, and not to this 4000K GU5.3 version. The full technical spec sheet for SKU LCB-MR16-7W-40K is available in the Documentation tab, with the complete ordering table and dimensional drawing for spec writers and contractors. Rounding out a whole-project bulb list? Have a look at the LED bulb A19 9W 5CCT and the LED bulb G30 5W.
