A clean white line with a solid backbone
Behind its discreet white finish, the 94 Series is a real structural linear lighting profile. Twin mounting channels make it compatible with a wide range of installation accessories, and the ordering guide on the spec sheet shows clip-in brackets, 1-side, 2-side and 90-degree surface brackets, swivel wall brackets, swivel sign arms with a 6-inch or 18-inch offset, and a suspension kit with 15 ft aircraft cable, with white versions listed for most of them. 90° and 135° corners (6 x 6 in) allow complex spatial configurations; joiners are ordered separately.
Even light, managed heat
The rugged 6063-T5 aluminum alloy withstands abuse in demanding applications and extreme weather, and it increases heat dissipation for an extended lifetime of the LED source. Inside, the LED heat sink insert can be placed in 3 position slots to set the needed beam angle, whether you want light falling on a counter or aimed at a display. Lens options listed on the spec sheet include clear and opal lenses, and a high-efficiency reflector option is also offered; the profile is designed to give uniform light without hot spots.
Installation and electrical details
The 33 mm (1.25 in) wide mounting area accepts multiple or oversized LED sources for extra power, while guides keep 10 mm (3/8-inch) wide LED engines in line. The ordering guide shows three power approaches: a remote driver canopy plate, an integrated driver in the canopy, or an integrated driver and suspension kit, the last one only available with the suspension bracket. Sketch the layout of runs, corners and drivers first, then let a qualified electrician handle the permanent connections.
Technical specifications

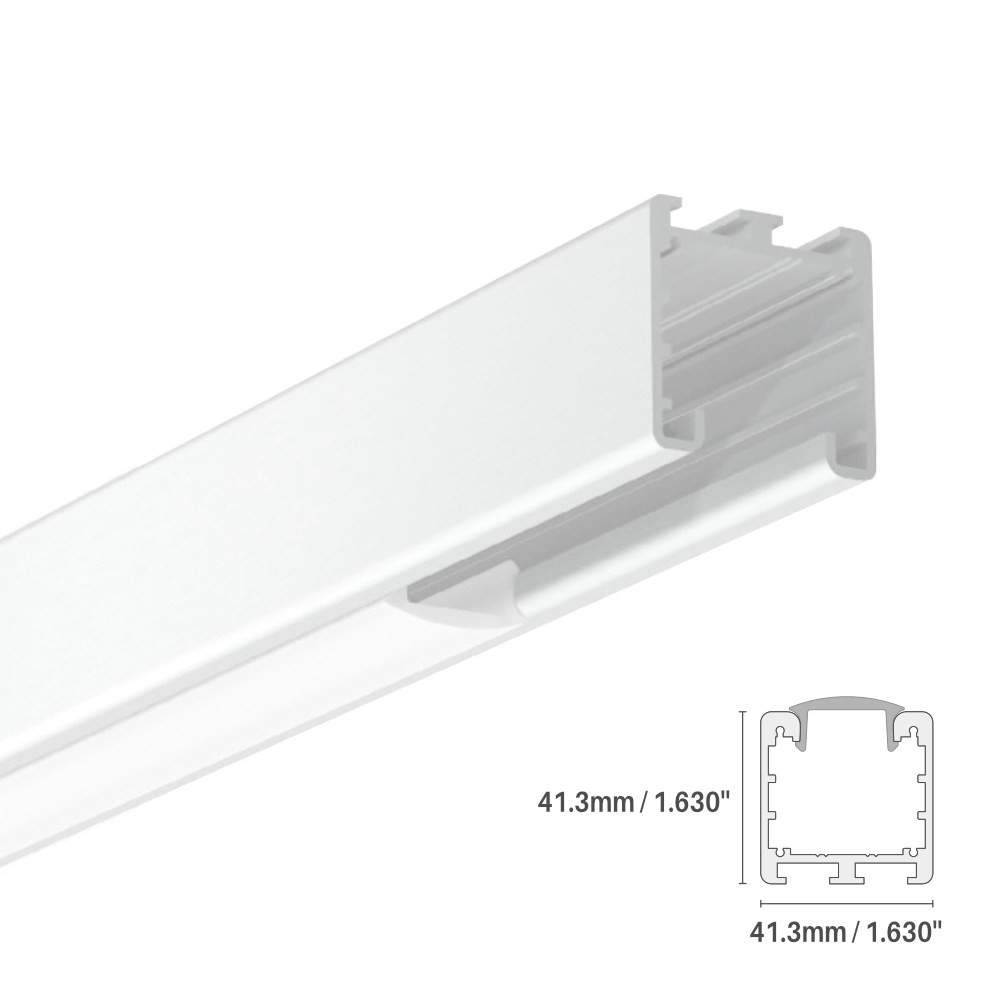

Model: LCPROF-94-8FT-WH
Series: 94 aluminum profile
Finish: white
Length: 8 ft
Profile dimension: 41.3 mm (1.630 in)
Material: 6063-T5 aluminum alloy
LED mounting area: 33 mm (1.25 in) wide
LED engine guides: 10 mm (3/8-inch) wide
Beam angle setting: 3 insert positions
Outdoor installation: suitable per spec sheet
Warranty: 3 years
Where it works best
Use a white LED profile above a kitchen island, along the top of a reception desk, suspended over workstations in an open-plan office, or on swivel sign arms lighting a storefront sign on a white facade. The white finish disappears against light ceilings and walls, so the line of light takes centre stage. The full spec sheet, with the technical drawing and the ordering guide, is in the Documentation tab of this page.
