LED ALUMINUM PROFILE #94 - LCPROF-94-16FT-WH

Name: LED ALUMINUM PROFILE #94 - LCPROF-94-16FT-WH
Brand: LEDCO
SKU: LCPROF-94-16FT-WH
Price: 586.97 CAD
Availability: InStock

SKU: LCPROF-94-16FT-WH

Brand: LEDCO

Clean, bright and discreet, the white LED aluminum profile #94 (LCPROF-94-16FT-WH) blends into white ceilings and walls while delivering serious performance. This 16-foot aluminum extrusion has a 41.3 mm (1.630 in) square cross-section and twin mounting channels, so you can mount it on a surface, on swivel arms or suspended. Also searched as a white LED aluminum channel, an aluminum profile for LED strip lighting or an extruded aluminum linear light body, it is ideal for offices, clinics, galleries, classrooms and bright modern homes. The alloy is also suitable for outdoor installation, under a canopy or along a façade.

Its rugged build in 6063-T5 aluminum alloy withstands abuse in demanding applications and extreme weather, while the alloy increases heat dissipation for an extended lifetime of the LED source. A 33 mm (1.25 in) wide area accepts multiple or oversized LED sources for extra power, application guides suit 10 mm (3/8 in) LED strips, and 3 position slots for the heat-sink insert let you set the needed beam angle. The profile is designed for uniform light without hot spots, its white finish keeps the fixture visually light, and it comes with a 3-year warranty.

From an art gallery in Saint John to a dental clinic in Laval or a Scandinavian-style kitchen in Victoria, the white #94 fits right in as white linear lighting. Prefer another colour? See the aluminum 16 ft profile #94 or the black 16 ft profile #94. For shorter runs, the white 8 ft profile #94 uses the same design. Order your white LED profile today and let the light, not the fixture, take centre stage.

White, sturdy and discreet
Against a white ceiling, a white profile almost disappears, leaving only a crisp line of light. The 94 series is a sturdy aluminum profile with an understated elegance; its twin mounting channels allow a wide range of installation options, on swivel arms, on a surface or suspended, and with corner joiners it can be built into complex spatial configurations. The LCPROF-94-16FT-WH is the white version (94WH on the ordering guide) in a 16 ft length, perfect for a white suspended LED light or a surface-mounted linear light.

Designed for light output and longevity
The 6063-T5 aluminum alloy increases heat dissipation for an extended lifetime of the LED source and is suitable for outdoor installation. A 33 mm (1.25 in) wide LED area accepts multiple or oversized LED sources for extra power, and application guides help place 10 mm (3/8 in) wide LED strips. With 3 position slots for the LED heat-sink insert, you can set the needed beam angle, and the design gives uniform light without hot spots, ideal over desks and work surfaces.

Mounting and accessories in white
Its mounting channels make the #94 compatible with a wide range of installation accessories. The spec sheet lists clip-in brackets, surface brackets (1-side, 2-side and 90°), swivel wall brackets, swivel sign arms with 6 in or 18 in offset and a suspension kit with 15 ft aircraft cable, most of them also offered in white, as well as canopies for a remote or integrated driver. Corner joiners at 90° (including a white version) and 135°, plus a straight joiner, are ordered separately. Lens options include clear, opal and focus lenses, with a high-efficiency reflector option.

Technical specifications
SKU: LCPROF-94-16FT-WH
Series: 94
Colour: white (94WH)
Length: 16 ft

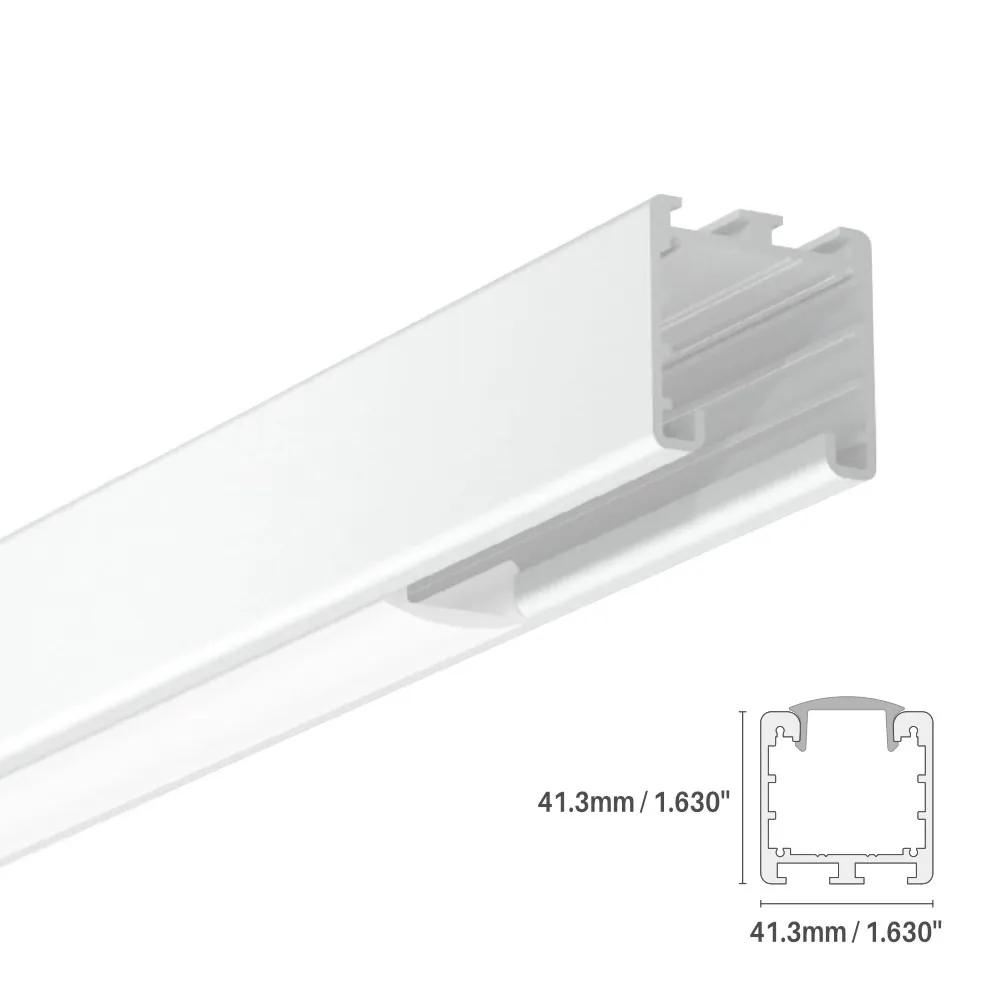

Cross-section (drawing): 41.3 x 41.3 mm (1.630 x 1.630 in)
LED area: 33 mm (1.25 in) wide
Application guides: 10 mm (3/8 in) LED strips
Beam setting: 3 position slots for the heat-sink insert
Material: 6063-T5 aluminum alloy, suitable for outdoor installation
Warranty: 3 years

Ideas for the white #94
Suspend it over workstations in an open-plan office, run it along a gallery wall to light artwork, install it in a classroom or a clinic corridor, or mount it on white swivel arms to light a sign on a light-coloured façade. Across Canada, a white aluminum profile is a smart choice when the fixture should blend into bright interiors, in commercial and residential projects. The spec sheet and ordering guide are in the Documentation tab. Need a matching shorter piece? See the white 8 ft profile #94.
