LED ALUMINUM PROFILE #94

Name: LED ALUMINUM PROFILE #94
Brand: LEDCO
SKU: LCPROF-94-16FT
Price: 327.97 CAD
Availability: InStock

SKU: LCPROF-94-16FT

Brand: LEDCO

When a project calls for more than a slim strip channel, the LED aluminum profile #94 steps up. This sturdy, 16-foot aluminum extrusion (LCPROF-94-16FT) has a 41.3 mm (1.630 in) square cross-section and twin mounting channels, so it can be installed on a surface, on swivel arms or suspended from the ceiling. Also searched as an LED aluminum channel, an aluminum profile for LED strip lighting or an extruded aluminum light profile, it is made for signage, architectural lines, offices, shops and outdoor projects.

Its rugged build in 6063-T5 aluminum alloy withstands abuse in demanding applications and extreme weather, and the alloy increases heat dissipation for an extended lifetime of the LED source. Inside, a 33 mm (1.25 in) wide area accepts multiple or oversized LED sources for extra power, with application guides for 10 mm (3/8 in) wide LED strips, and 3 position slots for the LED heat-sink insert let you set the beam angle you need. The profile is designed to give uniform light without hot spots and is backed by a 3-year warranty. LCPROF-94-16FT is the Alu (aluminum) version.

Across Canada, from a storefront sign in Winnipeg to a suspended office light line in Toronto or a patio canopy in Kelowna, the #94 is made for big jobs, from LED sign lighting to outdoor linear lighting. Pair it with the LED strip or LED source that delivers the brightness your project needs. Need a different colour? Choose the black 16 ft profile #94 or the white 16 ft profile #94; for shorter runs, see the 8 ft LED aluminum profile #94. Build your next linear LED project on a solid base.

A sturdy profile for demanding projects
The 94 series is a sturdy aluminum profile with a rugged build and an understated elegance: a 41.3 mm square aluminum profile. Its twin mounting channels allow a wide range of installation options, whether on swivel arms, on a surface or suspended, and with corner joiners it can be built into complex spatial configurations. The LCPROF-94-16FT is the Alu version in a 16 ft length, ready to become a suspended linear light, a sign light or a long architectural line.

Built for power and long life
The profile is made of 6063-T5 aluminum alloy, which increases heat dissipation for an extended lifetime of the LED source and is suitable for outdoor installation. Its 33 mm (1.25 in) wide LED area accepts multiple or oversized LED sources for extra power, while application guides help position 10 mm (3/8 in) wide LED strips. Three position slots for the LED heat-sink insert let you set the needed beam angle, and the design gives uniform light without hot spots.

Mounting options and accessories
Thanks to its mounting channels, the #94 is compatible with a wide range of installation accessories. The spec sheet in the Documentation tab details the 94 system: clip-in brackets, surface brackets (1-side, 2-side and 90°), swivel wall brackets, swivel sign arms with 6 in or 18 in offset, and a suspension kit with 15 ft aircraft cable, plus canopies for a remote or integrated driver. Corner joiners at 90° and 135° and a straight joiner are ordered separately. Lens choices on the sheet range from clear and opal to focus lenses, and a high-efficiency reflector option is also listed.

Technical specifications
SKU: LCPROF-94-16FT
Series: 94
Colour: Alu (aluminum)
Length: 16 ft

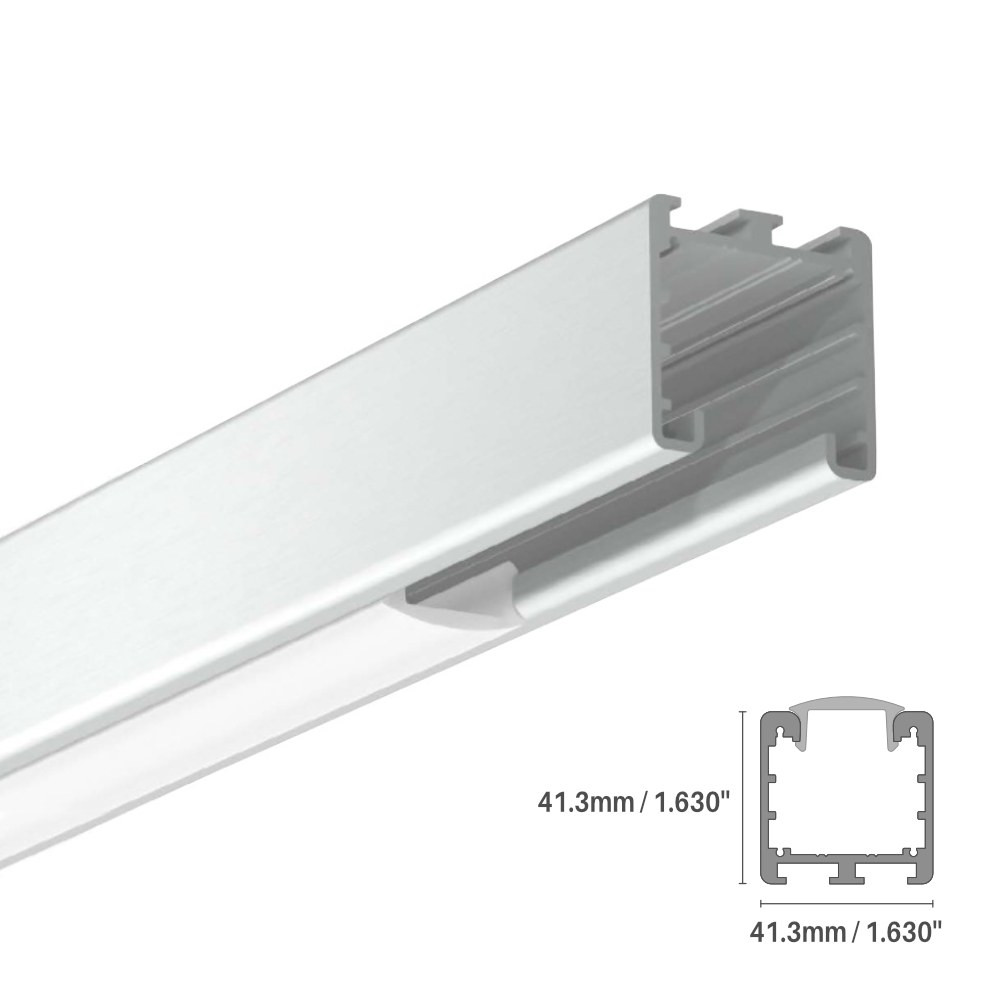

Cross-section (drawing): 41.3 x 41.3 mm (1.630 x 1.630 in)
LED area: 33 mm (1.25 in) wide
Application guides: 10 mm (3/8 in) LED strips
Beam setting: 3 position slots for the heat-sink insert
Material: 6063-T5 aluminum alloy, suitable for outdoor installation
Warranty: 3 years

Where the #94 shines
Hang it from aircraft cable above open-plan offices, boardrooms or checkout counters; mount it on a swivel sign arm to light a storefront sign; run it on a surface along a warehouse aisle or a building façade. Its understated elegance suits commercial lighting as much as modern homes with high ceilings, anywhere in Canada, making it a go-to suspended LED profile. The spec sheet in the Documentation tab has the full ordering guide. For a darker look, see the black 16 ft profile #94.
