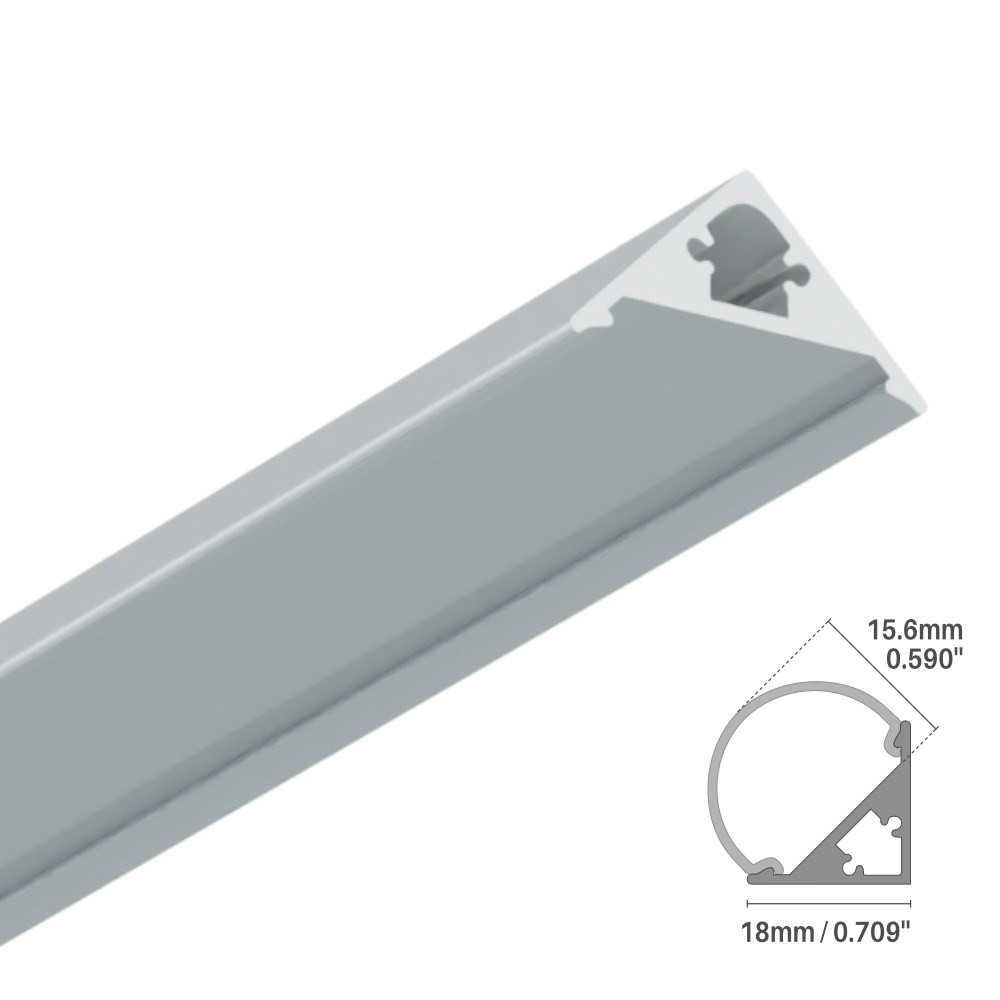

LED ALUMINUM PROFILE #90 - LCPROF-90-16FT-LENS-FROS

Name: LED ALUMINUM PROFILE #90 - LCPROF-90-16FT-LENS-FROS
Brand: LEDCO
SKU: LCPROF-90-16FT-LENS-FROS
Price: 110.97 CAD
Availability: InStock

SKU: LCPROF-90-16FT-LENS-FROS

Brand: LEDCO

Looking for a clean way to light a corner over a long distance? This 16-foot aluminum profile for LED strip lighting from the 90 series comes with a frosted lens (LCPROF-90-16FT-LENS-FROS) and turns an ordinary LED strip into a finished, professional fixture. Often called an LED aluminum channel, an extruded aluminum corner profile or simply a profile for lighting, it fits in the angle between two surfaces and directs the light at 45°. Think long kitchen runs, retail shelving, display cases, reception counters and cove corners in residential and commercial projects.

The body is made of 6063-T5 aluminum alloy, chosen to increase heat dissipation so your LED strip runs cooler and lasts longer. The frosted lens softens the light, and the whole profile is designed to give a uniform light without hot spots. On the technical drawing, the cross-section measures just 15.6 mm (0.614 in) by 17.5 mm (0.689 in), small enough to stay discreet, and it is designed for LED strips 10 mm (3/8 in) wide or less. A long lens-fitting system with an enhanced mechanical fit keeps the lens secure, and the 90 series carries a 3-year warranty.

Across Canada, from a bakery counter in Québec City to a furniture boutique in Calgary, the 16 ft length lets you cover long corners with fewer joints. Prefer an opaque lens? See the 16 ft profile with opaque lens, or the black 90 series profile with frosted lens for darker décors. Need a shorter piece? The 8 ft profile with frosted lens uses the same design. Choose your LED profile today and finish your strip lighting like a pro.

Sold separately
To complete the installation, add:
End cap: LCENDCAP-STAND-90, LCENDCAP-STAND-90-BK, LCENDCAP-STAND-90-H, LCENDCAP-STAND-90-H-BK

Why a 45° corner profile?
Most channels point the light straight down or straight out. The 90 series is different: installed in a corner, this LED corner channel sends a beam oriented at 45 degrees toward the area you want to showcase. That is why it excels at maximizing the appeal of products in point-of-purchase (POP) stands while keeping a minimalist style. The LCPROF-90-16FT-LENS-FROS version comes in a 16 ft length with a frosted lens, ready for long, continuous runs in kitchens, shops and offices.

Built to protect your LED strip
Heat is the enemy of any LED. This aluminum extrusion is made of 6063-T5 aluminum alloy that increases heat dissipation, and its use increases the lifetime of your LED strip. The long lens-fitting system, with its enhanced mechanical fit, keeps the frosted lens firmly seated for long-term durability. The result is uniform light without hot spots and a tidy, professional finish.

Planning your installation
Choose an LED strip 10 mm (3/8 in) wide or less, as recommended by the application guide. Mount the profile in the corner, lay the strip in the channel and fit the frosted lens. The series spec sheet shows a 45° corner bracket and double-face mounting tape as mounting options, plus end caps with or without a hole (or one of each) for a clean wire exit. Before cutting the 16 ft profile, dry-fit it in place and mark your cut; a fine-tooth blade gives the cleanest edge on the aluminum LED channel and lens. Add a compatible LED strip and power supply, and you are ready.

Technical specifications
SKU: LCPROF-90-16FT-LENS-FROS
Profile type: 90 series corner profile
Length: 16 ft
Lens: frosted
Light direction: beam oriented at 45°
Dimensions (drawing): 15.6 mm (0.614 in) and 17.5 mm (0.689 in)
Compatible strip width: 10 mm (3/8 in) or less
Alloy: 6063-T5 aluminum
Warranty: 3 years

Where to use it
Picture a frosted line of light in the corner of a glass showcase, along the top of a bookcase, inside a pantry or where kitchen cabinets meet the backsplash. It also shines in trade show booths, reception desks, walk-in closets and home offices. Contractors and designers across Canada choose aluminum profiles like this one for residential and commercial projects. The spec sheet, with the technical drawing and ordering options, is available in the Documentation tab. For shorter corners, choose the 8 ft profile with frosted lens.
